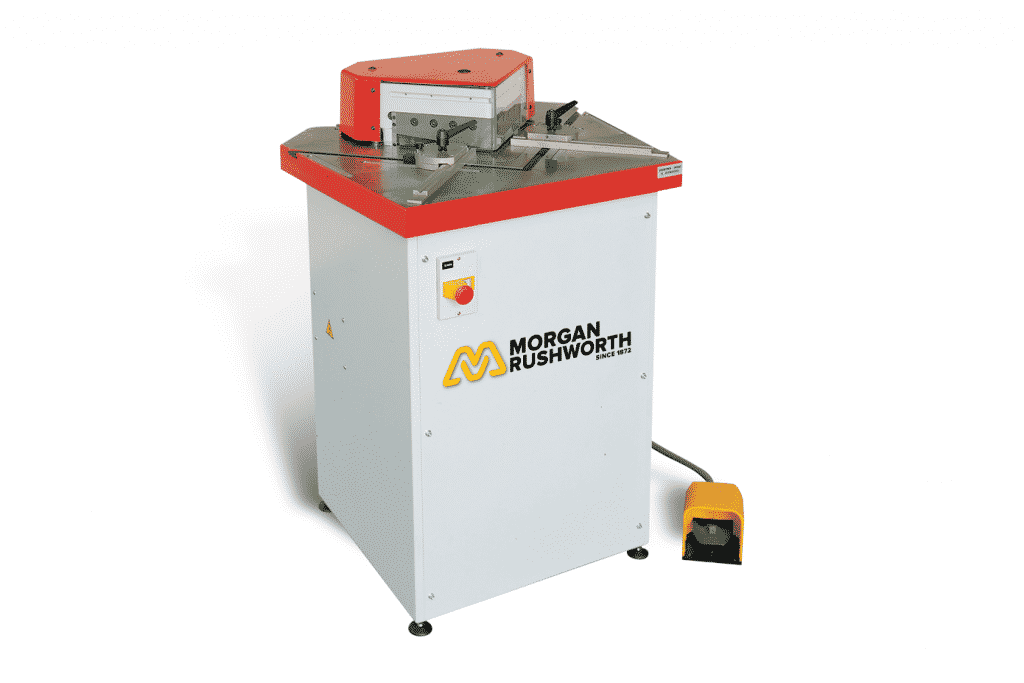

Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine
The HFA hydraulic corner notching machines have a cutting capacity of 220mm x 6mm or 220mm x 8mm at a fixed angle of 90 Degrees. With a rigid head and GS500 cast iron workbench, these corner notchers are designed for a long working life.
This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.
VIEW AlTERNATIVES![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image](https://selmach.com/wp-content/uploads/2015/01/HFA-220.6.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image](https://selmach.com/wp-content/uploads/2015/01/HFA-220.6-150x150.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 2](https://selmach.com/wp-content/uploads/2015/01/Close-Up-Dont-put-a-caption-on-this-one.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 2](https://selmach.com/wp-content/uploads/2015/01/Close-Up-Dont-put-a-caption-on-this-one-150x150.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 3](https://selmach.com/wp-content/uploads/2015/01/Goniometric-Squares.png)

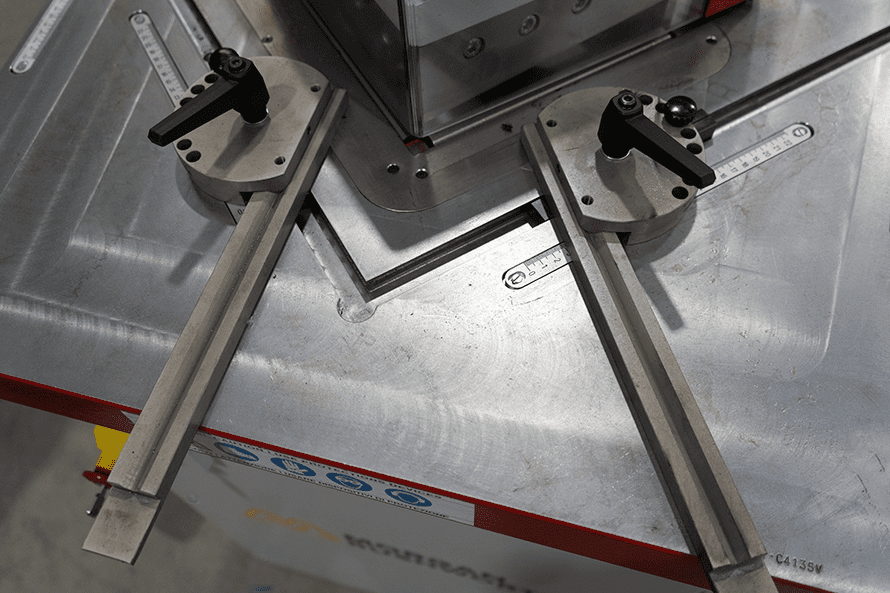

Goniometric Squares
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 3](https://selmach.com/wp-content/uploads/2015/01/Goniometric-Squares-150x150.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 4](https://selmach.com/wp-content/uploads/2015/01/Waste-Chute.png)

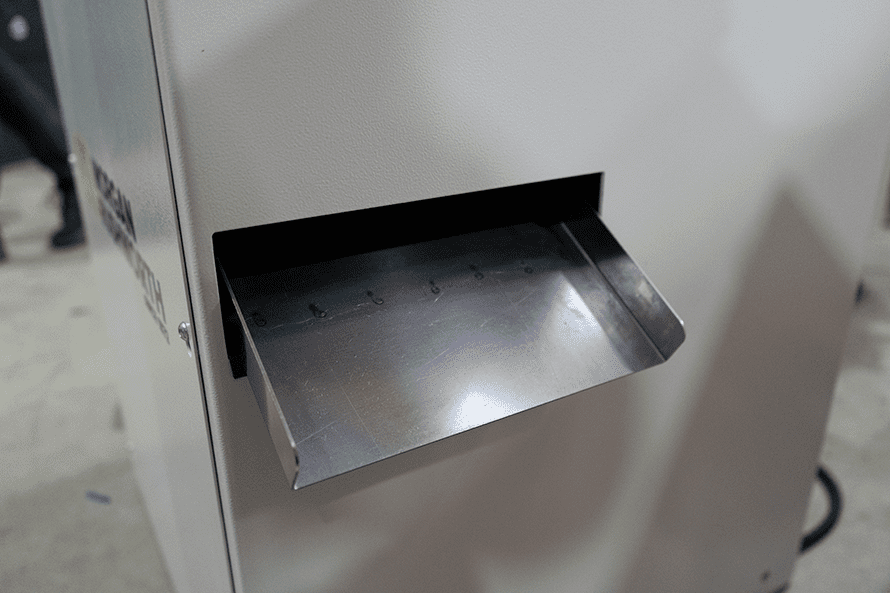

Waste Chute
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 4](https://selmach.com/wp-content/uploads/2015/01/Waste-Chute-150x150.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 5](https://selmach.com/wp-content/uploads/2015/01/Heavy-Duty-Blades.png)
Heavy-Duty Blades
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 5](https://selmach.com/wp-content/uploads/2015/01/Heavy-Duty-Blades-150x150.png)
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 6](https://selmach.com/wp-content/uploads/2015/01/Foot-Pedal-Operation.png)
Foot Pedal Operation
![Morgan Rushworth HFA (220 x 6) Hydraulic Corner Notching Machine image 6](https://selmach.com/wp-content/uploads/2015/01/Foot-Pedal-Operation-150x150.png)
MODEL | STOCKCODE | BLADE ANGLE | CUTTING LENGTH | CUTTING CAPACITY | CUTTING CAPACITY | MOTOR | STROKES PER MINUTE | WORK TABLE | LENGTH | WIDTH | HEIGHT | WEIGHT |
mm | mm | M/Steel mm | S/Steel mm | Kw | mm | mm | mm | mm | kg | |||
HFA 220/6 | M4000 | 90° | 220 | 6 | 4 | 3 | 35 | 650 x 650 | 650 | 750 | 1050 | 540 |
HFA 220/8 | 90° | 220 | 8 | 5 | 3 | 40 | 650 x 780 | 700 | 750 | 1100 | 650 |
Features
- Rigid head and GS500 cast iron workbench with conical grooves for optimal adherance of the squares.
- Cut can start from top of blades or from the base.
- Automatic adjustment of gap between blades from 1 to 6mm/8mm (patented).
- Set of goniometric squares.
Options
- Stainless steel cutting blades.
