MACC TA 400 Aluminium Circular Saw 415V

MACC TA 400 Web

The Macc TA400 Circular Saws are designed specifically to cut aluminium and other non-ferrous materials with an extremely fast cutting speed of 3000 RPM.

Teflon jaws prevent marking of material when clamping and the versatile double clamping design allows rapid clamping of profile of any size within capacity. The machine not only mitres left and right but also has the facility to compound mitre to the left.

MACC TA 400 Web
MACC TA 400 WebMACC TA 400 Web

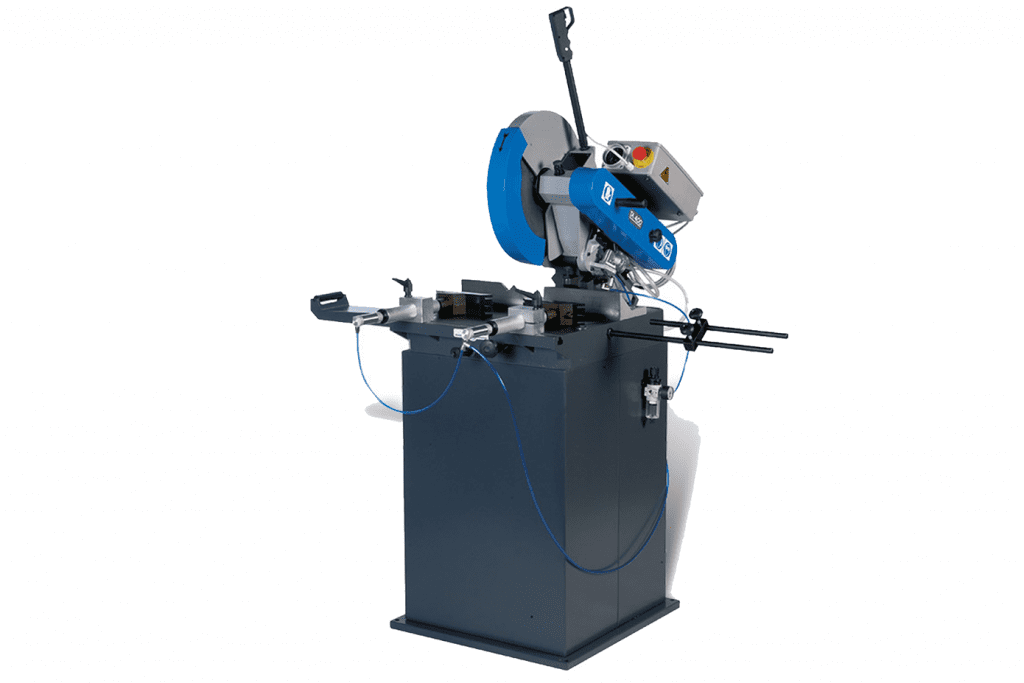

Front view MACC-TA400P-Alumunium-Circular-Saw
With Optional Base and Pneumatic Vice
Front view MACC-TA400P-Alumunium-Circular-Saw

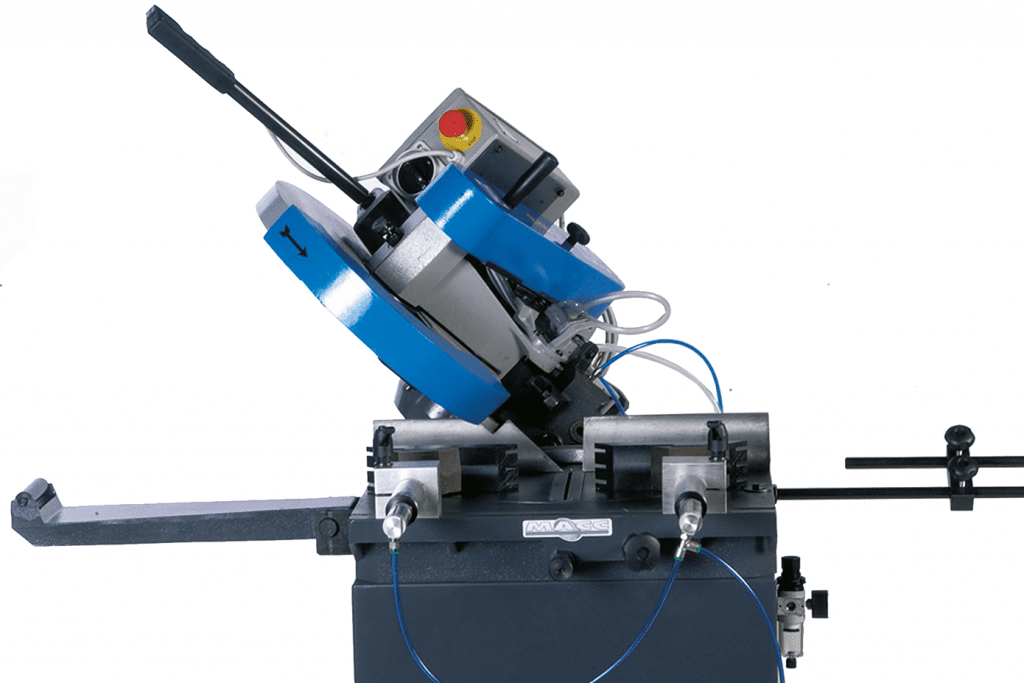

Detail of the MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Detail of the MACC-TA-Aluminium-Circular-Saw

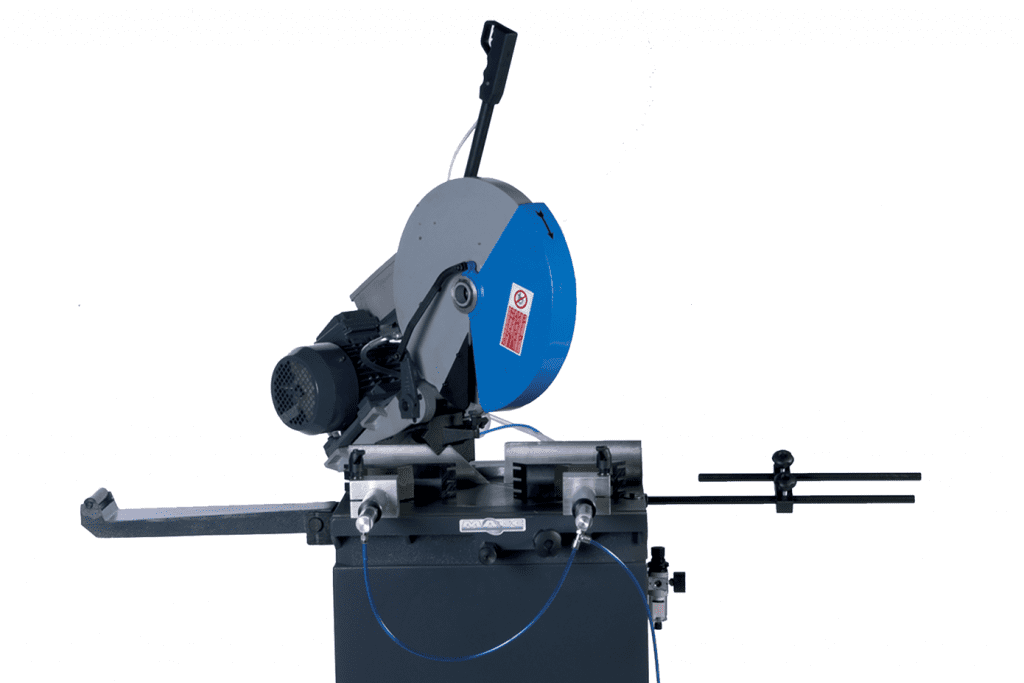

Left side MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Left side MACC-TA-Aluminium-Circular-Saw

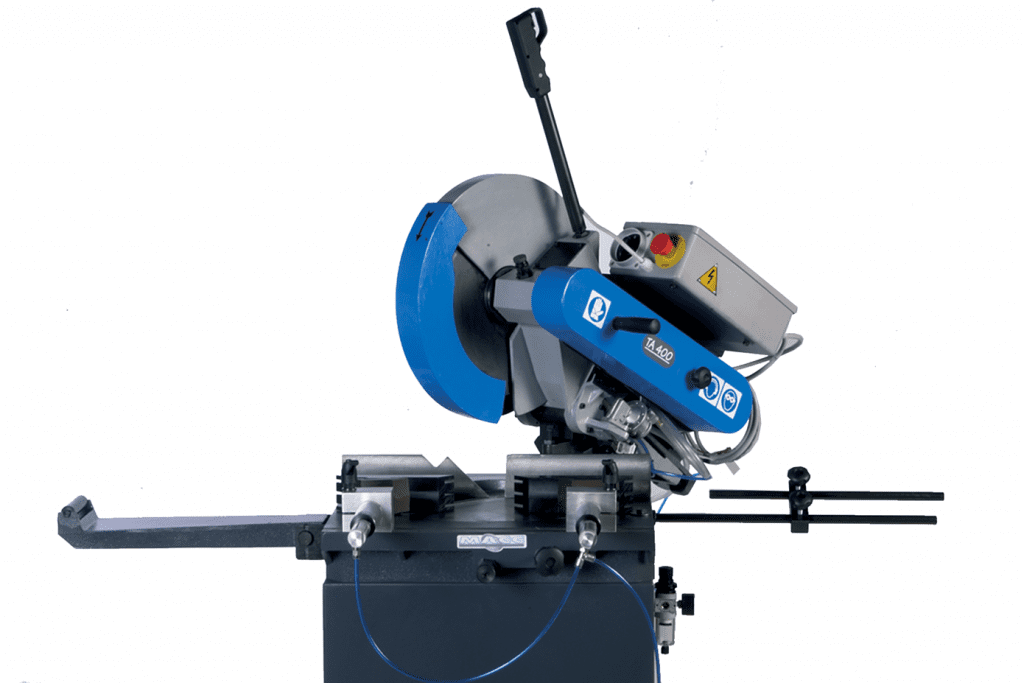

Right side MACC-TA-Aluminium-Circular-Saw
With Optional Base and Pneumatic Vice
Right side MACC-TA-Aluminium-Circular-Saw
MODEL   TA 400
Capacities  90° 45°
◯ Solid mm 60 60
◯ Tube mm 140 130
□ Box Section mm 110 100
▭ Widest Cut mm 180 x 100 150 x 100
Blade Diameter mm 400
Blade Bore mm 32
Blade Speeds rpm 3000
Motor kW 2.2
Operation Manual Instant Pull Down
Vice Width mm 180
Vice Operation Manual
Length mm 900
Width mm 1000
Height mm 1500
Weight Kg 185

Features

  • Manual shear for cutting solid or section bars made of aluminium or light alloys
  • 24 V low voltage installation with hold-to-run head control knob
  • Knob with small stake ensuring fast positioning of the head to 0° and 45° right and left
  • Movable head 45° right and left
  • Inclinable head 45° left
  • Blade holder shaft on bearings
  • Movable plate assembled on spheres
  • Two manual vices
  • Teflon jaws to fix the pieces
  • Bar support arm
  • Bar stop
  • Service tools
  • Instructions manual and spare parts

Options

  • Pedal controlled pneumatic vice
  • Single-phase motor
  • Pedestal Base

Frequently Asked Questions

What materials is the MACC TA400 aluminium circular saw designed to cut?

The MACC TA400 is a manual pull-down circular saw designed for aluminium and other non-ferrous or light-alloy profiles. It is suited to fabrication work where accurate straight and angled cuts are needed on tubes, sections and suitable solid material.

What is the MACC TA400 cutting capacity at 90 degrees?

At 90°, Selmach lists capacities of 140mm round tube, 110mm box section and a widest cut of 180 x 100mm. The published maximum solid-round capacity is 60mm. Always check the material shape and actual section dimensions against the machine capacity table.

How much can the MACC TA400 cut at a 45-degree mitre?

At 45°, the published capacities are 130mm round tube, 100mm box section and a widest cut of 150 x 100mm. The listed solid-round capacity remains 60mm. Mitre capacity differs from straight-cut capacity, so check the intended profile before purchase.

Can the MACC TA400 make compound mitre cuts?

Yes. The cutting head mitres up to 45° to the left and right, and it can also incline up to 45° to the left for compound-mitre work. This is useful when cutting aluminium profiles for frames and other angled assemblies.

What blade and cutting speed does the MACC TA400 use?

The MACC TA400 is specified with a 400mm-diameter blade with a 32mm bore, running at 3,000rpm from a 2.2kW motor. Blade type and tooth configuration should be selected for the aluminium alloy, profile wall thickness and required finish.

How does the MACC TA400 hold aluminium without marking it?

The standard machine has two manually operated vices with Teflon jaws intended to reduce marking on the workpiece. A pedal-controlled pneumatic vice is listed as an option for users who want quicker clamping during repeated cuts.

What routine maintenance does the MACC TA400 need?

Follow the manufacturer’s maintenance instructions, keep the work area and clamping faces clear of swarf, and inspect the blade, guard, vices and moving parts before use. Use a suitable blade and cutting method for the material; arrange servicing if cutting quality or machine operation changes.

Can Selmach provide servicing or a Service Plan for the MACC TA400?

Selmach offers machinery servicing and Service Plan support. Ask the Selmach service team to confirm the appropriate coverage, inspection schedule and any available parts support for your MACC TA400 and how often it is used.
