Bauer S DGSA Semi Automatic Double Mitre Bandsaw 415v

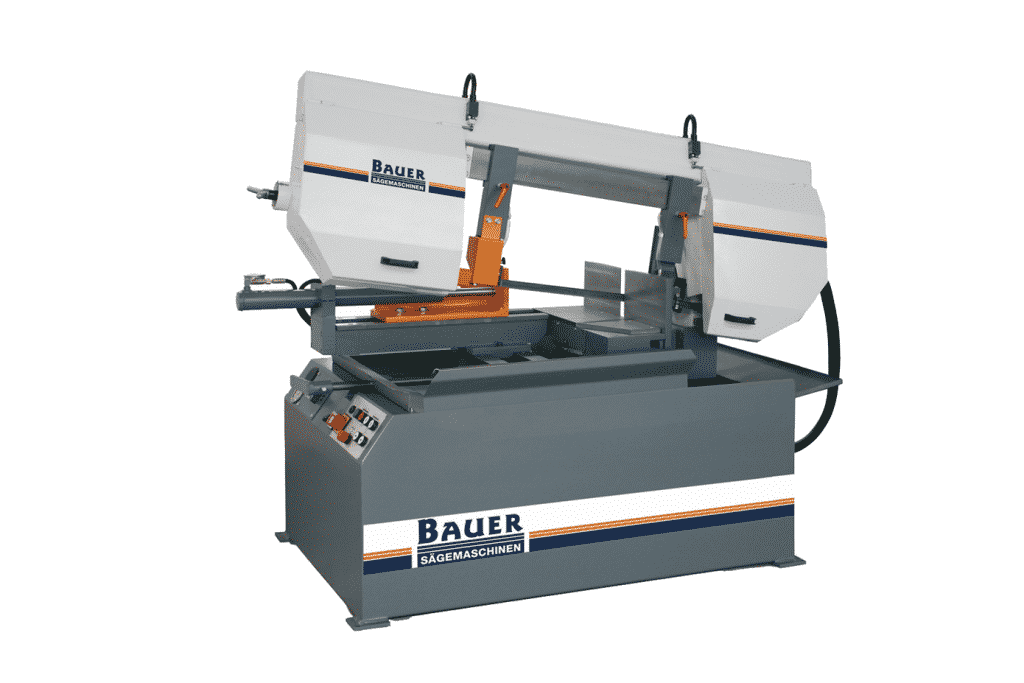

Main view Bauer-S-DGSA-Semi-Automatic-Double-Mitre-Bandsaw-415v

Bauer have been designing and manufacturing bandsaws in Germany since 1937, with thousands of machines installed worldwide. Bauer products have firmly established a reputation for long life and reliability with many machines still in use today in the UK after many years of service. The DG machines are large capacity double mitre bandsaws available in manual and semi automatic operation.

Main view Bauer-S-DGSA-Semi-Automatic-Double-Mitre-Bandsaw-415v

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view Bauer-S-DGSA-Semi-Automatic-Double-Mitre-Bandsaw-415vMain view Bauer-S-DGSA-Semi-Automatic-Double-Mitre-Bandsaw-415v
Video thumbnail showing the Bauer S DGSA Semi Automatic Double Mitre Bandsaw 415v
Close up detail of the Bauer MotorClose up detail of the Bauer Motor
Close up detail of the Bauer Mitre ScaleClose up detail of the Bauer Mitre Scale



MODEL     S320DGSA
STOCKCODE 15117
Capacity 90° 45° L&R 60° R
Round mm 320 320 180
Square mm 305 305 210
Rectangle mm 520 x 160 325 x 240 210 x 240
Blade Size mm 4150 x 34 x 1.1
Cutting Speed m/min 35/70
Motor Kw 1.1 – 1.4
Length mm 2040
Width mm 1000
Height mm 1300
Weight Kg 870
Operation Semi-automatic
Vice Hydraulic

Features

  • Semi automatic with hydraulic vice and automatic bow lift.
  • Made in Germany.
  • Heavy duty.
  • Carbide blade guides for high accuracy.
  • Double mitring head.
  • Coolant system.
  • Large easy to read mitre scales
  • Automatic down feed with variable control.

Options

  • Hydraulic Vice
  • Hydraulic Bow Lift
