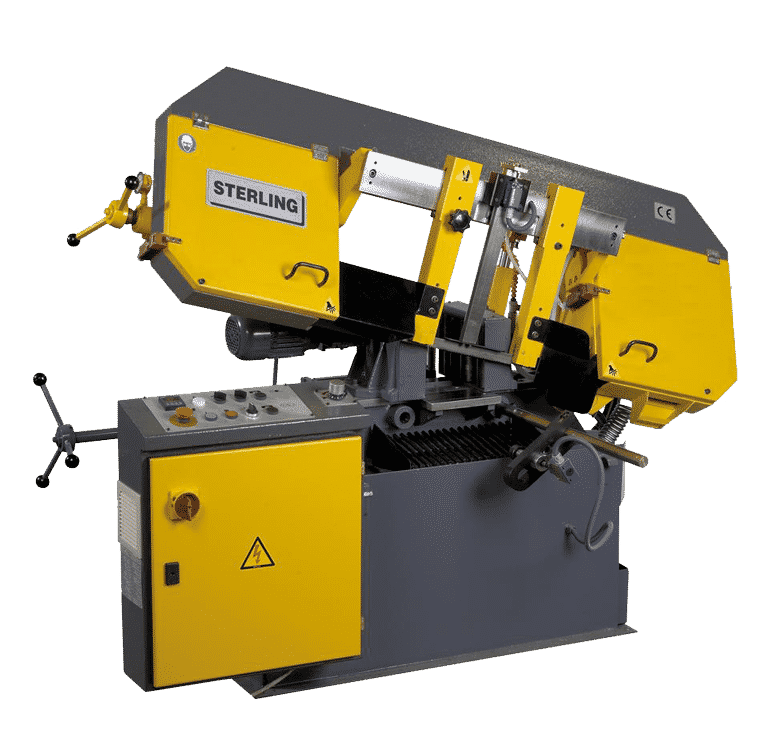

Sterling SRA Automatic Roller Feed Vice Mitre Bandsaw 415V
The Sterling SRA Automatic Roller Feed Vice Mitre Bandsaw follows the traditional pattern of manual, semiautomatic and fully automatic models. With thousands of machines installed Worldwide, Sterling products have firmly established a reputation for long life and reliability.
MODEL | SRA230 A | SRA320 A | |||
STOCKCODE | 15141 | 15144 | |||
Capacity | 90° | 90° | |||
Round | mm | 230 | 320 | ||
Square | mm | 230 | 300 | ||
Rectangle | mm | 240 x 230 | 320 x 300 | ||
Bed Height | mm | 590 | 640 | ||
Blade Size | mm | 2730 x 27 x 0.9 | 3660 x 27 x 0.9 | ||
Cutting Speed | m/min | 35 -70 | 20 – 100 | ||
Motor | Kw | 1.0/1.5 | 1.5 | ||
Length | mm | 1700 | 1850 | ||
Width | mm | 1100 | 850 | ||
Height | mm | 1300 | 1250 | ||
Weight | Kg | 370 | 660 | ||
Operation | Automatic | Automatic | |||
Vice | Manual | Manual |
Features
- Automatic feed with roller vice
- Heavy duty
- Safety interlock switches fitted to band cover
- Double Mitring
- Hydraulic blade tension indicator
- Gravity down feed with variable control
- Carbide blade guides for high accuracy
- Safety control panel situated away from the blade
Options
- Hydraulic Vice
- Hydraulic Bow Lift
