PEHU RB Roller Track System

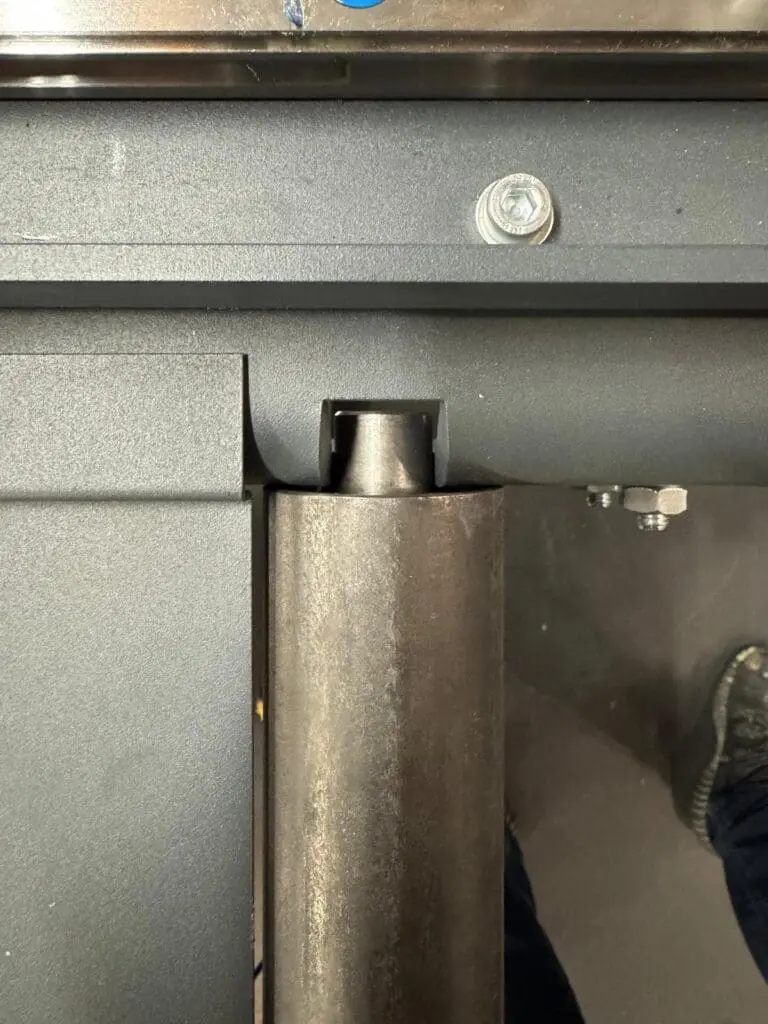

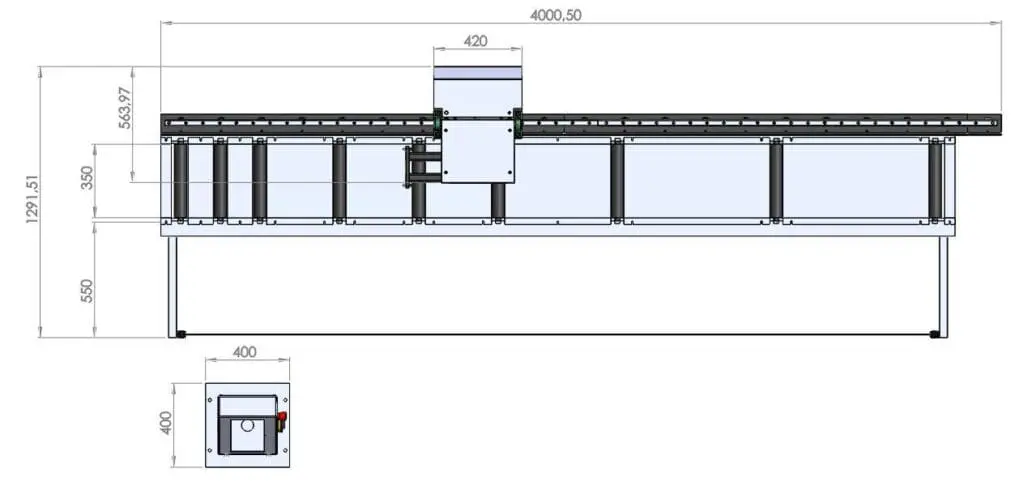

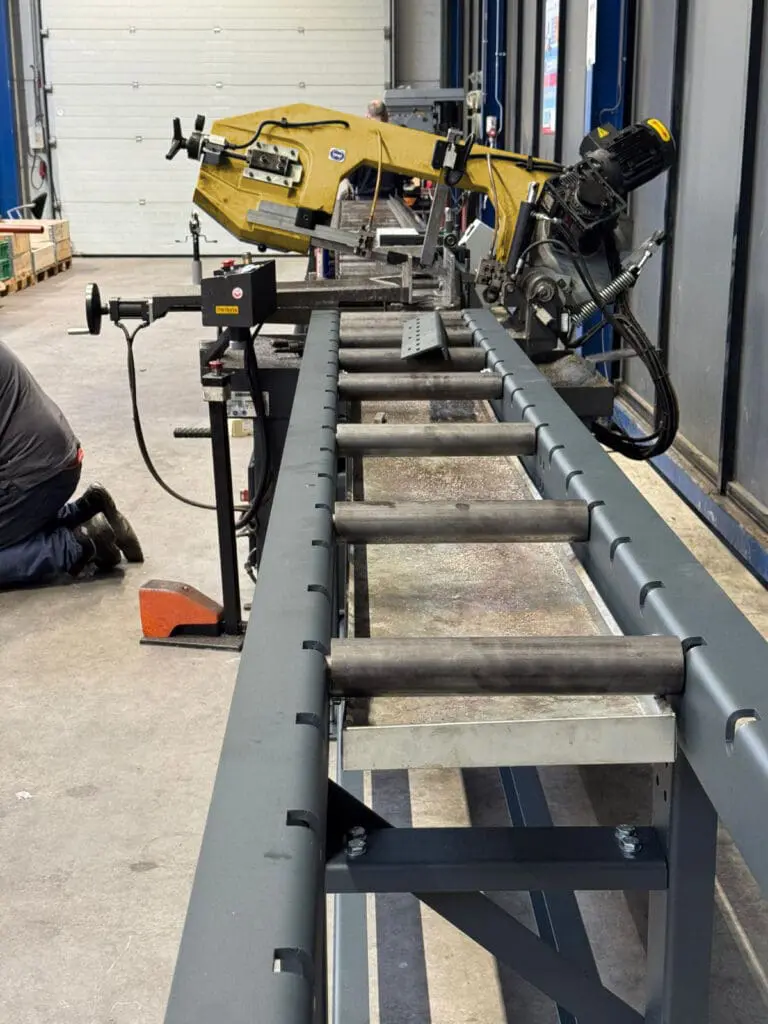

The basic segment of PEHU Roller Track consists of a frame of 4 meters completely welded and powder coated in Ral 7016. Available in widths of 350mm or 630mm. The key feature of the PEHU Roller Track system is that the rollers can be lifted and dropped into different slots, to suit your material and cutting lengths, especially helpful if you’re regularly working with much larger pieces as well as smaller cuts.

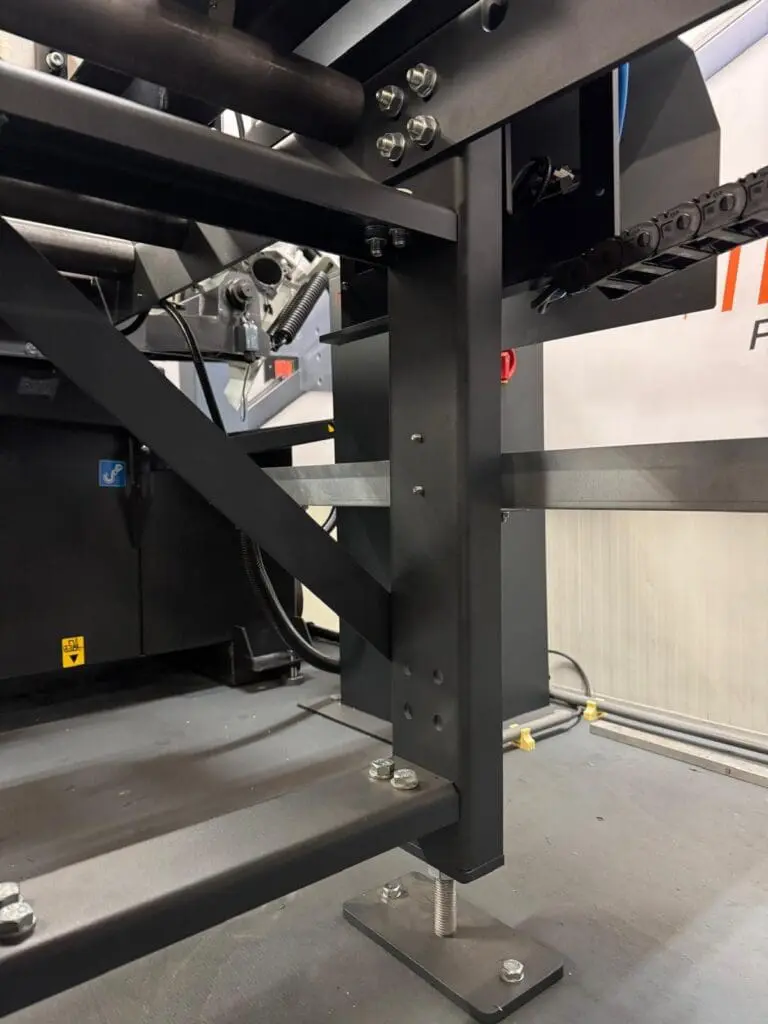

The track features 6 adjustable feet of M20 – adjustment range from 700mm – 1050mm. Roller track is extendable in 2 metre sections.
| MODEL | RB 350 | RB 630 | |
| Roller Track Width | mm | 350 | 630 |
| Roller Diameter | mm | 60 | 90 |
| Roller Shaft Size | mm | 25 | 25 |
| Roller Track Height | mm | 700 – 1050 | 700 – 1050 |
| Suitable LMS Models | LMS15 – LMS 30 | LMS30 – LMS 45 |
For the PEHU LMS 60 and LMS 80 Systems, built to order powered roller tracks can be supplied
Features
- Heavy Duty
- Removable, adjustable rollers
- Available in different widths (350mm / 630mm)
- Adjustable Height (Min 700mm – Max 1050mm)
Options
- For the LMS 60 and LMS 80, powered roller tracks can be built
PEHU RB Roller Track – Modular & Adjustable Material Support
Versatile and Durable Roller Track System
The PEHU RB Roller Track is a heavy-duty, modular support system designed to streamline material handling in cutting and fabrication applications. Built for strength, stability, and adaptability, this roller track system enhances efficiency in workshops handling a variety of material sizes and lengths.
Key Features
Robust and Powder-Coated Steel Frame
Each 4-metre segment is constructed from fully welded steel and finished with a RAL 7016 powder coating, ensuring long-term durability and resistance to wear and tear in demanding industrial environments.
Adjustable Roller Positions for Maximum Flexibility
The PEHU RB Roller Track features an innovative adjustable roller system, allowing the rollers to be lifted and dropped into different slots. This design enables custom positioning based on your material dimensions and cutting requirements, making it especially useful when working with a combination of large and small materials.
Available in Multiple Widths
To accommodate different material handling needs, the PEHU RB Roller Track is available in two width options:
- 350mm wide – Suitable for standard material sizes
- 630mm wide – Ideal for handling wider and heavier workpieces
Height-Adjustable Support for Stability

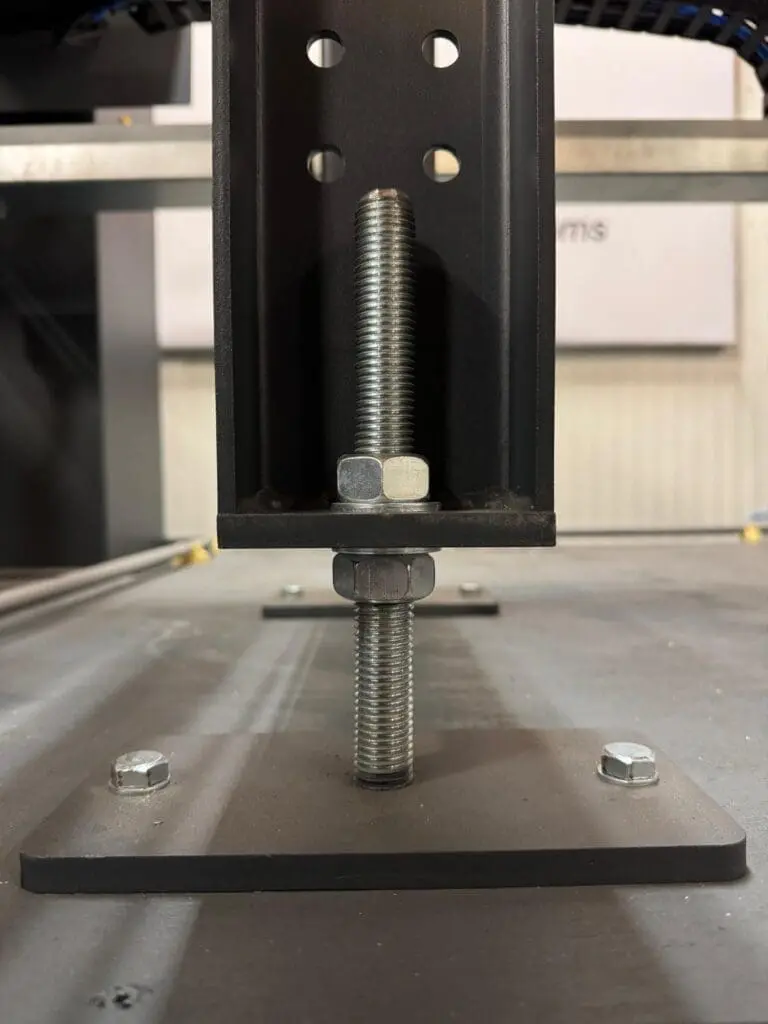

Equipped with six adjustable M20 feet, the track offers a height adjustment range from 700mm to 1050mm, providing stability and levelling on uneven surfaces. This ensures secure and ergonomic material handling across various work environments.
Extendable for Longer Material Support
The modular design allows for easy expansion, with 2-metre extension sections available to create longer roller tracks as needed. This flexibility makes it an excellent choice for workshops processing extra-long materials.
Why Choose the PEHU RB Roller Track?
✅ Heavy-duty welded frame for durability and stability
✅ Customisable roller positions to suit different material sizes
✅ Adjustable height for optimal ergonomics and stability
✅ Expandable design with 2-metre extensions
✅ Powder-coated finish for long-term protection
Ideal for:
✔️ Metalworking and fabrication workshops
✔️ Cutting and sawing stations
✔️ High-volume material handling applications
✔️ Businesses handling a variety of workpiece sizes
The PEHU RB Roller Track provides a robust, adaptable, and expandable solution for efficient material handling, ensuring smooth and precise feeding into your cutting equipment.
Frequently Asked Questions
What is different about the PEHU RB roller track system?
The PEHU RB has rollers that can be lifted and repositioned into different slots. This makes it useful where a workshop alternates between long material and short cut lengths and needs flexibility in roller spacing.
What widths are available for the PEHU RB roller track?
Selmach lists RB 350 and RB 630 versions, with roller track widths of 350mm and 630mm respectively. The right choice depends on the material section and the PEHU measuring system being used.
What roller sizes are fitted to the PEHU RB 350 and RB 630?
The published RB 350 roller diameter is 60mm, while the RB 630 uses 90mm rollers. Both versions list a 25mm roller shaft size.
How long is a standard PEHU RB roller track?
Selmach describes a basic welded frame segment of 4m, with 2m extension sections available. Confirm the proposed combination of modules and the overall usable material-support length before ordering.
Can the PEHU RB roller track height be adjusted?
Yes. The PEHU RB has adjustable feet with a published height range of 700–1,050mm. The track should be set level with the associated machine and checked under the intended material load.
Which PEHU LMS measuring systems work with the RB track?
Selmach lists the RB 350 as suitable for LMS15–LMS30 systems and the RB 630 for LMS30–LMS45 systems. Confirm the exact combination, mounting and stop clearance with Selmach before purchase.
Is the PEHU RB roller track suitable for powered feeding?
The RB provides configurable material support, but powered feeding depends on the complete system specification. Discuss any drive, stop, guarding and machine-interconnection requirements with Selmach rather than assuming a standard gravity track is motorised.
What maintenance or Service Plan support is available for the PEHU RB roller track?
Inspect the repositionable rollers, bearings, feet and frame, and keep all roller slots free of debris. Selmach can advise on maintenance and whether the RB track can be included in the service scope for an associated PEHU measuring system or machine.
