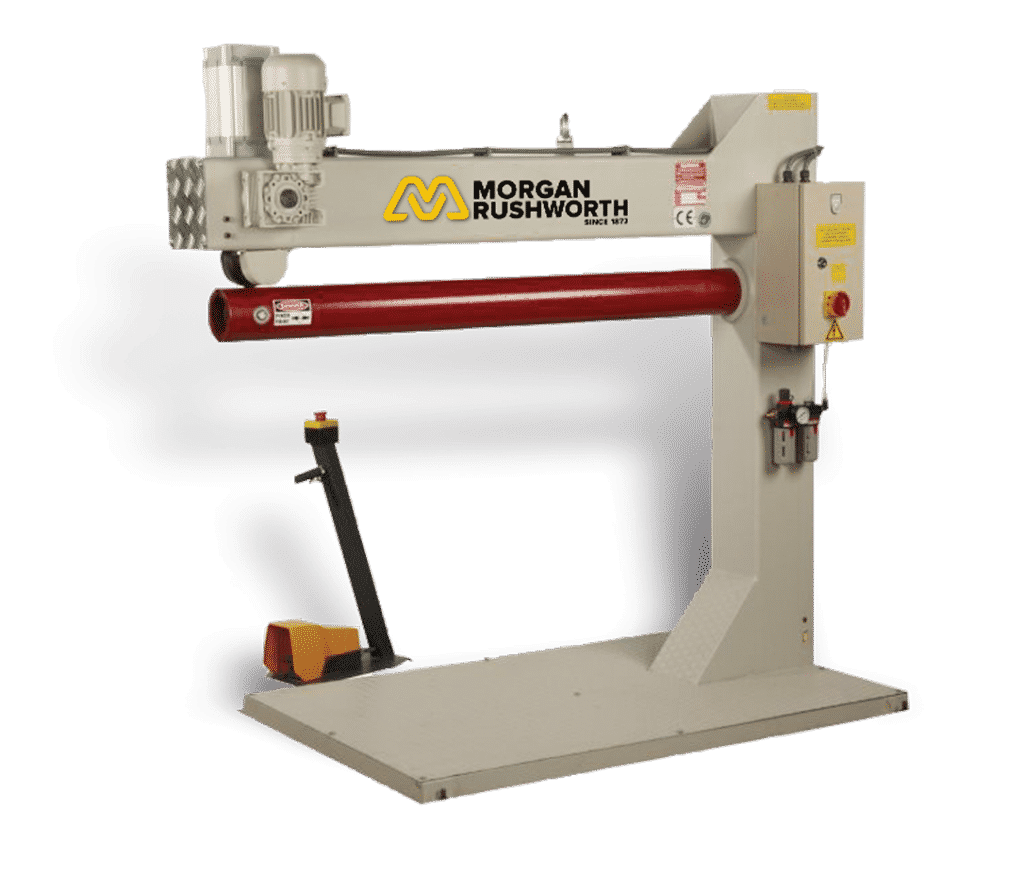

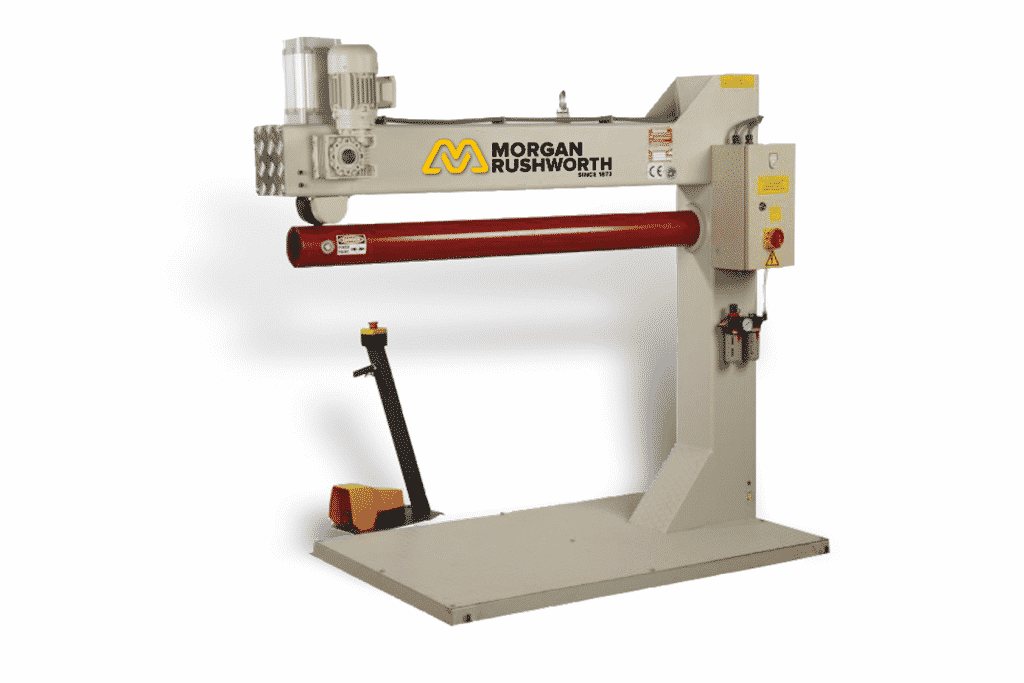

Morgan Rushworth PSC 1320/1.2 Pneumatic Seam Closer 415V
The Morgan Rushworth PSC pneumatic seam closer is designed to close a double seam join, with a professional uniform finish. The motorised top roll is pneumatically lowered onto the material and raised at the completion of the closed seam.
Request a Quote
| MODEL | PSC 1320/1.2 | |
| Thickness | mm | 1.2 |
| Max Working Length | mm | 1320 |
| Min Tube Diameter | mm | 140 |
| Max Tube Diameter | mm | 1000 |
| Working Pressure | bar | 8 |
| Motor | kw | 0.37 |
| Length | mm | 1800 |
| Width | mm | 900 |
| Height | mm | 1650 |
| Weight | kg | 300 |
- Fast closing of seams
- Professional finish
- Pneumatically operated top roll
- Adjustable operating pressure
