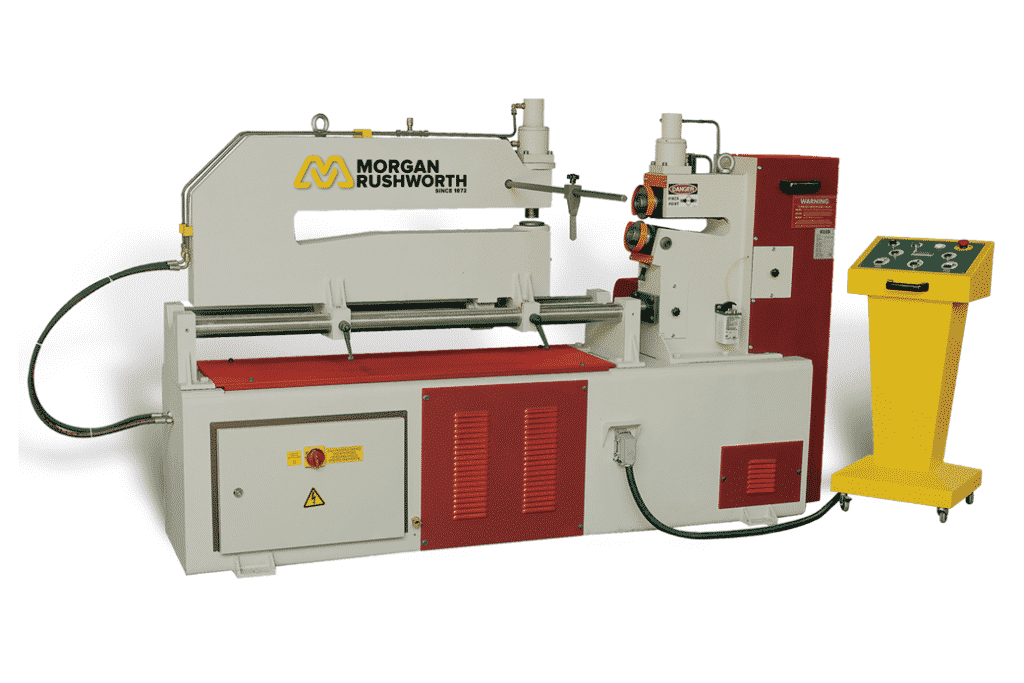

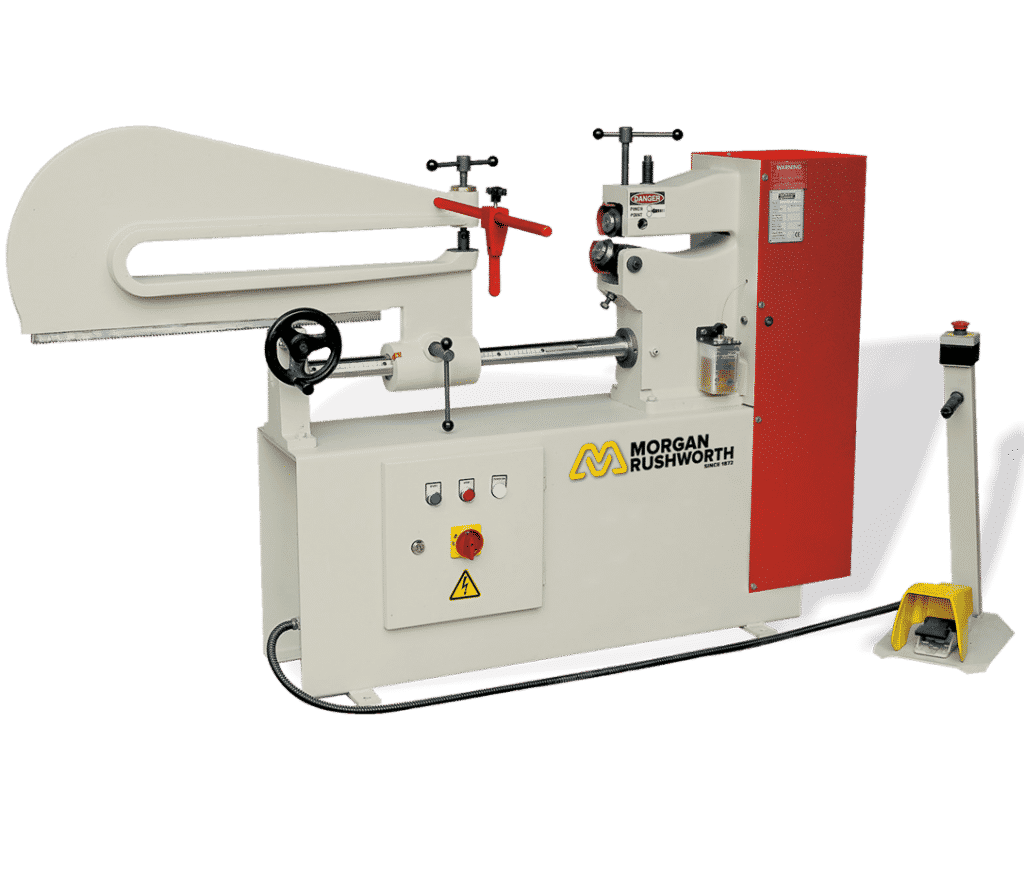

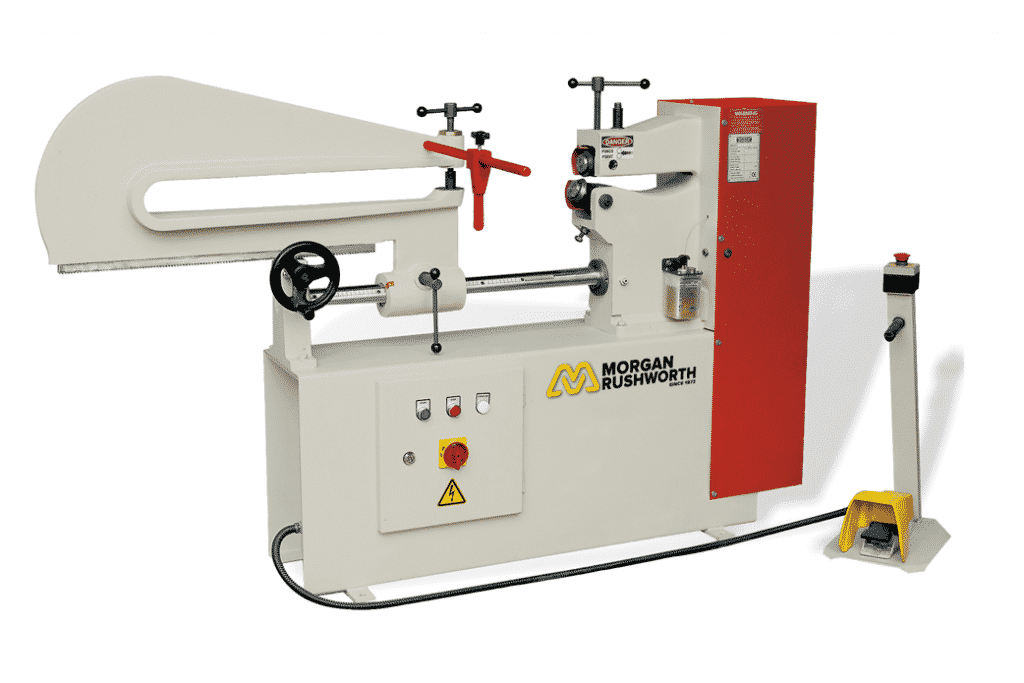

Morgan Rushworth PCC Powered Circle Cutter
The Morgan Rushworth Circle Cutting machine are manufactured with a rigid steel frame, suitable for production cutting. The smaller machines feature manual adjustment of the upper cutter, while the powerful PCC 2000/5.0 model benefits from not only hydraulic cutter adjustment but also hydraulic clamping of the sheet. The standard machine configuration allows the cutting of both standard circles and internal diameters to produce flanges.
Request a Quote
| MODEL | PCC 1000/2.0 | PCC 1200/3.5 | PCC 2000/5.0 | |
| STOCK CODE | M7015 | M7017 | M7022 | |
| Capacity | mm | 2 | 3.5 | 5 |
| Minimum Circle Diameter | mm | 180 | 200 | 250 |
| Maximum Circle Diameter | mm | 1000 | 1200 | 2000 |
| Cutting Speed | m/min | 7.5 | 6.1 | 4.1 |
| Throat Depth – Body | mm | 280 | 250 | 300 |
| Throat Depth – Arm | mm | 700 | 750 | 1200 |
| Motor Power | kW | 1.1 | 2.2 | 2.2 |
| Length | mm | 1400 | 2000 | 3000 |
| Width | mm | 400 | 600 | 750 |
| Height | mm | 1150 | 1400 | 1400 |
| Weight | kg | 350 | 750 | 1350 |
- Steel welded frame
- High quality cutters
- PCC 1000/2.0 & PCC 1200/3.5 – Manual adjustment of upper cutter
- PCC 2000/5.0 – Hydraulic adjustment of upper cutter
- PCC 1000/2.0 – Manual sheet clamping
- PCC 1200/3.5 – Pneumatic sheet clamping
- PCC 2000/5.0 – Hydraulic sheet clamping
- Attachments to allow internal diameters for flanges
- Braked motor
- Central lubrication system
- Mobile control panel
- PCC 1000/2.0 – Pneumatic clamping on centre of sheet
