Meyer Euroline EX Precision Centre Lathes

The Meyer Euro Line metal lathes include high-capacity EV, EX, and EC models with wider beds and powerful motors. The EX 1410 model has a 1410mm swing over bed and, on request, up to 9000mm between centres. EC models feature a large bore through the headstock and optional free-standing steadies for longer materials.

All models are available in variable-speed versions and with a wide range of optional features. Thread cutting is offered in various types and pitches, similar to the smaller models.

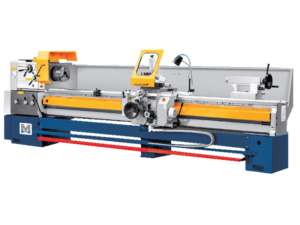

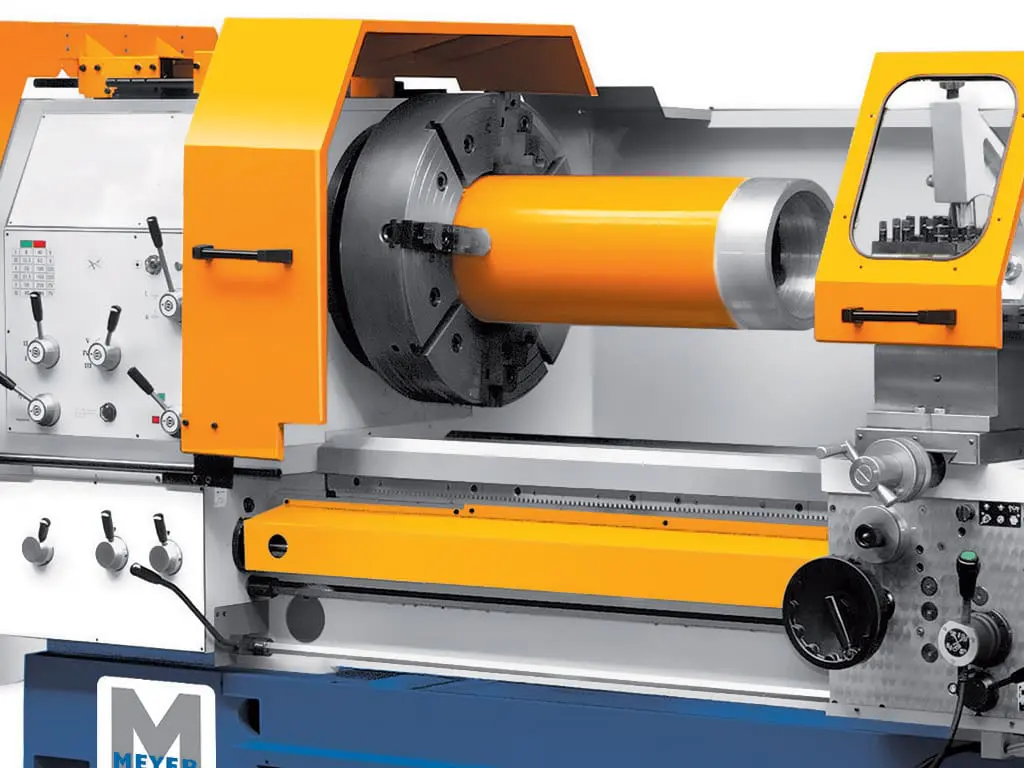

Meyer Euroline EX Precision Centre Lathes imageMeyer Euroline EX Precision Centre Lathes image
Video thumbnail showing the Meyer Euroline EX Precision Centre Lathes

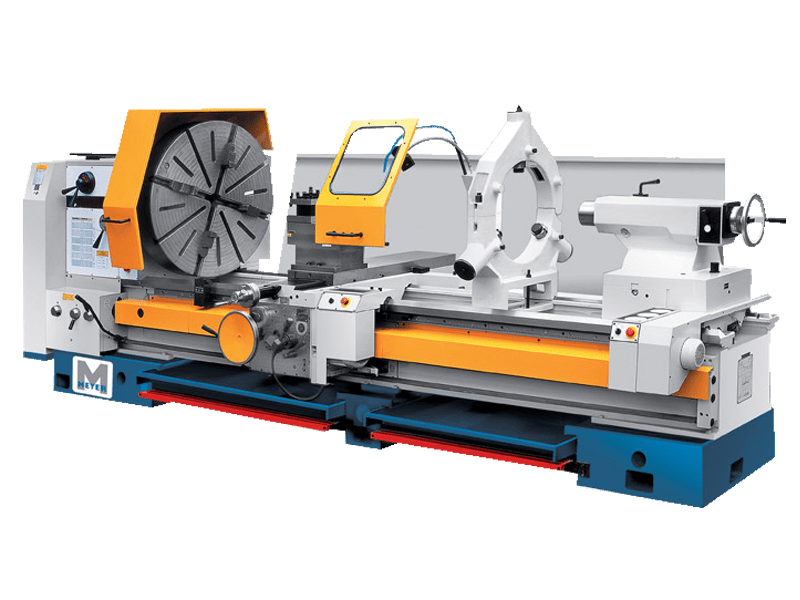

Meyer Euroline EX Precision Centre Lathes image 3Meyer Euroline EX Precision Centre Lathes image 3

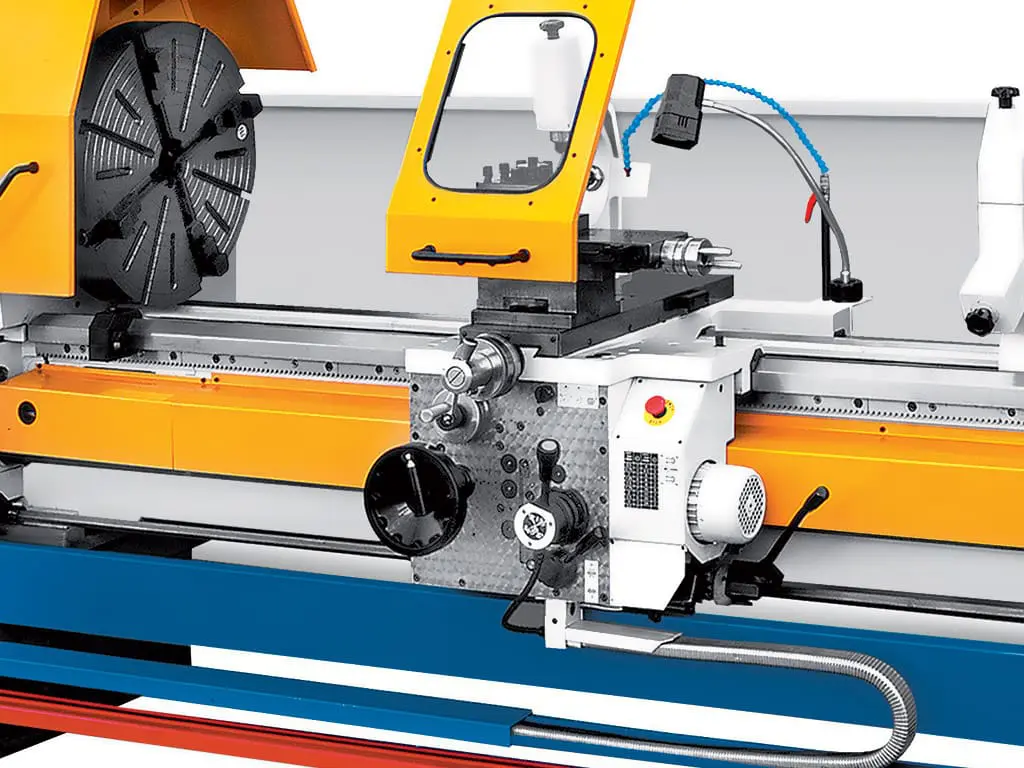

Meyer Euroline EX Precision Centre Lathes image 4Meyer Euroline EX Precision Centre Lathes image 4

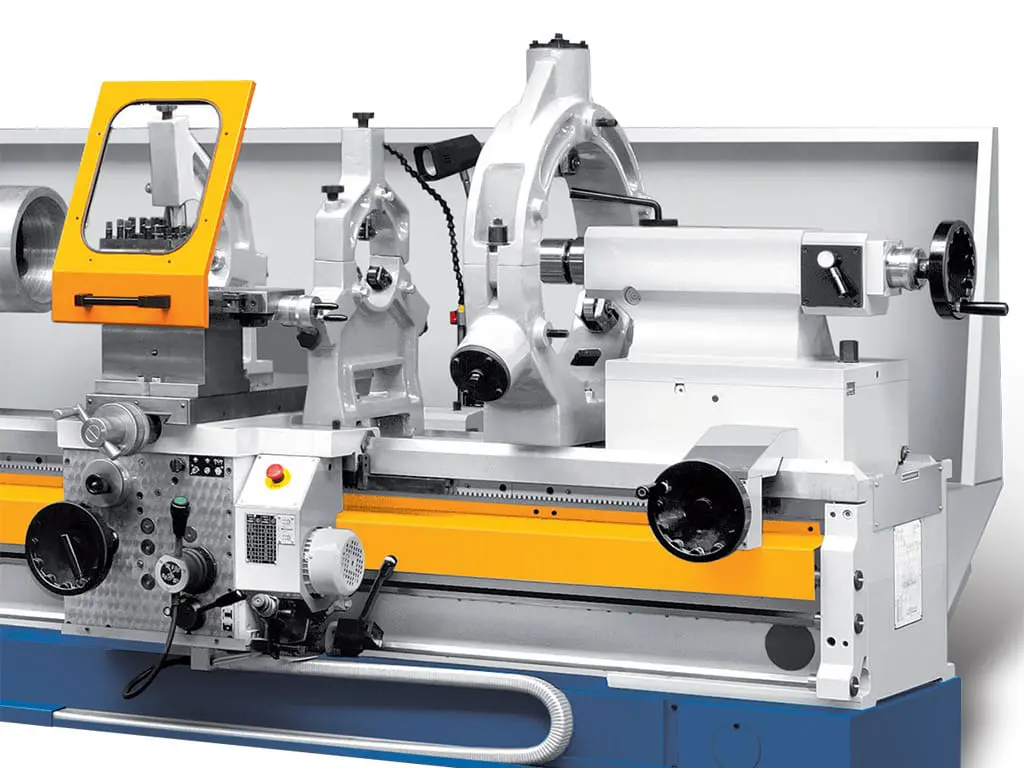

Meyer Euroline EX Precision Centre Lathes image 5Meyer Euroline EX Precision Centre Lathes image 5



  EX 660/1500 EX 660/2000 EX 660/3000 EX 660/4000 EX 660/5000 EX 660/6000 EX 760/1500 EX 760/2000 EX 760/3000 EX 760/4000 EX 760/5000 EX 760/6000 EX 860/1500 EX 860/2000 EX 860/3000 EX 860/4000 EX 860/5000 EX 860/6000 EX 890/1500 EX 890/2000 EX 890/3000 EX 890/4000 EX 890/5000 EX 890/6000 EX 1090/1500 EX 1090/2000 EX 1090/3000 EX 1090/4000 EX 1090/5000 EX 1090/6000 EX 1320/1500 EX 1320/2000 EX 1320/3000 EX 1320/4000 EX 1320/5000 EX 1320/6000 EX 1410/2000 EX 1410/3000 EX 1410/4000 EX 1410/5000 EX 1410/6000 EX 1410/7000 EX 1410/8000 EX 1410/9000
Capacities
Height of centres mm 330 380 430 400 500 625 705
Swing over Bed mm 660 760 860 890 1090 1320 1410
Swing over cross slide mm 420 520 620 490 690 940 1000
Swing in gap* mm 850 950 1050 1050 1250 1500
Width of bed mm 560 700 800
Distance between Centres mm 1500 – 2000 – 3000 – 4000 – 5000 – 6000 2000 – 9000
Spindle
Spindle nose DIN 55027 No 11 15 A 15
Spindle bore mm 103 132 155 205
Spindle taper Metric 120 140 160 215
Headstock
Number of spindle speeds 15 17 24 Infinitely variable in 4 sub-ranges
Spindle speed ranges rpm 9 – 1320 7.5 – 1015 6.3 – 1250 1.5-8 / 5-31 20-125 / 80-500
Main motor power kW 11 15 22 (30) 45
Feeds
Number of feeds 150 180 160
Longitudinal feed range mm/rev 0.039 – 18 0.032 – 38.9
Cross feed range mm/rev 0.02 – 9 0.016 – 19.45
Threads
Number of threads 76 of each kind 40 of each kind 64 of each kind
Metric thread range mm 0.5 – 180 0.25 – 7.5 0.5 – 120
Inch thread range Tpi 60 – 1/6 120 – 4 60 – 1/4
Module thread range Module 0.125 – 45 0.125 – 120
DP thread range DP 240 – 2/3 240 – 1/4
Carriage
Cross slide travel mm 410 435 525 685 730
Top slide travel mm 150 270 350
Tailstock
Quill diameter mm 105 125 200
Quill taper Morse No.6 No.7
Quill travel mm 225 260 300
Dimensions
Length mm 3790 – 8290 4300 – 8800 4600 – 11600
Width mm 1600 2250 2000
Height mm 1750 1800 1850 2000 2100 2300 2500
Weight kg 4170 – 6730 4470 – 6990 4670 – 11700 7500 8050 – 12400 8450 – 12850 14000 – 20000

Features

  • High quality European built machines
  • Rigid build ensures high chip removal rate during the rough turning operation
  • Highly resistant steel with high loading capacity used for all gear and spindle parts
  • Cast bed with hardened and ground bed ways
  • Gap bed design
  • Variable spindle speed
  • Rapid traverse
  • Four position square toolpost
  • Chuck guard with interlock switch
  • Lead screw guard
  • Low voltage halogen work light
  • Centralised lubrication
  • Chip collection tray
  • Coolant system
  • Full length rear splash guard

Options

  • Variable spindle speed
  • 2 or 3 axis digital read out
  • Thread dial indicator
  • Quick change tool post
  • 3 and 4 jaw chucks
  • Face plate
  • Fixed steady
  • Follow rest

Meyer Euroline EX Precision Centre Lathes

The Meyer Euroline EX range of precision centre lathes is a testament to high-capacity engineering and cutting-edge design. This exceptional series of metal lathes is part of the broader Meyer Euroline family, which includes the EV, EX, and EC models. With their robust construction, advanced features, and tailored options, the EX range stands out as the ultimate solution for demanding machining tasks.

Built for High-Capacity Applications

At the core of the EX range is its exceptional capacity and performance. Designed for industries requiring precision and reliability, the EX 1410 model exemplifies this range’s capabilities. With a swing over bed of 1410mm, it offers the versatility to handle large and complex workpieces. Moreover, customers can request an extended distance of up to 9000mm between centres, making these lathes suitable for machining exceptionally long components.

The EX range is also equipped with wider bed designs to enhance stability and accommodate the stresses of heavy-duty operations. Combined with high-powered motors, these features ensure the lathes deliver consistent performance, even under the most challenging conditions.

Versatile Thread Cutting Capabilities

A hallmark of the Meyer Euroline lathes is their advanced thread-cutting functionality. The EX range supports a wide variety of thread types and pitches, catering to diverse applications and industries. Whether your project involves intricate threads or large-scale production, these lathes provide the precision and adaptability required for outstanding results. This versatility aligns seamlessly with the demands of modern machining environments, where efficiency and accuracy are paramount.

Enhanced Customisation and Options

Meyer Euroline’s commitment to meeting specific customer needs is evident in the array of options available for the EX range. All models can be supplied with variable-speed versions, offering operators greater control and flexibility. The ability to adjust speeds ensures optimal performance across a range of materials and machining requirements.

Additionally, the EX lathes are available with a wide range of optional features and accessories, enabling businesses to tailor their machines to suit unique workflows. From specialised tooling to advanced control systems, these enhancements ensure that the EX range remains adaptable and future-ready.

Superior Stability for Long Workpieces

For operations involving extended materials, the EX range offers unparalleled support and precision. Free-standing steadies can be supplied as an optional feature, providing additional stability when working with long workpieces. These steadies enhance accuracy and reduce vibration, ensuring a superior finish even on complex or challenging projects.

The combination of a wide bed, powerful motor, and optional steadies makes the EX range ideal for industries such as aerospace, shipbuilding, and heavy engineering. These industries demand the ability to work with oversized components while maintaining strict tolerances, a requirement that the EX range fulfills with ease.

Reliability Backed by Quality

Meyer Euroline’s reputation for quality and durability is reflected in every aspect of the EX range. Built to last, these machines feature robust construction, precision-engineered components, and a design philosophy focused on long-term performance. Regular maintenance is straightforward, thanks to the thoughtful placement of key service points and intuitive machine interfaces.

Moreover, the EX range benefits from Meyer Euroline’s comprehensive customer support network. From installation to after-sales service, customers can rely on expert assistance to keep their operations running smoothly.

Key Specifications of the EX 1410 Model

  • Swing Over Bed: 1410mm
  • Maximum Distance Between Centres: Up to 9000mm (on request)
  • Variable-Speed Options: Available for enhanced control
  • Thread Cutting: Wide range of types and pitches
  • Optional Features: Free-standing steadies, advanced tooling, and custom configurations

These specifications underline the EX 1410’s position as a flagship model within the range, showcasing the cutting-edge capabilities that set the EX series apart.

Conclusion

The Meyer Euroline EX Precision Centre Lathes embody the perfect blend of power, precision, and versatility. With their high-capacity design, extensive customisation options, and industry-leading features, they are the ideal choice for businesses seeking reliable and adaptable machining solutions. Whether you require a machine for standard applications or a tailored system for complex projects, the EX range delivers exceptional performance and value.

By choosing Meyer Euroline, you invest in a legacy of engineering excellence and a future of operational success. Explore the EX range today and discover how it can elevate your machining capabilities to new heights.
