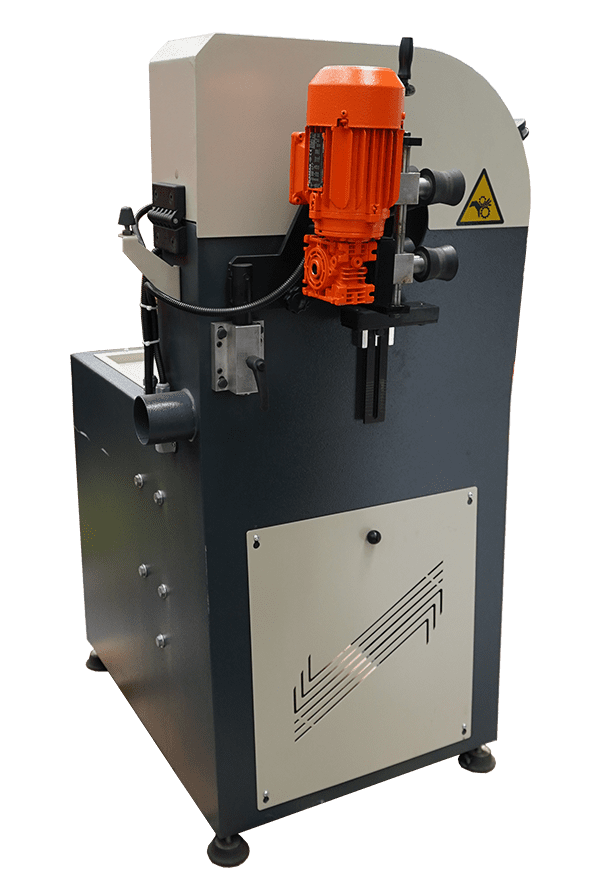

RVD PPM 114 Tube Polishing Machine 415V

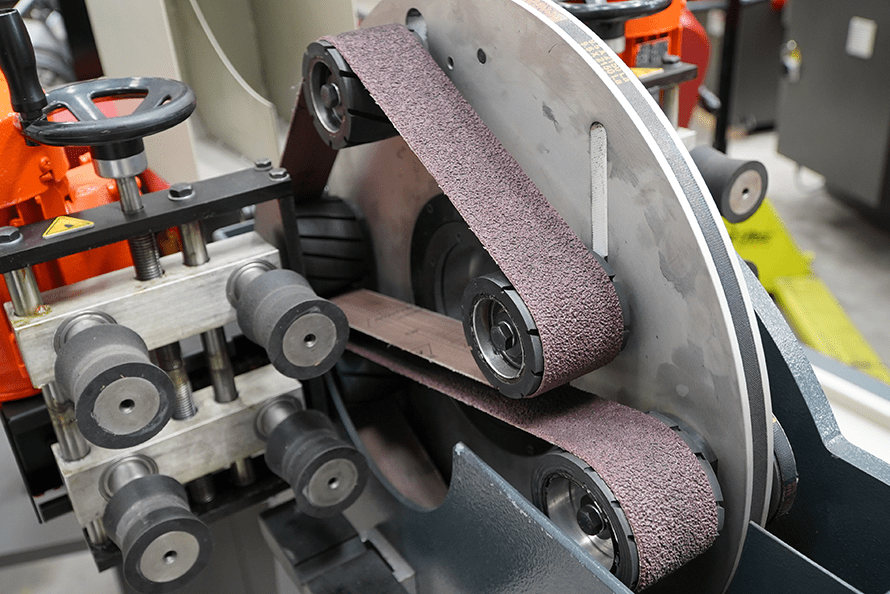

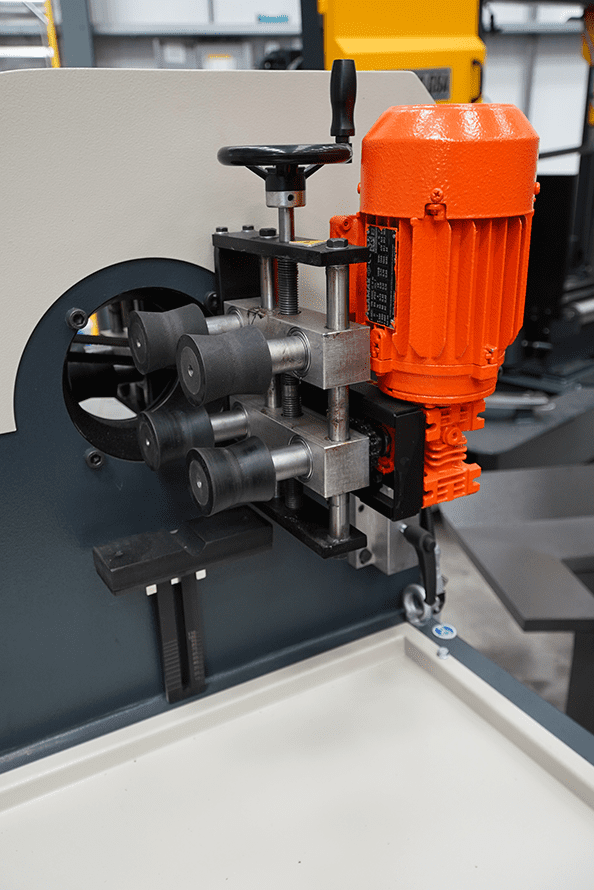

The RVD PPM 114 Tube Polishing machine is the perfect choice for finishing and polishing round, oval and elliptical tubes. The planetary system enables the tube to be polished without manually rotating the tube, delivering the best results on bent and curved tubes too. The auto feeding system transports straight tubes safely and automatically through the finishing station, enabling a consistent and high productive finishing quality.
With adjustable feeding speeds, this tube polisher can be used on tubes of various dimensions up to 114 Ø mm. The machine’s compact form makes it ideal for even the smallest workshops too.
| MODEL | PPM 114 | |
| Working Capacity | Ø mm | 10 – 114 |
| Abrasive belts Motor Power | kW | 3+1.5 |
| Wheel Motor Power | kW | 0.24 |
| Total Motor Power | kW | 4.74 |
| Belt Dimensions | mm | (2x) 940 x 50 (2 pcs abrasive belts included) |
| Feeding Speed | m/minute | 3 – 22 |
| Length | mm | 1000 |
| Width | mm | 750 |
| Height | mm | 1500 |
| Weight | kg | 280 |
Features
- Automatic feeding system, allows for minimal operator interaction
- 2 sets of abrasive belts included as standard
- Manual pipe clamping adjustment
- Fixing attachment for motor

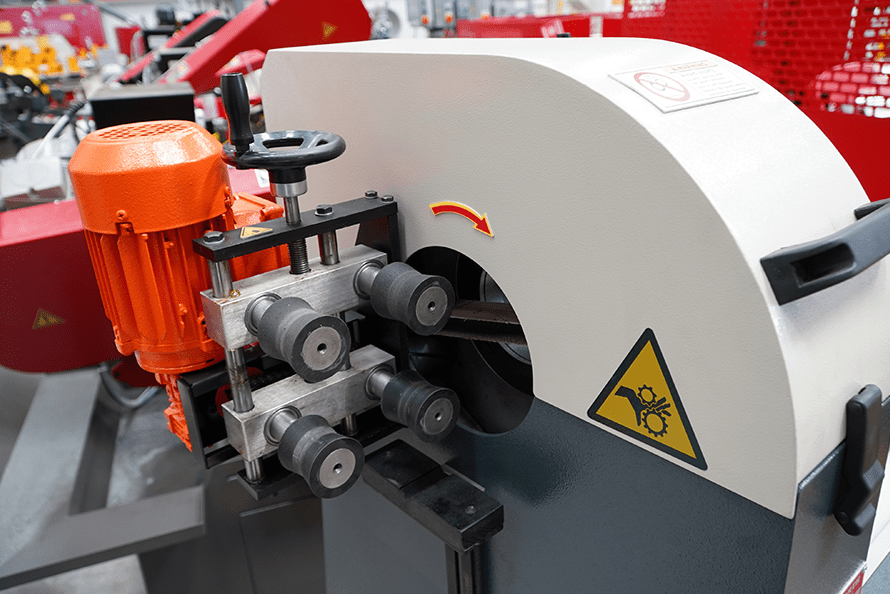

- Opening cover for changing of belts, cleaning and maintenance
- Holder for manual feeding
- Can polish bent pipes and tubes at up to 180˚ (angle)
- No need to turn the material on the auto feeder system
Options
