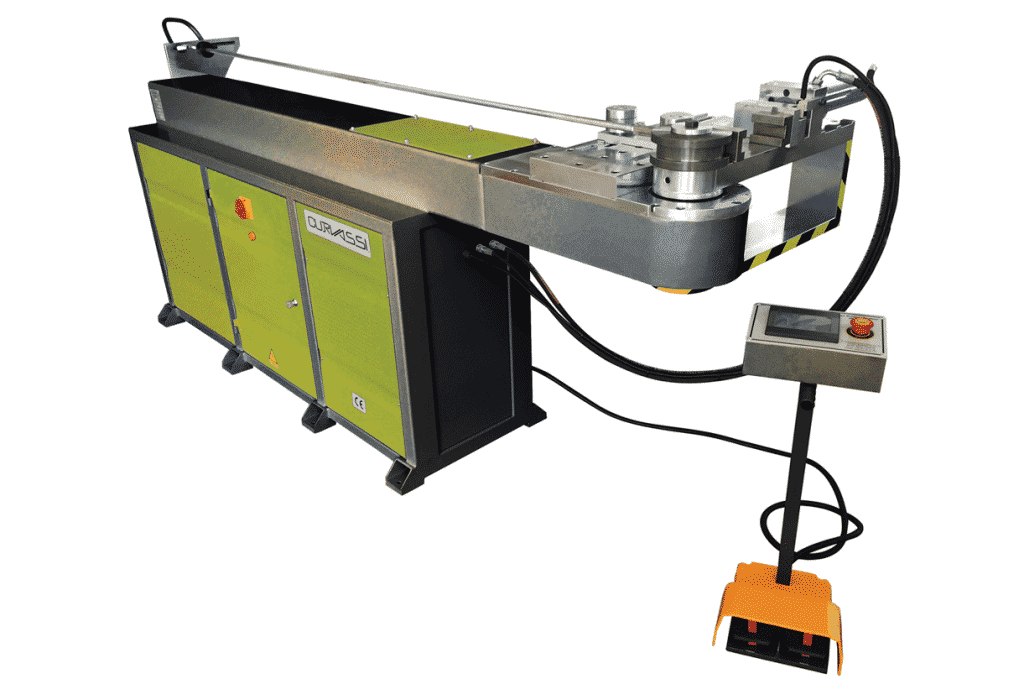

Curvassi MTX 38 Mandrel Tube Benders
Capable of bending up to 38mm pipe diameter, the MTX 38 features a hydraulic vice, and a 4.7″ Touch Screen programmable controller, for multi-step bending.
The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.
| MODEL | MTX38 NC CONTROL | |
| Max. Pipe Diameter | mm | ⌀ 38 |
| Max. Wall Thickness | mm | 2 |
| Max. Bending Angle | deg | 190 |
| Max. Bending Radius | mm | 250 |
| Minimum Bending Radius | mm | 45 |
| Max. Mandrel Pipe Insertion Length | mm | 2,500 |
| Bending Speed | D/min | 6.5 |
| Working Tolerance (Bending) | mm | ± 0.25 |
| Bending Angle Movement Motor | kW | 3 (reducer motor, YILMAZ) |
| Hydraulic System Motor | kW | 1.5 |
| Max. Hydraulic Pressure | kg/cm² | 140 |
| Oil Tank Capacity | L | 50 |
| Machine Size (W × L × H) | mm | 900 × 3,250 × 1,200 |
| Weight | kg | 700 |
Features

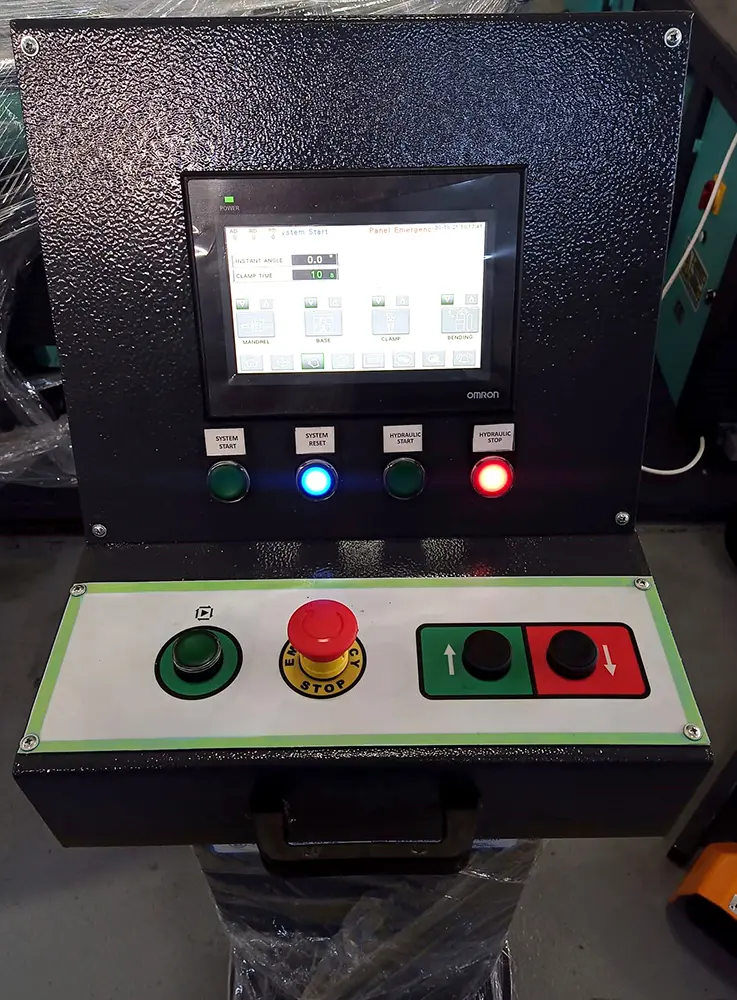

- 7” OMRON colour touch screen
- OMRON Safety PLC and 3 kW inverter (variable speed and bending sensitivity)
- Safety emergency stop relay
- Real-time communication

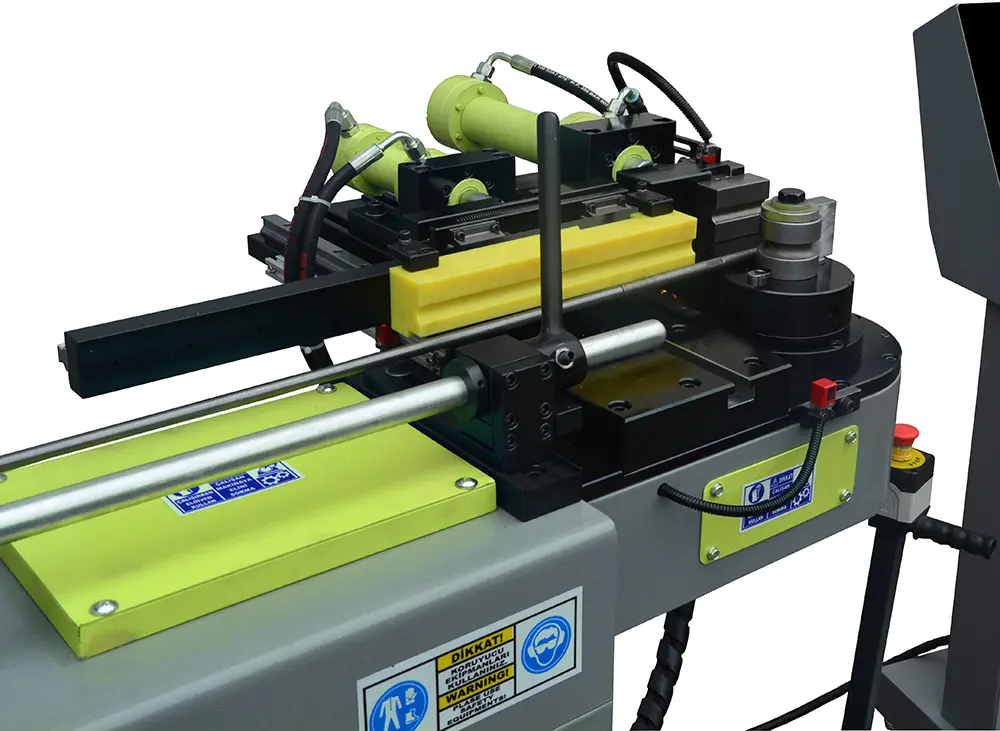

- Hydraulic clamping, mandrel, and pressure die with linear slide system
- Mandrel early pull, ball mandrel, and wiper die capability
- Manual and automatic operation modes
- Pedal control and safety switches
- Automatic angle compensation for material variation
- Smart energy-saving software mode
- Program recovery after power loss or emergency stop
- Remote assistance and software updates
- CE compliant
Options
