Bauer S DG Auto Down Feed Double Mitre Bandsaw 415v

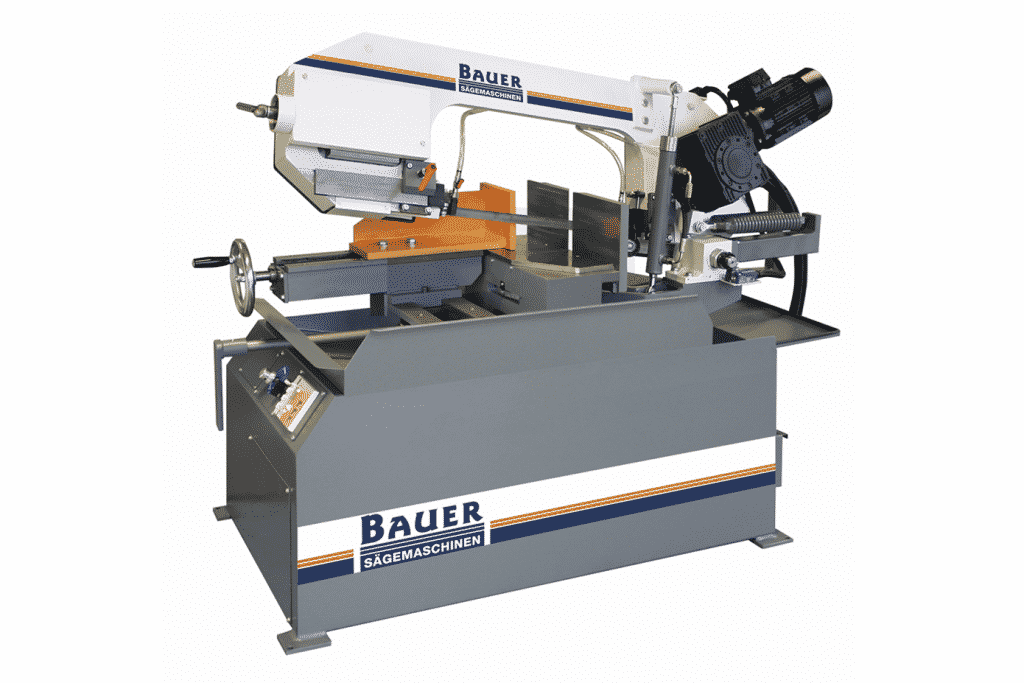

Main view Bauer S280 G Auto Down Feed Double Mitre Bandsaw 415v

Bauer have been designing and manufacturing bandsaws in Germany since 1937, with thousands of machines installed worldwide. Bauer products have firmly established a reputation for long life and reliability with many machines still in use today in the UK after many years of service. The DG machines are large capacity double miter bandsaws available in manual and semi automatic operation.

Main view Bauer S280 G Auto Down Feed Double Mitre Bandsaw 415v

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view Bauer S280 G Auto Down Feed Double Mitre Bandsaw 415vMain view Bauer S280 G Auto Down Feed Double Mitre Bandsaw 415v

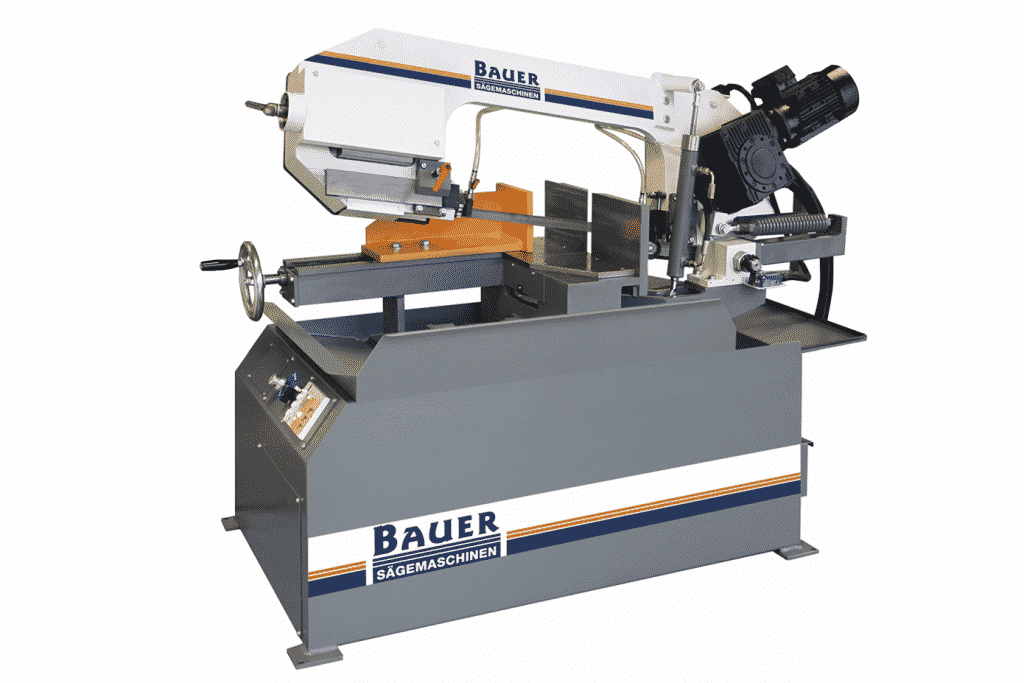

Front view of the Bauer S280 DG Auto Down Feed Double Mitre BandsawFront view of the Bauer S280 DG Auto Down Feed Double Mitre Bandsaw

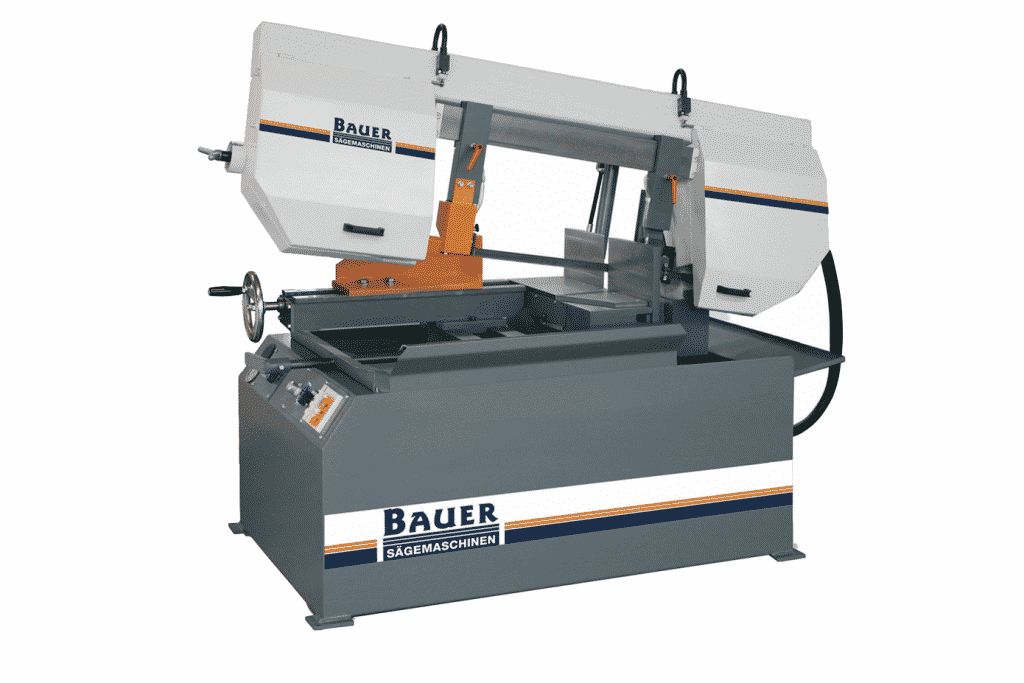

Front view of the Bauer-S320Dg-Double-Mitre-BandsawFront view of the Bauer-S320Dg-Double-Mitre-Bandsaw
Close up detail of the Bauer MotorClose up detail of the Bauer Motor
Close up detail of the Bauer control panelClose up detail of the Bauer control panel
Close up detail of the Bauer Mitre ScaleClose up detail of the Bauer Mitre Scale
MODEL     S280G       S280DG       S320DG
STOCKCODE 15119 15115 15116
Capacity 90° 45° 60° 90° 45° L&R 60° R 90° 45° L&R 60° R
Round mm 280 240 150 280 240 150 320 320 180
Square mm 240 220 130 240 220 130 305 305 210
Rectangle mm 330 x 180 220 x 240 130 x 160 400 x 180 265 x 240 130 x 160 520 x 160 325 x 240 210 x 240
Blade Size mm 3000 x 27 x 0.9 3200 x 27 x 0.9 4150 x 34 x 1.1
Cutting Speed m/min 35/70 35/70 35/70
Motor Kw 1.1 – 1.4 1.1 – 1.4 1.1 – 1.4
Length mm 1700 1800 2040
Width mm 700 700 1000
Height mm 1400 1400 1300
Weight Kg 470 520 790
Operation Auto Down Feed Auto Down Feed Auto Down Feed
Vice Manual Manual Manual

Features

  • Made in Germany
  • Heavy duty
  • Carbide blade guides for high accuracy
  • Double mitring head
  • Coolant system
  • Large easy to read miter scales
  • Automatic down feed with variable control

Options

  • Hydraulic Vice
  • Hydraulic Bow Lift
