Almi AL150HS Abrasive Tube Notching Machine 415v

The new AL150HS has a belt speed of 45 m/s due to its unique transmission. When you open the rear cover, you can also use the pipe grinder as a belt sander, ideal for deburring cut profiles. The AL150HS has the option of being operated by means of two handwheels or by means of a lever. Both options are available on the machine. With the AL150HS you can grind material from Ø20 to Ø114.3. The cross support and the slide with rotatable clamp are infinitely adjustable. This allows all pipe profiles to be ground at any desired angle from 20° to 90°. The AL150HS grinds square, rectangular and round pipes with different wall thicknesses and is suitable for all common material types. It is now even easier to adjust the grinding belt with the supplied hex wrench. The grinding belt can be quickly tensioned and grinding rollers can be changed in just a few seconds.

Thanks to new developments, ALMI has been able to achieve a grinding speed of 45 m/s with the updated AL150HS. As a result, the sanding belt has a longer service life, and faster grinding results in less heat in the material, resulting in less discolouration and fine dust.

Almi AL150HS Abrasive Tube Notching Machine 415v imageAlmi AL150HS Abrasive Tube Notching Machine 415v image
Video thumbnail showing the Almi AL150HS Abrasive Tube Notching Machine 415v
Almi AL150HS Abrasive Tube Notching Machine 415v image 3Almi AL150HS Abrasive Tube Notching Machine 415v image 3

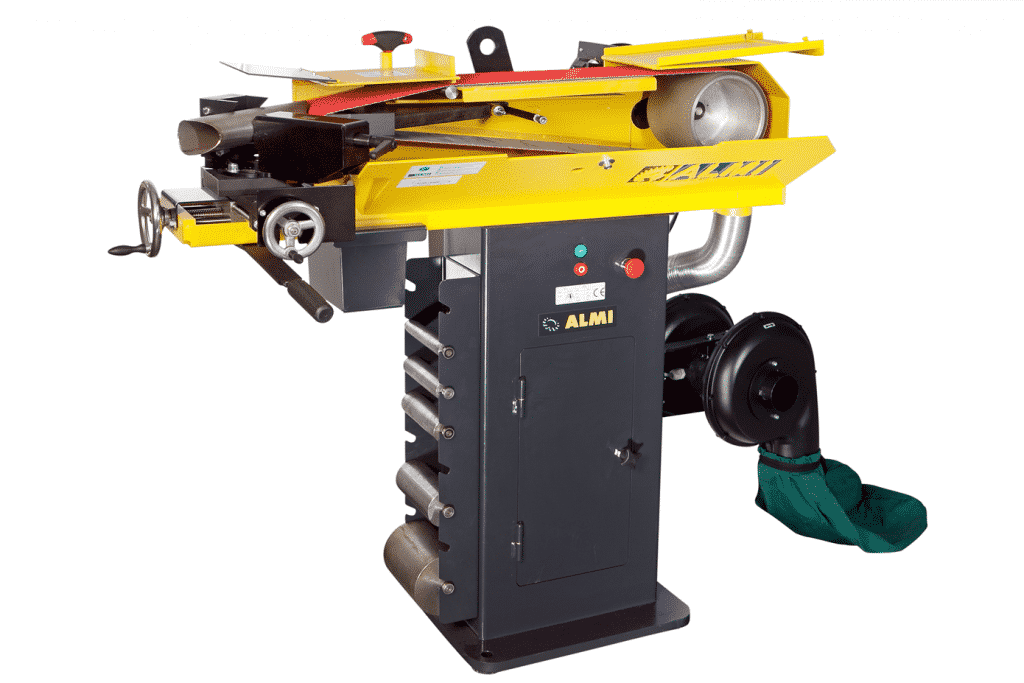

Front view Almi-AL150-Tube-Notcher-with-Side-OpenFront view Almi-AL150-Tube-Notcher-with-Side-Open

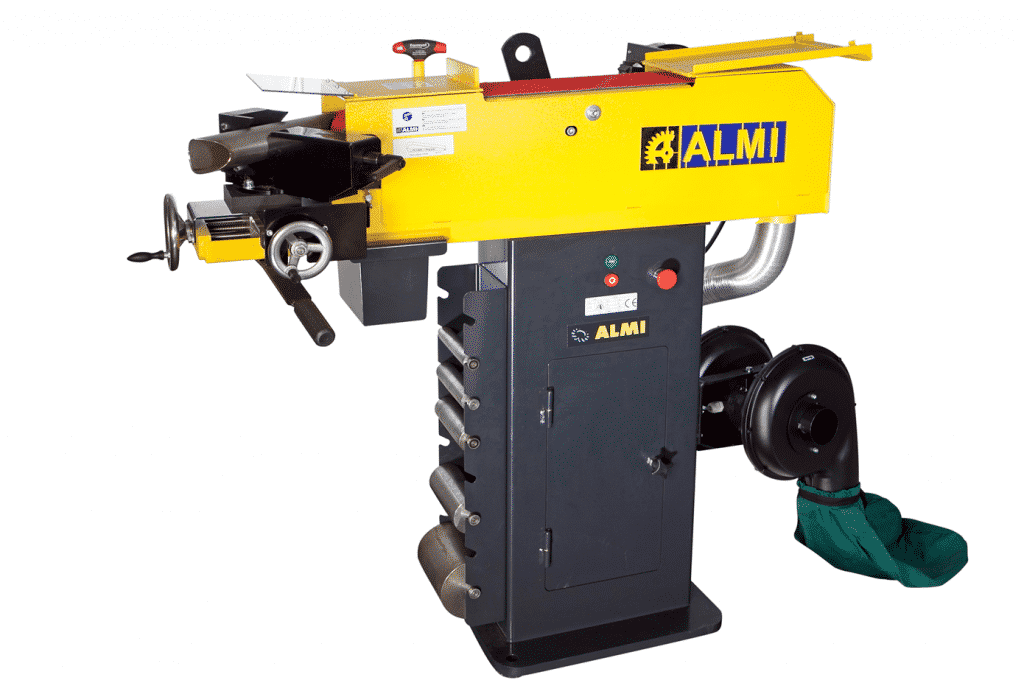

Front view Almi-AL150-Tube-Notcher-with-Dust-Collector-AttachmentFront view Almi-AL150-Tube-Notcher-with-Dust-Collector-Attachment

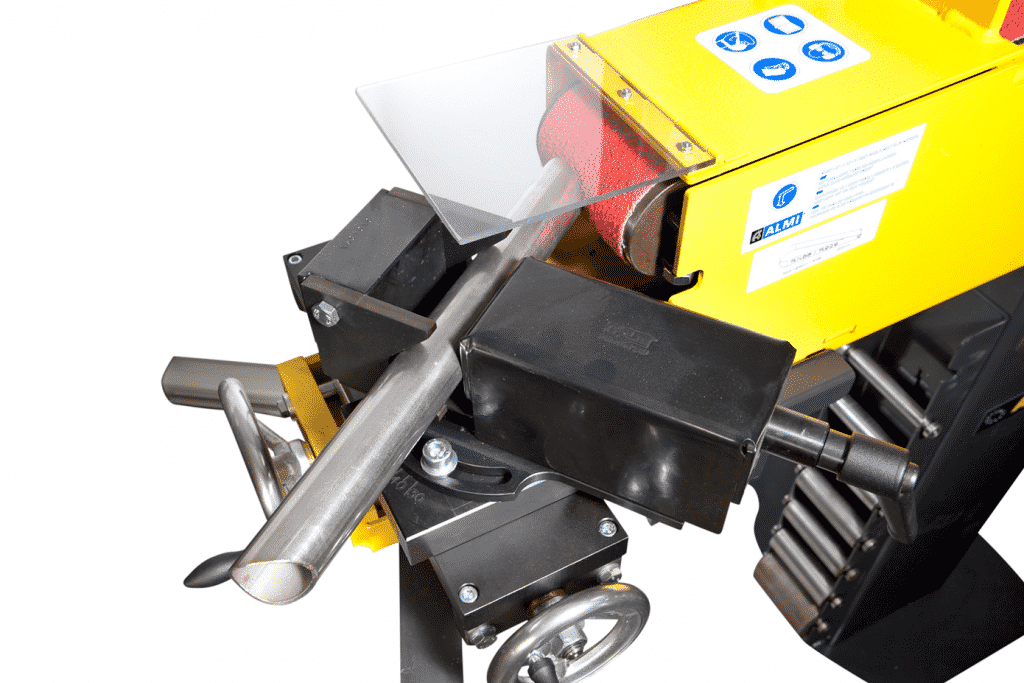

Detail Almi-AL150-Tube-Notcher-GrindingDetail Almi-AL150-Tube-Notcher-Grinding
Almi AL150HS Abrasive Tube Notching Machine 415v image 7Almi AL150HS Abrasive Tube Notching Machine 415v image 7
ModelAL150HS
CapacityØ20 – 114.3
Belt Speedm/s / rpm45 / 4300
Grinding angleº20 – 90
Belt Sizemm150 x 2000
OperationLever and handwheel
MotorkW4.0
Lengthmm1450
Widthmm900
Heightmm1260
Weightkg275

Features

  • Stable and accurate working
  • Fast and almost heat-free grinding of stainless steel
  • No grinding frames and discoloration of the material
  • Grinding rolls that can be exchanged quickly without tools
  • Quick change of grinding belts
  • Handy deburring by means of a deburring table
  • Left-handed and right-handed use
  • Cutting out any desired material
  • Lever or Handwheel operation
  • Grind any angle between 20º-90º

Options

  • Length stop
  • Dust extraction system
