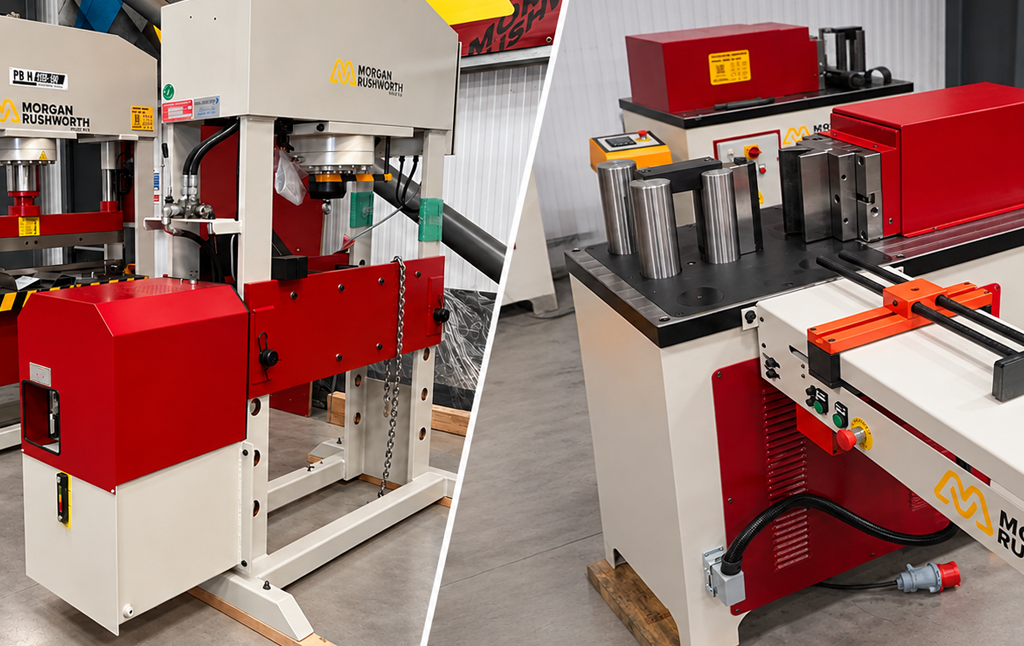

Both machines apply substantial force, but the direction of that force changes the way a part is loaded and supported. If you are deciding between a vertical H-frame press and a horizontal bending machine, start with the shape of your regular work, the tooling it needs and the space around the machine.
Vertical pressing in an H-frame
An H-frame press applies force through a ram above a working table or bed. It can be useful for pressing, assembly, straightening and a range of forming tasks with suitable tooling. The key checks are tonnage, width between uprights, daylight, stroke and how the component will be supported below the force.
If you routinely work on tall fixtures or press components into assemblies, the vertical arrangement may be natural. It can still be awkward for a long part if you cannot safely support the material extending beyond the frame.
Horizontal force and compact bending
A horizontal bending press presents the work on a horizontal table and applies force across it. This layout can be convenient for bends, straightening and other operations on bars, sections or compact components, depending on the tooling. It can give the operator a clear view of the part and its position on the table.
Neither machine automatically replaces a dedicated press brake for repeat folds across a long sheet. If bend length, repeatability and production volume are central to the job, compare the press brake range too.
Let the part settle the choice
Select three representative jobs: the largest part, the most common part and the one with the most difficult tooling. Sketch how each would sit on a vertical press and on a horizontal table. Include loading, clamping, support and removal, not just the pressing stroke. A job that is possible on both machines may be much easier to handle on one.
For sizing and force questions, start with our hydraulic H-frame press buyer’s guide. Contact Selmach with the component drawings and expected volumes to compare the layouts in a practical demonstration.
