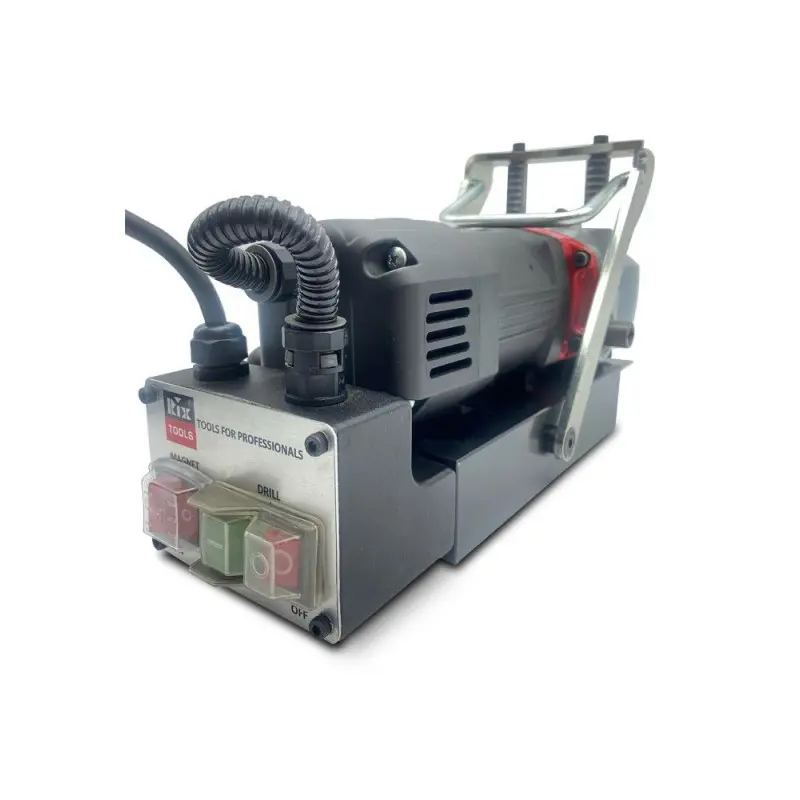

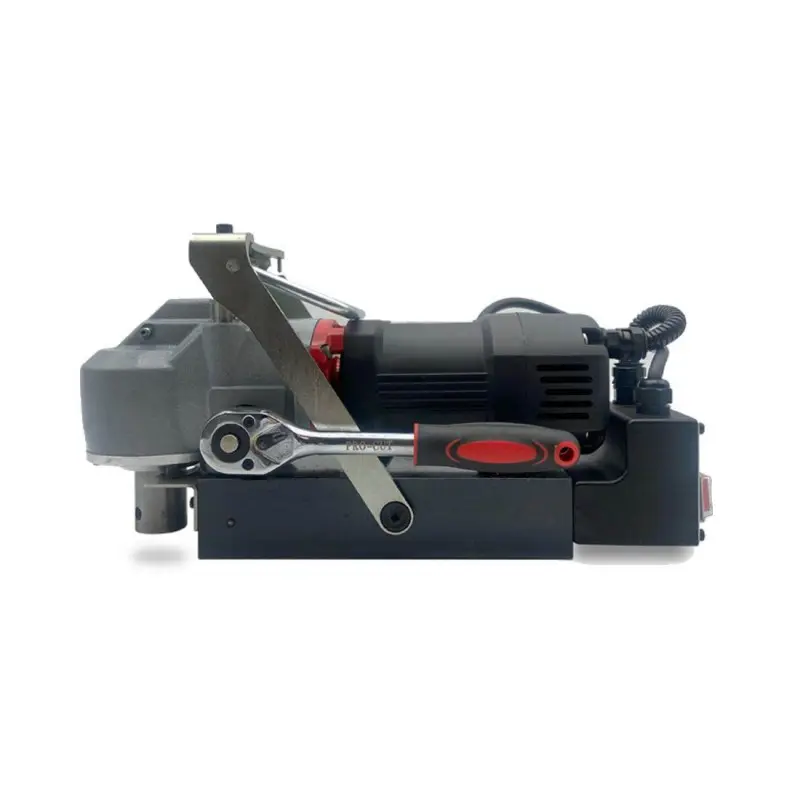

RIX40LP Low-Profile Magdrill – 110V / 240V

RIX40LP low profile broaching unit, ideal for drilling where normal accessibility is restricted. Capable of drilling up to 40.0mm Ø to a depth of 30mm. Ratchet lever operation both left & right, ideal for tight spaces with confined headroom.

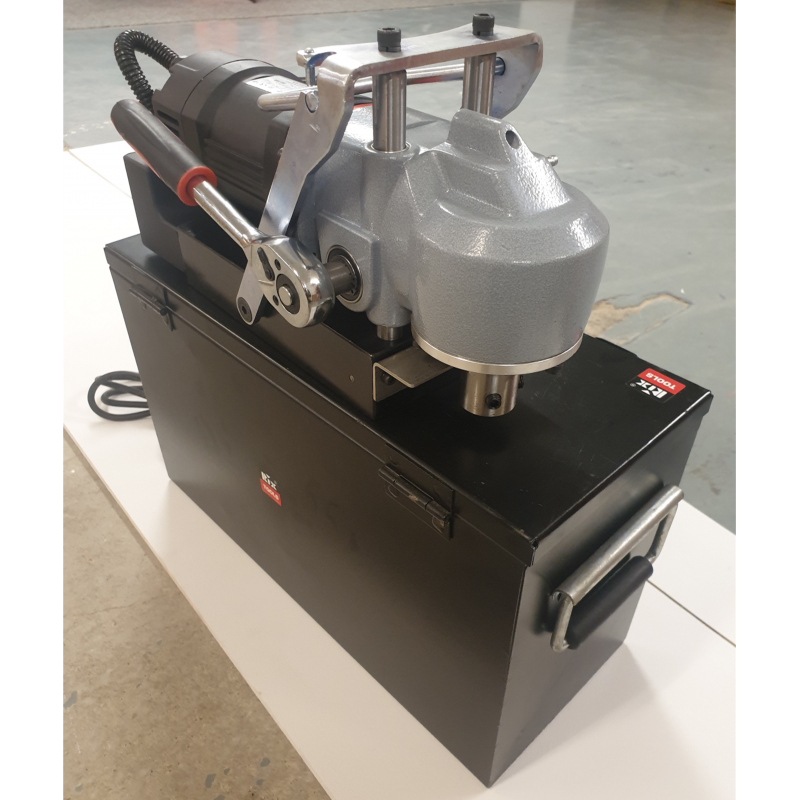

Supplied with “ammo style steel transport case” Guard, safety strap, ratchet Hex Keys. Tool pouch.



RIX40LP Low-Profile Magdrill – 110V / 240V imageRIX40LP Low-Profile Magdrill – 110V / 240V image
RIX40LP Low-Profile Magdrill – 110V / 240V image 3RIX40LP Low-Profile Magdrill – 110V / 240V image 3
RIX40LP Low-Profile Magdrill – 110V / 240V image 4RIX40LP Low-Profile Magdrill – 110V / 240V image 4
RIX40LP Low-Profile Magdrill – 110V / 240V image 5RIX40LP Low-Profile Magdrill – 110V / 240V image 5
RIX40LP Low-Profile Magdrill – 110V / 240V image 6RIX40LP Low-Profile Magdrill – 110V / 240V image 6

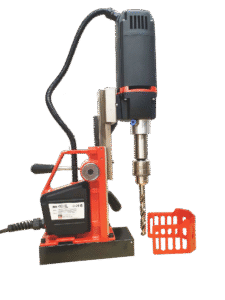

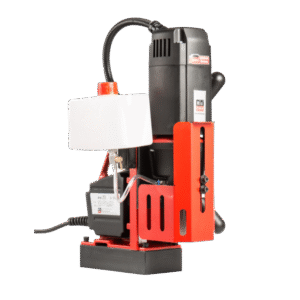

Specification Unit RIX 35 RIX40LP RIX40HL
Magnet Strength N 9,000 11,000 11,000
Motor Watts 1,050 1,300 1,020
Power Options V 110 / 240 110 / 240 110 / 240
Speed (No Load) rpm 400 450 400
Twist Drill Capacity mm 12 12 13
Cutter Capacity mm Ø 12 – 35 Ø 12 – 40 Ø 12 – 40
Cutter Depth mm 50 30 50
Arbour Mount mm 19mm Weldon 19mm Weldon 13mm Weldon
Stroke mm 117 46 110 + 100
Magnet Footprint mm 80 x 160 100 x 378 80 x 200
Weight kg 9.5 13.2 10



Features

  • Low-Profile
  • Capacity: Ø 12 – 40mm
  • Cutting Depth: 30mm
  • Weldon Shank : 19mm
  • Speed: 420RPM
  • Stroke: 46mm
  • Magnet Size: 100 x 378mm
  • Weight: 13.2kgs

Supplied with:

  • “Ammo Style” Steel Transport Case
  • Safety Strap
  • Ratchet Hex Keys

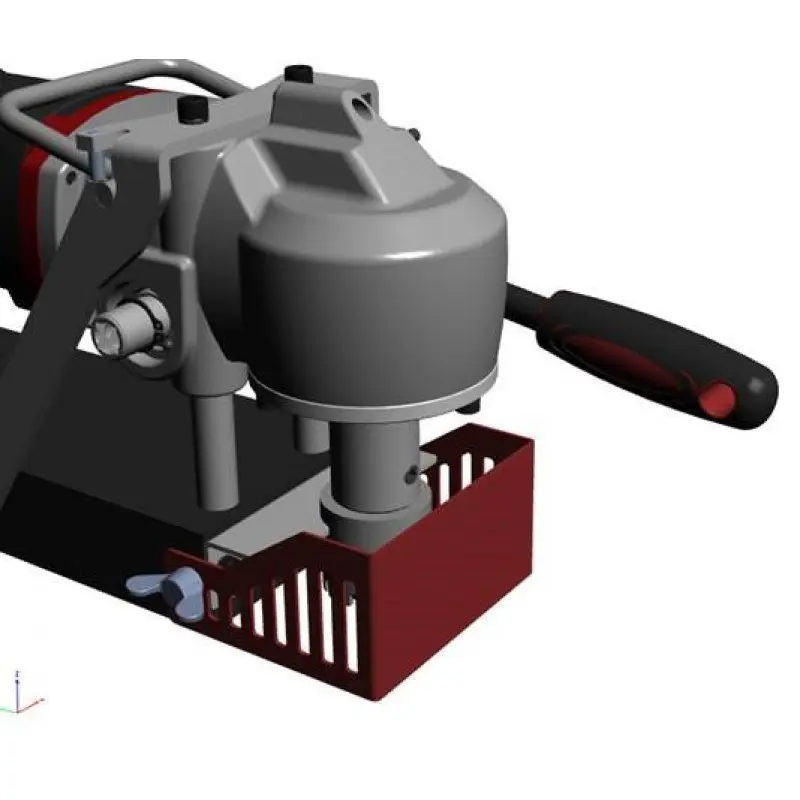

  • Safety Guard
  • User Guide



Options

  • Available in 110V or 240V
