RIX35 Compact Lightweight Magdrill – 110V / 240V

RIX35 Cut Out

RIX35 compact lightweight magnetic drill. Capable of drilling up to 35.00 mm Ø with both long & short series annular core cutter ( broach cutters ). The compact design and weight saving features make this unit one of the smallest and lightest in its class. It is ideal for overhead work and tight spaces with a minimum useable height of Just 39cm when fitted with a standard reach cutter.

Supplied complete with coolant tank, guard, safety strap, user instructions and transport case.

RIX35 Cut Out
RIX35 Cut OutRIX35 Cut Out

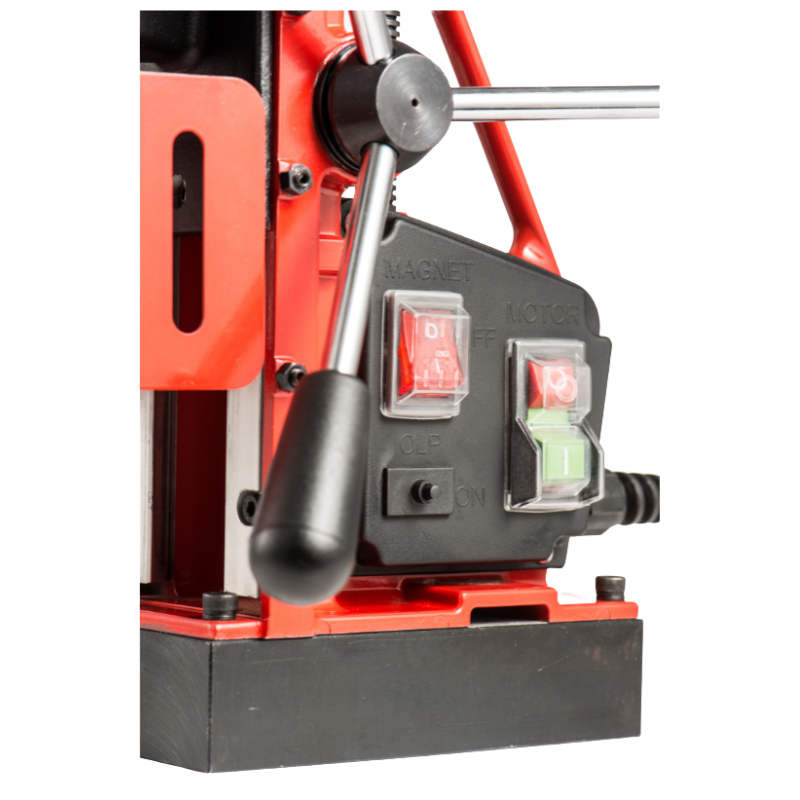

RIX35 ControlRIX35 Control
RIX35 Whole DrillRIX35 Whole Drill

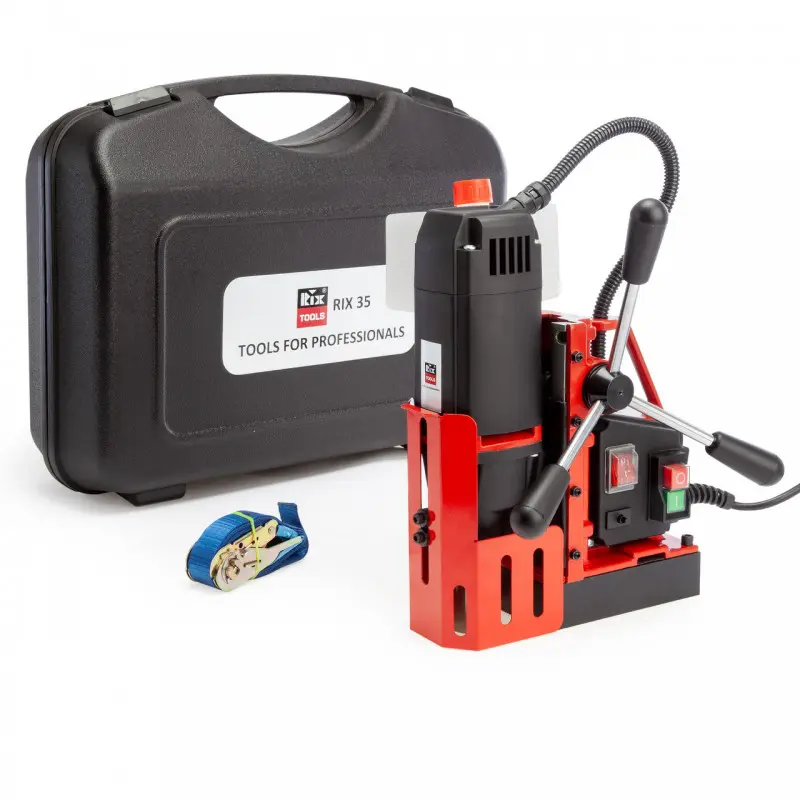

RIX35 SetRIX35 Set
Specification Unit RIX 35 RIX40LP RIX40HL
Magnet Strength N 9,000 11,000 11,000
Motor Watts 1,050 1,300 1,020
Power Options V 110 / 240 110 / 240 110 / 240
Speed (No Load) rpm 400 450 400
Twist Drill Capacity mm 12 12 13
Cutter Capacity mm Ø 12 – 35 Ø 12 – 40 Ø 12 – 40
Cutter Depth mm 50 30 50
Arbour Mount mm 19mm Weldon 19mm Weldon 13mm Weldon
Stroke mm 117 46 110 + 100
Magnet Footprint mm 80 x 160 100 x 378 80 x 200
Weight kg 9.5 13.2 10

Features

  • Compact Size
  • Capacity: Ø 12 – 35mm
  • Cutting Depth: 50mm
  • Weldon Shank : 19mm
  • Speed: 400RPM
  • Stroke: 117mm
  • Magnet Size: 80 x 160mm
  • Weight: 9.3kgs

Supplied with:

  • Transport Case
  • Safety Strap
  • Coolant Tank and Hose
  • Safety Guard
  • User Guide

Options

  • Available in 110V or 240V

Frequently Asked Questions

What hole diameters can the RIX35 magnetic drill cut?

The RIX35 is specified for annular cutters from 12 to 35 mm diameter, with a maximum cutting depth of 50 mm. Annular cutters remove a ring of metal rather than drilling the whole hole, making them useful for structural steel and fabrication work. Confirm the cutter size, steel grade and required depth before ordering.

Is the RIX35 suitable for drilling in tight spaces or overhead?

Its compact design is intended for restricted-access steelwork. Selmach quotes a minimum usable height of approximately 390 mm with a standard-reach cutter. Check the full working clearance, including the feed handle and cable, and use the supplied safety strap and the manufacturer’s approved procedure for elevated or overhead work.

What cutters and shanks fit the RIX35?

Selmach lists a 19 mm Weldon cutter mounting for the RIX35. Choose annular cutters with the matching shank and an appropriate pilot pin for the cutter and hole depth. Check cutter fit, retention and lubrication against the machine and tooling instructions before use.

Can the RIX35 use conventional twist drills?

The published comparison table lists a twist-drill capacity of up to 12 mm. Using twist drills may require a compatible holder or chuck arrangement; do not assume every chuck is included. Ask Selmach to confirm the correct accessory and available vertical clearance for your intended drill sizes.

How strong is the RIX35 magnetic base?

The published RIX35 magnet holding-force rating is 9,000 N, with an 80 x 160 mm magnet footprint. Actual holding performance depends on clean, flat ferrous material of suitable thickness. Never rely on the nominal rating alone; check the manual’s minimum material requirements and use the safety strap.

Is the RIX35 available in 110V and 240V versions?

Yes. Selmach lists both 110V and 240V supply options for the RIX35. Select the version that matches your site or workshop electrical arrangements, including any transformer and extension-lead requirements. Confirm the voltage when requesting a quotation.

What routine maintenance does the RIX35 need?

Before each job, check the power lead, magnet contact face, cutter retention, guard, feed movement and safety strap. Keep the base free of swarf, use suitable cutting fluid and remove chips only after the cutter has stopped. Follow the RIX35 manual for inspection and servicing intervals.

Can Selmach help with servicing or a Service Plan for the RIX35?

Selmach offers after-sales technical support for its magnetic drilling range. Ask the service team whether an optional Service Plan is available for the RIX35 and what it would cover, including inspections, consumables and repair arrangements. Confirm eligibility and terms before purchasing.
