RIX40HL High Lift Magdrill – 110V / 240V

RIX40HL high lift magnetic drill. Capable of drilling up to 40.00 mm Ø with both long & short series annular core cutter (broach cutters).

The high lift system allows a further 100mm of stroke compared to the standard, ideal for working on thicker beams or areas where you need the additional stroke length. The additional lift means you can add a standard drill chuck for smaller holes.

Supplied complete with coolant tank, guard, safety strap, user instructions and transport case.

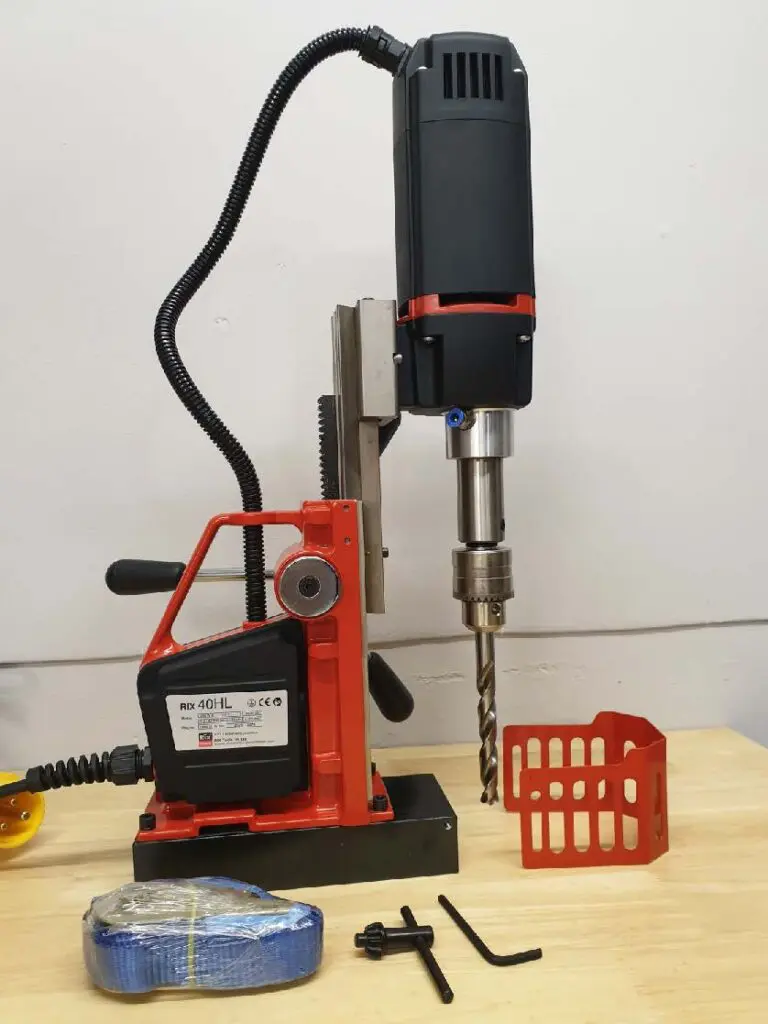

RIX40HL High Lift Magdrill – 110V / 240V imageRIX40HL High Lift Magdrill – 110V / 240V image

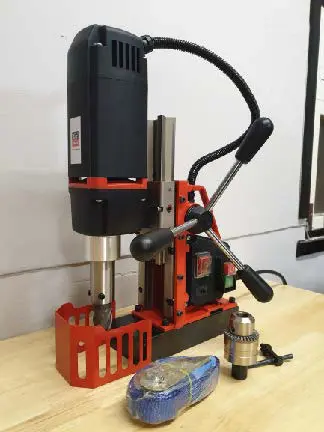

RIX40HL High Lift Magdrill – 110V / 240V image 2RIX40HL High Lift Magdrill – 110V / 240V image 2

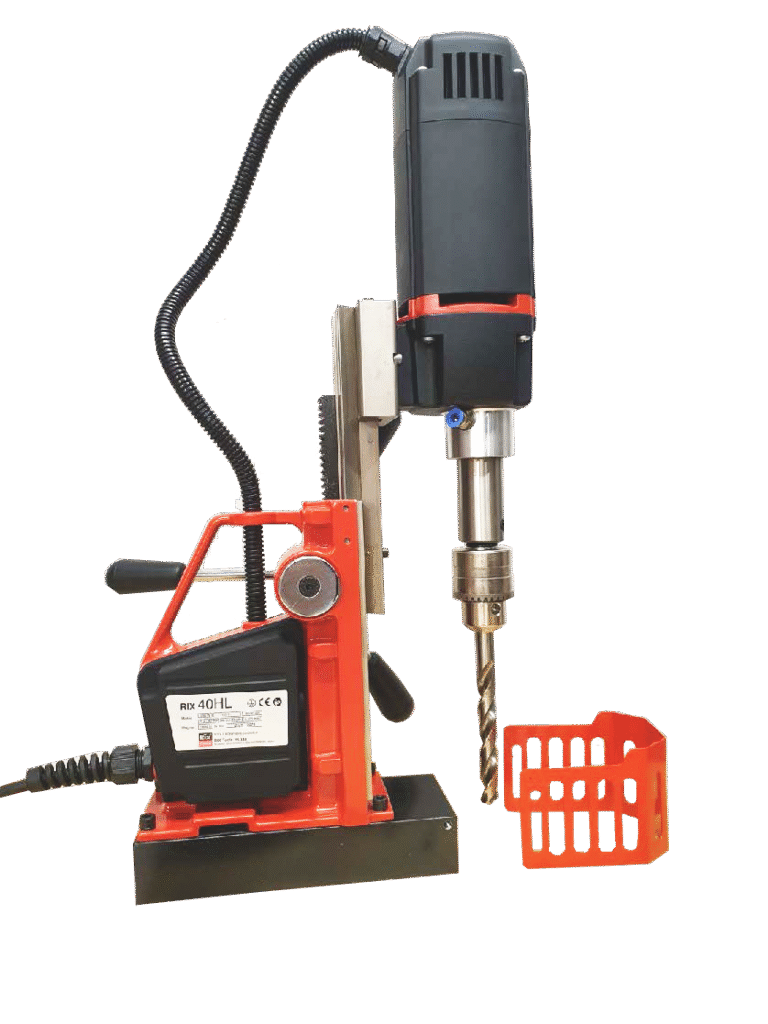

RIX40HL High Lift Magdrill – 110V / 240V image 3RIX40HL High Lift Magdrill – 110V / 240V image 3

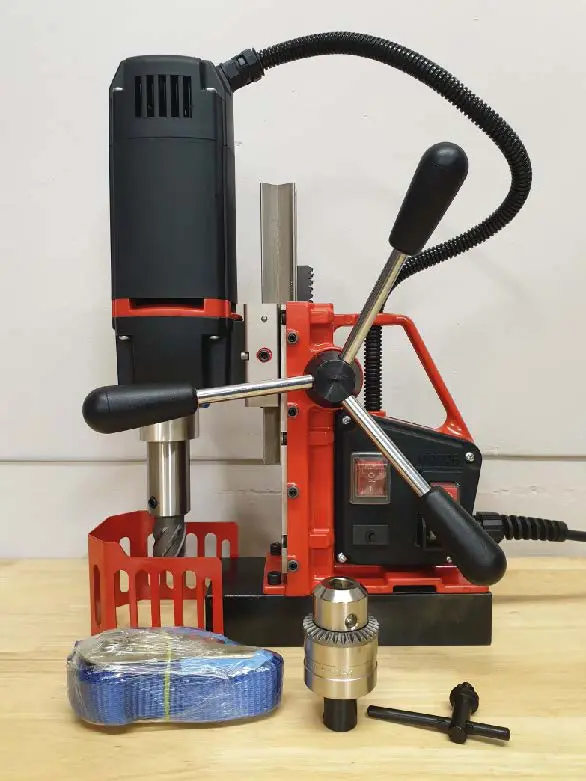

RIX40HL High Lift Magdrill – 110V / 240V image 4RIX40HL High Lift Magdrill – 110V / 240V image 4
RIX40HL High Lift Magdrill – 110V / 240V image 5RIX40HL High Lift Magdrill – 110V / 240V image 5
Specification Unit RIX 35 RIX40LP RIX40HL
Magnet Strength N 9,000 11,000 11,000
Motor Watts 1,050 1,300 1,020
Power Options V 110 / 240 110 / 240 110 / 240
Speed (No Load) rpm 400 450 400
Twist Drill Capacity mm 12 12 13
Cutter Capacity mm Ø 12 – 35 Ø 12 – 40 Ø 12 – 40
Cutter Depth mm 50 30 50
Arbour Mount mm 19mm Weldon 19mm Weldon 13mm Weldon
Stroke mm 117 46 110 + 100
Magnet Footprint mm 80 x 160 100 x 378 80 x 200
Weight kg 9.5 13.2 10

Features

  • High Lift (Extended Stroke)
  • Capacity: Ø 12 – 40mm
  • Cutting Depth: 50mm
  • Weldon Shank : 13mm
  • Speed: 400RPM
  • Stroke: 110 + 100mm
  • Magnet Size: 80 x 200mm
  • Weight: 10kgs

Supplied with:

  • Transport Case
  • Safety Strap
  • Coolant Tank and Hose
  • Safety Guard
  • User Guide

Options

  • Available in 110V or 240V
