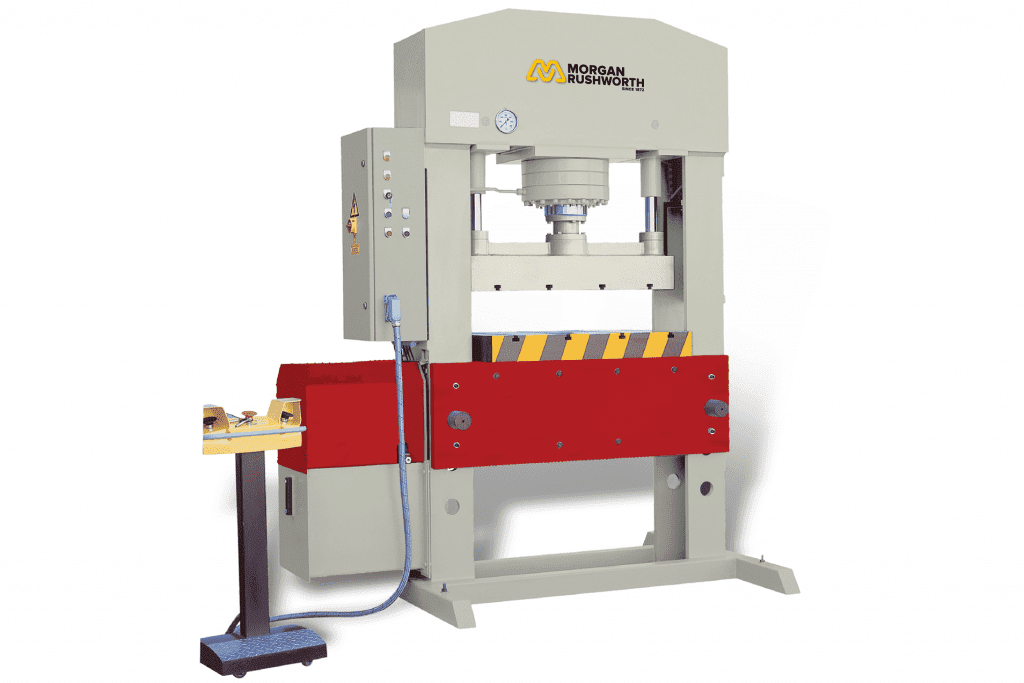

Morgan Rushworth HFPX Hydraulic H Frame Press 415V
The heavily constructed HFPX H-Frame presses are designed for a variety of bending, forming, pressing, and straightening operations. These models feature heavy-duty top and bottom ram plates with tee slots for secure tool fixture, adjustable limit switches for precise ram control, and twin guidance pistons for added stability.
With enhanced durability and flexibility, the HFPX series is ideal for demanding tasks and customised tooling setups. Combining strength and precision, these presses offer reliable performance for both standard and specialised industrial applications.
| MODEL | Stock code | Power | Distance between Frames | Stroke | Advance speed | Working speed | Return speed | Motor power | Length | Width | Height | Weight |
| Tonnes | mm | mm | mm/sec | mm/sec | mm/sec | kW | mm | mm | mm | Kg | ||
| HFPX 1020/100 | M4512 | 100 | 1020 | 300 | 8 | 5 | 10 | 7.5 | 2100 | 1000 | 2270 | 1985 |
| HFPX 1520/100 | M4513 | 100 | 1520 | 300 | 8 | 5 | 10 | 7.5 | 2600 | 1000 | 2400 | 2500 |
| HFPX 1020/150 | M4514 | 150 | 1020 | 300 | 9 | 5 | 10 | 11 | 2100 | 1000 | 2270 | 2450 |
| HFPX 1520/150 | M4515 | 150 | 1520 | 300 | 9 | 5 | 10 | 11 | 2600 | 1000 | 2400 | 3200 |
Features
- Easily adjusted bed height with two hardened pins
- Top and bottom ram plates with tee slots
- Quiet hydraulic system
- Hydraulic cylinder mounted above providing vertical pressure
- Twin guide pistons in addition to the main ram
- Stepless pressure adjustment
- Stepless stroke adjustment with limit switches controlling the ram stroke and return
- Control console with two handed operation
- Ideal for low or high volume operation
Options
- Digital Read Out
- Control console with Foot Pedal Control
- Press Brake Tooling
- 5-Face Die
- Customised T-Slot Table
- 750mm or 1000mm manual back gauge
HFPX H-Frame Presses: Built for Strength and Precision
The HFPX H-Frame presses are a powerful addition to the Morgan Rushworth range, designed to tackle a wide variety of bending, forming, pressing, and straightening tasks. Built on the foundation of the popular HFP series, the HFPX presses incorporate advanced features to deliver exceptional strength, precision, and versatility for industrial applications. These presses are ideal for workshops and production facilities that demand consistent performance and the ability to handle more complex or customised operations.
One of the standout features of the HFPX series is its heavy-duty top and bottom ram plates, which are equipped with tee slots to allow for secure and straightforward tool fixture. This makes the presses highly adaptable to a variety of tasks, as users can easily mount and configure the tooling required for specific projects. The robust ram plates are engineered to withstand the high pressures involved in industrial operations, ensuring durability and long-lasting performance even under demanding conditions.
Precision Control and Stability
The HFPX presses also feature adjustable limit switches that provide precise control over the ram stroke and return. This level of control is crucial for ensuring accuracy during operation, allowing users to achieve consistent and repeatable results. Whether working on small, intricate tasks or larger-scale projects, operators can easily adjust the machine to suit their specific requirements. This flexibility enhances productivity and reduces the risk of errors, making the HFPX series an invaluable tool for industrial applications.
In addition to the adjustable limit switches, the HFPX presses are equipped with twin guidance pistons that work alongside the main ram. These guidance pistons ensure smooth and stable operation, reducing vibrations and improving the overall accuracy of the machine. This added stability is particularly beneficial for tasks that require a high degree of precision, such as forming complex shapes or working with delicate materials. The combination of precision controls and enhanced stability sets the HFPX series apart as a reliable and efficient solution for diverse industrial needs.
Versatility Across Applications
The HFPX presses are designed to be versatile, making them suitable for a wide range of industries, including metal fabrication, automotive manufacturing, and general engineering. Their ability to handle various materials and operations, from bending and forming to pressing and straightening, ensures they can adapt to the unique demands of different projects. This versatility reduces the need for multiple specialised machines, saving both space and resources for businesses.
Moreover, the inclusion of tee slots on the ram plates enhances the machine’s ability to accommodate customised tooling setups. This makes the HFPX series an excellent choice for workshops that frequently work on bespoke or specialised projects. Whether handling standard operations or more complex tasks, the HFPX presses deliver consistent and reliable results.
Built for Durability and Efficiency
Durability is a key characteristic of the HFPX H-Frame presses. The reinforced ram plates and robust frame construction are designed to handle heavy-duty use in industrial environments. These machines are built to withstand the rigours of daily operation, providing a reliable solution that businesses can depend on for years to come. The durable design not only ensures longevity but also minimises maintenance requirements, reducing downtime and keeping operations running smoothly.
In terms of efficiency, the HFPX series is engineered to maximise productivity while maintaining safety. The precise control offered by the adjustable limit switches and the stability provided by the twin guidance pistons allow operators to work quickly and accurately. This combination of speed and precision enhances workflow efficiency, helping businesses meet tight deadlines and increase output.
Safety and Ease of Use
Operator safety is a priority in the design of the HFPX H-Frame presses. The inclusion of adjustable controls and a user-friendly interface ensures that the machine can be operated safely and efficiently. The clear layout of the controls allows operators to easily adjust settings to suit the specific requirements of their tasks, reducing the risk of errors and accidents.
Additionally, the tee slots on the ram plates simplify the process of mounting and securing tools, making setup quick and hassle-free. This ease of use is especially beneficial for workshops with high turnover rates or those that frequently switch between different operations. The combination of safety features and user-friendly design makes the HFPX presses an ideal choice for businesses looking to enhance their operational efficiency while maintaining a safe working environment.
A Practical Investment for Modern Workshops
The HFPX H-Frame presses represent a practical and cost-effective investment for modern workshops and industrial facilities. By combining strength, precision, and versatility, these machines offer excellent value for money. Their ability to handle a wide range of tasks reduces the need for multiple machines, saving space and resources while enhancing productivity.
For businesses that require reliable equipment to meet the challenges of modern manufacturing and fabrication, the HFPX series is an ideal solution. Its robust construction, advanced features, and user-friendly design make it a valuable addition to any workshop, providing consistent performance and adaptability for a variety of applications.
Conclusion
The Morgan Rushworth HFPX H-Frame presses are a testament to the brand’s commitment to quality and innovation. Designed to handle demanding industrial tasks with precision and reliability, these presses are a versatile and durable solution for businesses across various industries. Whether you’re looking for a machine to perform standard operations or handle customised projects, the HFPX series offers the strength and flexibility needed to get the job done.
With features like heavy-duty ram plates with tee slots, adjustable limit switches, and twin guidance pistons, the HFPX presses combine advanced functionality with user-friendly operation. Their robust design ensures long-lasting performance, while their adaptability makes them suitable for a wide range of applications. For workshops seeking to enhance their capabilities and efficiency, the Morgan Rushworth HFPX H-Frame presses are an investment that delivers exceptional results, time and time again.
