Euroboor ECO.36 Low Profile Magnetic Drilling Machine 110V

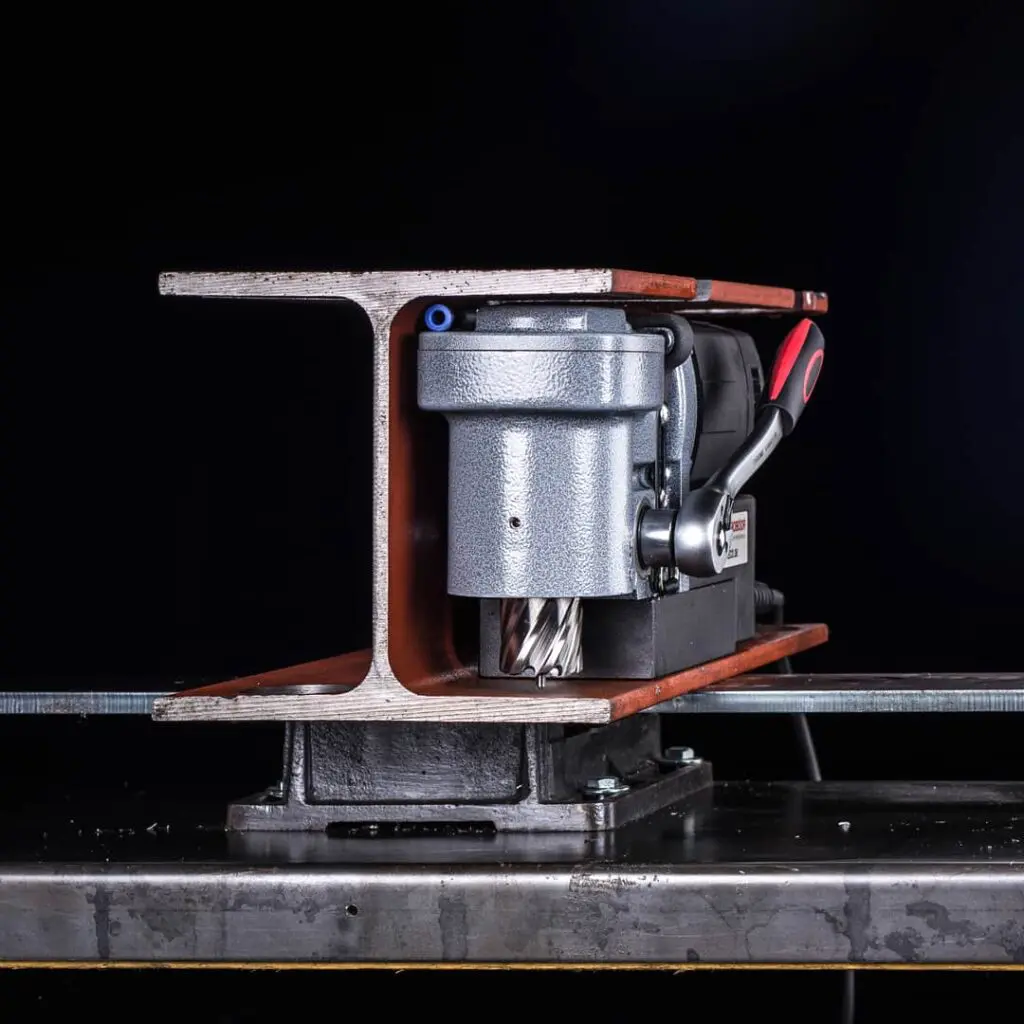

The Euroboor ECO.36 magnetic core drilling machine is the lowest drilling machine in the market, measuring only 165 mm in height. This magnetic core drilling machine is perfect for drilling in spaces with limited heights such as H-beams, steel structures, plates, profiles, etc. The portable ECO.36 is equipped with a powerful magnet, user friendly Quick Connect cutter fitment system, and easy release / lock feed handle for both left and right operation.
| Model | Euroboor ECO.36 | |
| Clamping force | kgs | 1,200 |
| Motor | Watts | 1,100 |
| Speed | rpm | 700 |
| Cutter Capacity | mm | 12 x 36 |
| Cutting Depth | mm | 50 |
| Twist Drill Capacity | mm | 1 – 14 |
| Counter Bore | mm | 10 – 40 |
| Magnet Foot | mm | 80 x 160 |
| Length | mm | 310 |
| Width | mm | 135 |
| Height | mm | 165 |
| Weight | kg | 10.3 |
Features
- Max Capacity Diameter x Depth Of Cut : 36x50mm
- Weldon Shank : 19mm
- Magnetic Adhesion : 1100kgs
- Low Profile for in-beam cutting
- Integrated motor cable
- One-speed gearbox
- User friendly Quick-Connect cutter fitment system
- Carrying handle and safety strap attachment
- Right/left mount ability of detachable ratchet feed handle
- Integrated tool cooling and lubrication
Options
