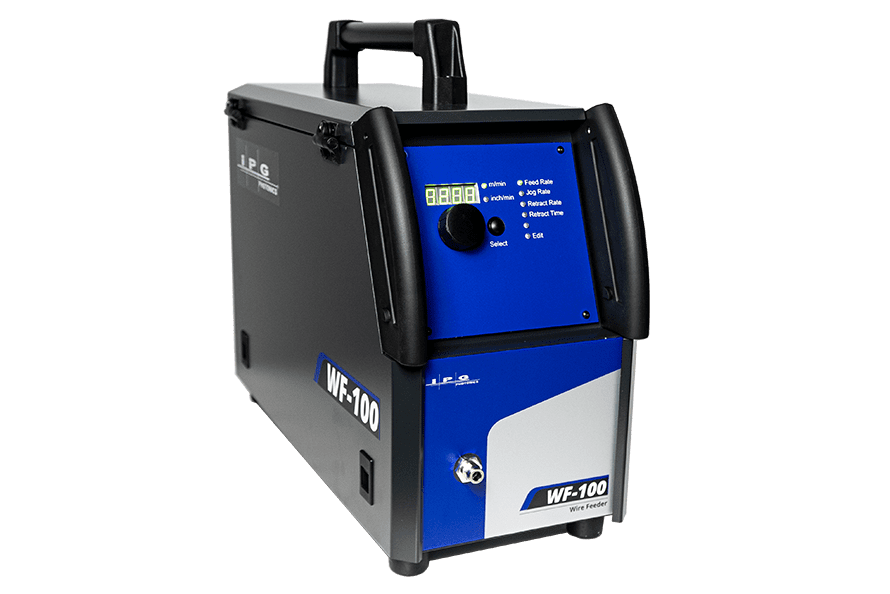

LightWELD WF-100 Wire Feeder for Laser Welding

The LightWELD™ WF-100 is a purpose-built wire feeding unit to be paired with the IPG LightWELD™ Laser Welding systems. Two of these can be paired for dual-wire feeding with the LightWELD™ systems too.

With variable feeding rates and capable of utilising a range of wire reels 0.8mm to 1.6mm, including Steel, Stainless Steel, Aluminium and soft coloured metals. The simplified design of this wire feeder makes it perfectly suited for Laser Welding.

LightWELD WF-100 Wire Feeder for Laser Welding imageLightWELD WF-100 Wire Feeder for Laser Welding image
Video thumbnail showing the LightWELD WF-100 Wire Feeder for Laser Welding
LightWELD WF-100 Wire Feeder for Laser Welding image 3

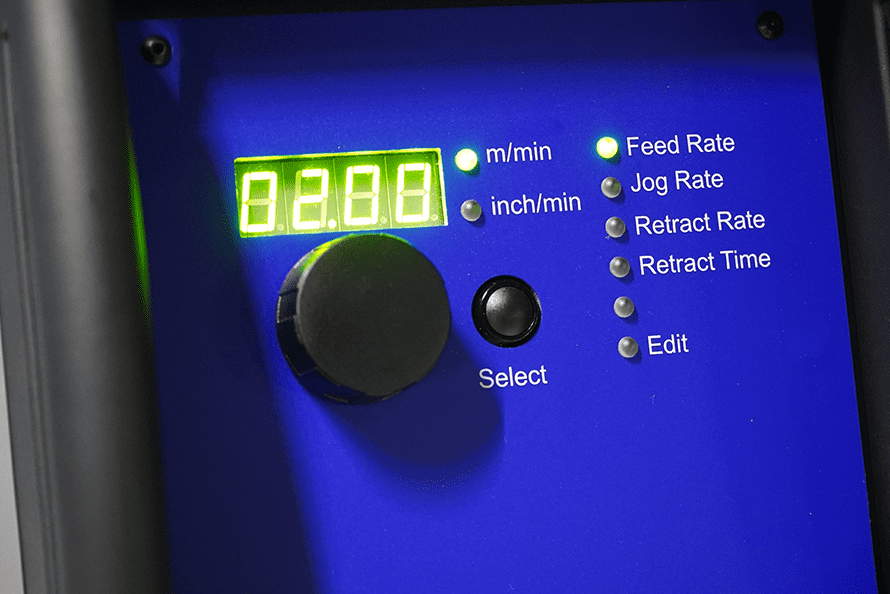

Digital Display for Feed Speed
LightWELD WF-100 Wire Feeder for Laser Welding image 3
LightWELD WF-100 Wire Feeder for Laser Welding image 4

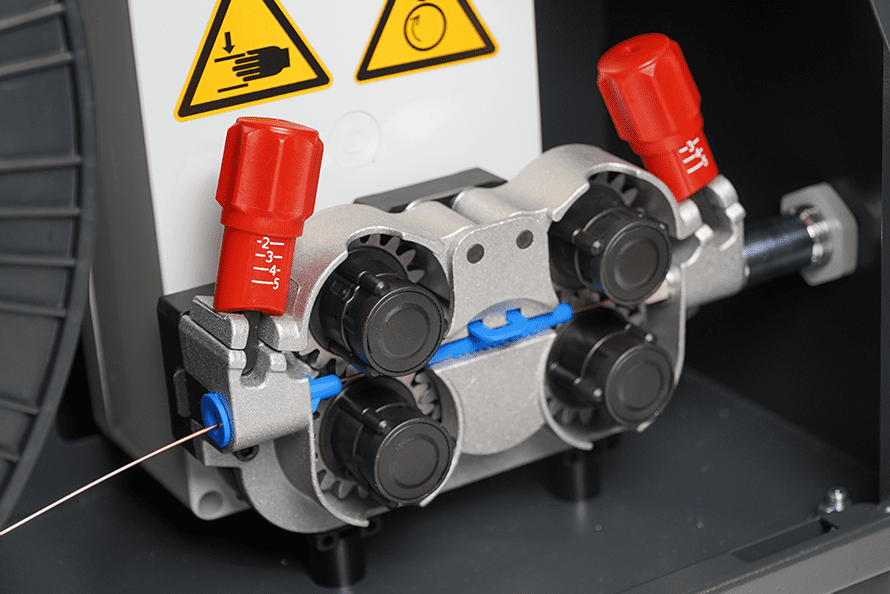

4x Adjustable Rollers
LightWELD WF-100 Wire Feeder for Laser Welding image 4
LightWELD WF-100 Wire Feeder for Laser Welding image 5

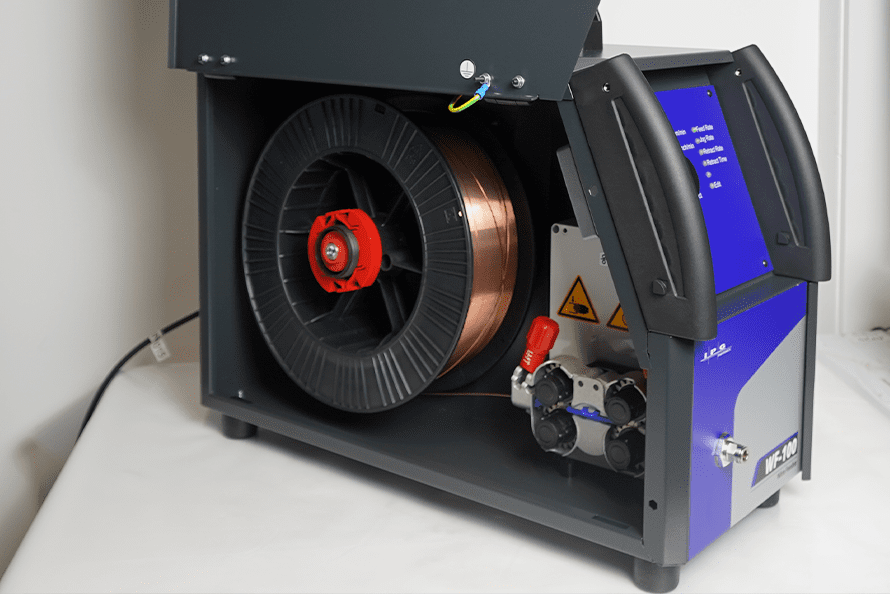

Internals
LightWELD WF-100 Wire Feeder for Laser Welding image 5
LightWELD WF-100 Wire Feeder for Laser Welding image 6

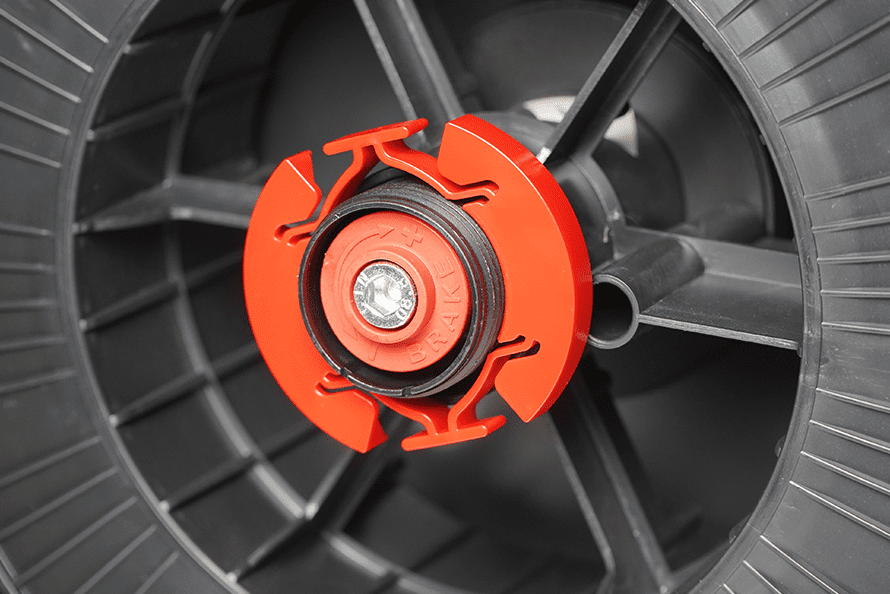

Wire Feeder Quick Release Holder
LightWELD WF-100 Wire Feeder for Laser Welding image 6
LightWELD WF-100 Wire Feeder for Laser Welding image 7

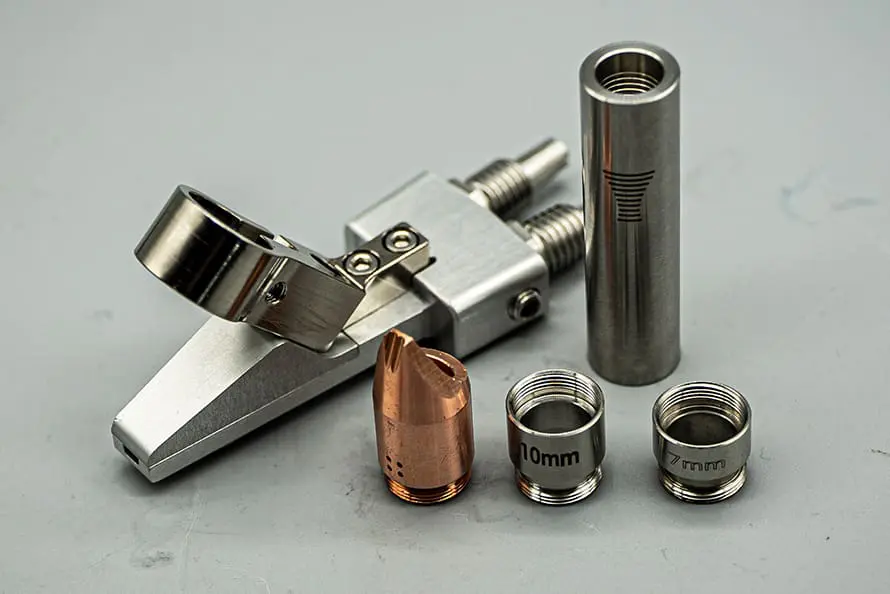

Complete Components of the Dual Wire Feeder Kit (Optional Accessory)
LightWELD WF-100 Wire Feeder for Laser Welding image 7
LightWELD WF-100 Wire Feeder for Laser Welding image 8

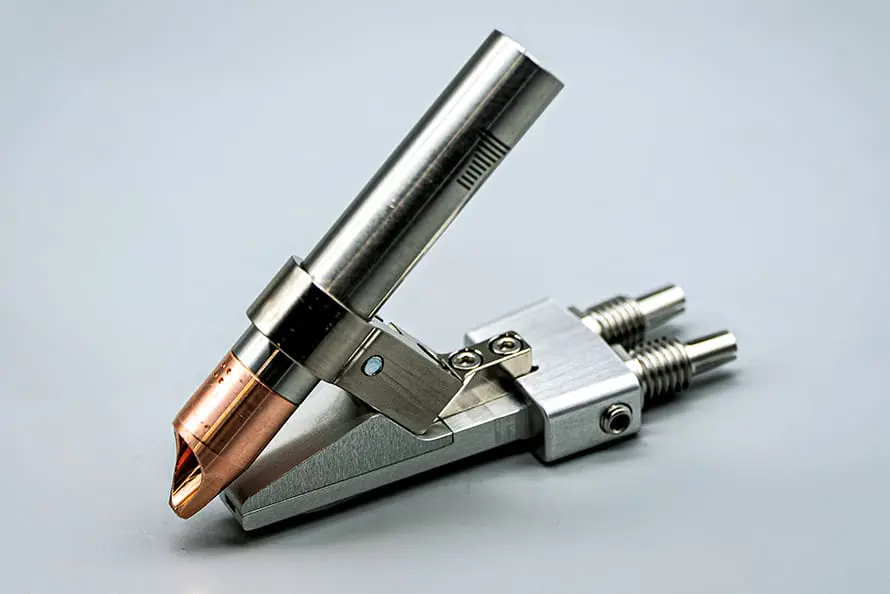

An assembled Dual Wire Feeder Kit for use with 2x WF-100s (Optional Accessory)
LightWELD WF-100 Wire Feeder for Laser Welding image 8
MODEL LightWELD WF-100
Stock Code IPG-1000
Power Feed V / Hz / Hz3 100 – 240 / 50 / 60
Power Cable Length mm 3,000
Wire Feed Speed m/min 0.3 – 5
Max. Wire Spool Capacity kg 16
Compatible Wire Mild Steel, Stainless Steel, Aluminium and Soft Coloured Metals
No. of Rollers 4
Width mm 270
Length mm 580
Height mm 560
Weight kg 20

Features

  • 3-Pin Mains 230v Plug
  • 3m Power Cord
  • Variable Feeding Speeds
  • 4 Rollers with adjustability for thicknesses
  • Up to 16kg Wire Spools
  • Ideally suited to Laser Welding

Options

  • Utilise 2x WF-100 Wire Feeders for Dual Wire Feeder Laser Welding

The LightWELD™ WF-100 is a high-performance wire feeding unit specifically engineered to integrate seamlessly with IPG LightWELD™ handheld laser welding systems. This laser welding wire feeder enhances productivity and precision across a wide range of laser welding applications. Designed for ease of use and versatility, the WF-100 allows for single or dual-wire feeding when paired with one or two units, making it ideal for complex or high-deposition laser welding projects.

This laser wire feeder offers fully adjustable feeding speeds and supports a variety of filler wire diameters ranging from 0.8mm to 1.6mm, accommodating popular materials such as mild steel, stainless steel, aluminium, and soft non-ferrous metals like copper and brass. It is compatible with most industry-standard wire reel sizes, offering flexibility in workshop or production environments.

Engineered with a compact and simplified design, the WF-100 is lightweight, durable, and user-friendly—perfectly suited for manual laser welding tasks where consistency and control of filler material are crucial. Whether you’re working in automotive repair, metal fabrication, aerospace, or general manufacturing, the LightWELD™ WF-100 provides reliable, high-quality wire feeding to improve weld aesthetics and reduce post-weld finishing.

Ideal for use in:

  • Laser welding with filler wire

  • Handheld laser welding systems

  • Precision welding of thin metals

  • Aluminium laser welding

  • Stainless steel fabrication

  • High-speed welding processes
