Sterling STC460 HA NC Twin Column Automatic Bandsaw

The Sterling range of heavy duty bandsaws follow the traditional pattern of manual, semi automatic and fully automatic models. The STC models are of highly rigid twin column design and include options of both straight cutting and mitring models with capacities ranging from 320mm round up to a huge 1100mm round. Automatic material feed is offered in both the traditional roller feed design and the modern shuttle vice feed with CNC control. Models with inclined blades and mitring head configuration, particularly suited to structural work, are available. These include digital angle display and even powered mitring capability. All variations are finished to an exceptional standard and are constructed for a long working life.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

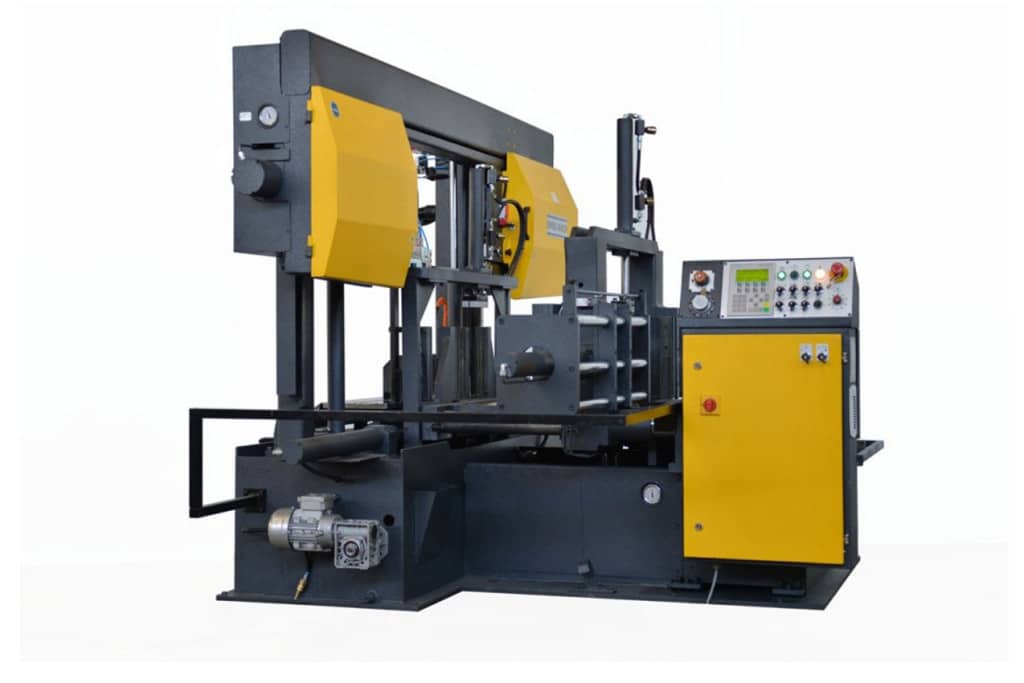

STC HA NC Twin Column Automatic BandsawSTC HA NC Twin Column Automatic Bandsaw

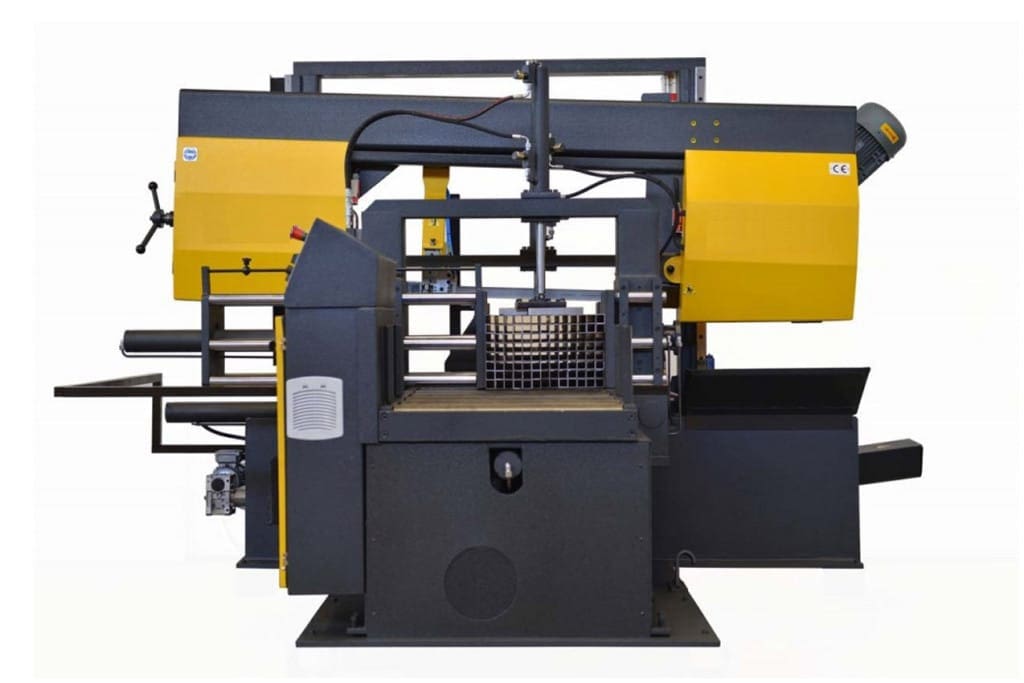

STC HA NC Twin Column Automatic Bandsaw Side ViewSTC HA NC Twin Column Automatic Bandsaw Side View

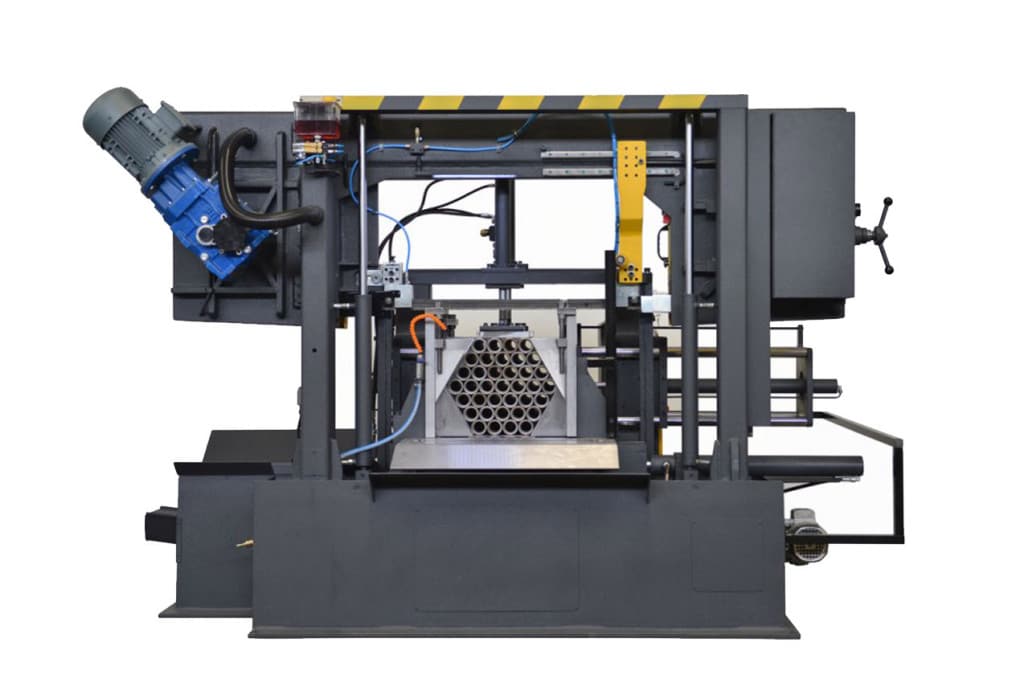

STC HA NC Twin Column Automatic Bandsaw Rear ViewSTC HA NC Twin Column Automatic Bandsaw Rear View
ILC Microspray MistILC Microspray Mist
Optional Chip ConveyorOptional Chip Conveyor
Laser PointerLaser Pointer
Sensitive Pressure Cutting GaugeSensitive Pressure Cutting Gauge
Double Hydraulic ViceDouble Hydraulic Vice
Hydraulic ViceHydraulic Vice
Top ClampingTop Clamping
MODELSTC460  HA NC
Capacities
Tube at 90°mm460
Square Section at 90°mm460
Rectangular Section / Beam at 90°mm610 x 460
Blade Sizemm5200 x 41 x 1.3
Cutting Speedm/min20 – 100
MotorKw4
Lengthmm3100
Widthmm2200
Heightmm1950
WeightKg2200
OperationVice Feed Automatic
ViceHydraulic
  • Heavy duty twin column rigidity with linear guidance bearing
  • Fully automatic cutting cycle with multi pass hydraulic vice
  • Hydraulic cutting  with variable pressure
  • Variable speed 20-100m/min
  • User friendly control panel with NC Control
  • Blade tension indicator
  • Laser cutting line
  • Spraymist lubrication
  • Hydraulic blade tension
  • Hydraulic top clamping for bundle cutting
  • Variable Vice Pressure
  • Chip Conveyor
  • Roller track & measuring systems
