Sterling SR Manual Pull Down Circular Saw 415V

Our range of Sterling manual pull-down circular saws come with the option of three vice types, depending on your requirements. The heavy-duty construction, and quality finish of the Sterling SRC and SRE range of circular sawing machines is outstanding. Models with 275, 315 and 350mm diameter blades are offered. Not only as the standard pull down version – with or without a pneumatic vice system – but also in a fast cutting, semi-automatic design for production cutting too. Double clamping and self-centring vices on the SRC ensure material is always securely clamped in the optimum cutting position. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We also supply blades and coolant too, these can be purchased directly off our tooling & consumables website.

Sterling SR Manual Pull Down Circular Saw 415V imageSterling SR Manual Pull Down Circular Saw 415V image
Video thumbnail showing the Sterling SR Manual Pull Down Circular Saw 415V
Sterling SR Manual Pull Down Circular Saw 415V image 3Sterling SR Manual Pull Down Circular Saw 415V image 3
Sterling SR Manual Pull Down Circular Saw 415V image 4Sterling SR Manual Pull Down Circular Saw 415V image 4

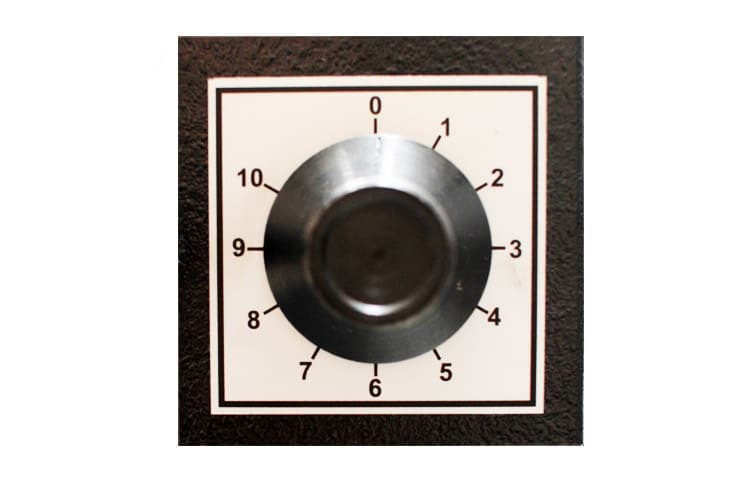

Control PanelControl Panel
Material Slitting FeatureMaterial Slitting Feature
Material Slitting FeatureMaterial Slitting Feature
Double Action Self Centering Vice
Double Action Self Centring Vice
Double Action Self Centering Vice
Eccentric Vice - Option
Eccentric Vice - Option
Eccentric Vice - Option
Sterling SR Manual Pull Down Circular Saw 415V image 10
Pneumatic Vice
Sterling SR Manual Pull Down Circular Saw 415V image 10
MODEL (Blade Width)     275    315   350
STOCKCODE 15340 (SRC R)
15341 (SRC X)
15349 (SRE R)
15350 SRE X)
15343 (SRC R)
15344 (SRC X)
15352 (SRE R)
15353 (SRE X)
15346 (SRC R)
15347 (SRC X)
15355 (SRE R)
15356 (SRE X)
Capacities  90° 45°  90° 45°  90° 45°
◯ Tube mm  85 70  105 90  115 110
□ Box Section mm 70 60 85 80 100 90
▭ Widest Cut mm 95 x 60 70 x 55 120 x 70 90 x 60 120 x 80 90 x 90
Blade Diameter mm 275 315 350
Blade Bore mm 32 32 32
Blade Speeds rpm 45 / 90 45 / 90  40 / 80
Motor kW  1.0 / 1.3 1.3 / 1.8 1.3 / 1.8
Length mm 1100 1100 1100
Width mm 600 600 600
Height mm 1400 1400 1400
Weight Kg 185 210 240
Operation Pull Down Pull Down Pull Down
Vice Manual (Rs)/ Pneumatic (Xs) Manual (Rs)/ Pneumatic (Xs) Manual (Rs)/ Pneumatic (Xs)

Features

  • Heavy duty construction
  • High quality gearbox in oil bath
  • Pull down operation
  • Double head return springs
  • Double clamping anti-burr vice
  • Self centring vice to ensure cutting is in optimum position
  • 2 speed motor
  • Electrical coolant pump
  • Coolant reservoir in base with return filter
  • Adjustable length stop bar

Options

  • Pneumatic double clamping anti burr device
  • Eccentric vice (SRE range)
  • Roller track and measuring systems

Our range of Sterling manual pull-down circular saws come with the option of three vice types, depending on your requirements. The heavy-duty construction, and quality finish of the Sterling SRC and SRE range of circular sawing machines is outstanding. Models with 275, 315 and 350mm diameter blades are offered. Not only as the standard pull down version – with or without a pneumatic vice system – but also in a fast cutting, semi-automatic design for production cutting too. Double clamping and self-centring vices on the SRC ensure material is always securely clamped in the optimum cutting position. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
