Sterling SR SA Semi-Automatic Circular Saw 415V

The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centring vices guarantees the material is always securely clamped in the optimum cutting position. Models with 275, 315 and 350mm diameter blades are offered as a fast cutting semi-automatic design, with pneumatic clamping for production cutting. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We can also supply blades and coolant too, these can be purchased directly off our tooling website.

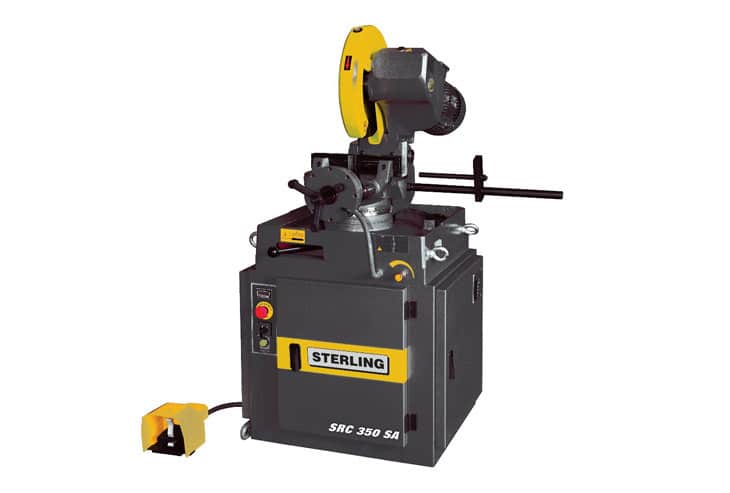

Sterling SR SA Semi-Automatic Circular Saw 415V imageSterling SR SA Semi-Automatic Circular Saw 415V image
Video thumbnail showing the Sterling SR SA Semi-Automatic Circular Saw 415V
Pneumatic VicePneumatic Vice
Cutting Feed AdjustmentCutting Feed Adjustment

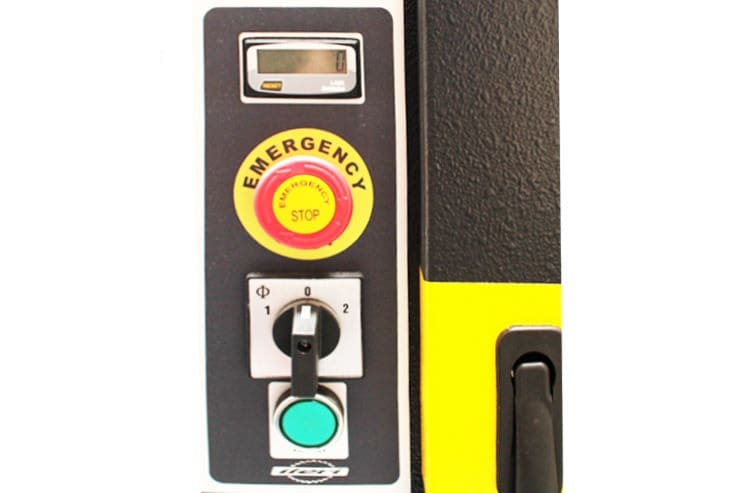

Control PanelControl Panel
Material Slitting FeatureMaterial Slitting Feature
Material Slitting FeatureMaterial Slitting Feature
Double Action Self Centering Vice
Double Action Self Centring Vice
Double Action Self Centering Vice
Sterling SR SA Semi-Automatic Circular Saw 415V image 9
Pneumatic Vice
Sterling SR SA Semi-Automatic Circular Saw 415V image 9
Eccentric Vice - Option
Eccentric Vice - Option
Eccentric Vice - Option
MODEL (BLADE WIDTH)     275 SA    315 SA    350 SA    350 SA Pro
STOCKCODE 15342 (SRC) / 15351 (SRE) 15345 (SRC) / 15354 (SRE) 15348 (SRC) / 15357 (SRE) 15348-Pro
Capacities  90° 45°  90° 45° 90° 45° 90° 45°
◯ Tube mm  85 70 100 90 115 110 115 110
□ Box Section mm 70 60 85 80 100 90 100 90
▭ Widest Cut mm 95 x 60 70 x 55 120 x 70 90 x 60 120 x 80 90 x 90 120 x 80 90 x 90
Blade Diameter mm 275 315 350 350
Blade Bore mm 32 32 32 32
Blade Speeds rpm 45 / 90 45 / 90 40 / 80 40 / 80
Motor kW 1.3 / 1.8 1.8 / 2.2 1.8 / 2.2 1.8 / 2.2
Length mm 1100 1100 1100 1100
Width mm 600 600 600 750
Height mm 1400 1400 1400 1400
Weight Kg 260 300 310 400
Operation Semi-Automatic Semi-Automatic Semi-Automatic Semi-Automatic
Vice Manual / Pneumatic Manual / Pneumatic Manual / Pneumatic Manual / Pneumatic

Features

  • Heavy duty construction
  • Semi-automatic cutting cycle
  • Downfeed pressure regulator
  • Adjustable height for cutting stroke
  • High quality gearbox in oil bath
  • Quick set mitring 45° left and right
  • Pneumatic vice operation
  • Double clamping anti-burr vice
  • Self centring vice to ensure cutting is in optimum position
  • 2 speed motor
  • Electrical coolant pump
  • Coolant reservoir in base with return filter
  • Adjustable length stop bar
  • Backlash Reduction System (SR 350SA Pro Only)

Options

  • Eccentric vice (SRE range)
  • Roller track and measuring systems
  • Slow feed motor (20 / 40 RPM)
  • Variable Speed (Inverter Driven 20-80 RPM)

The robust construction and quality finish of the Sterling SR range of semi-automatic circular sawing machines is unrivalled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centring vices guarantees the material is always securely clamped in the optimum cutting position. Models with 275, 315 and 350mm diameter blades are offered as a fast cutting semi-automatic design, with pneumatic clamping for production cutting. The eccentric vice of the SRE allows for specific applications that would otherwise be impossible on the centred vice.

We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
