Morgan Rushworth mVision Interactive CNC Hydraulic Press Brake

Main view Morgan-Rushworth-Mvision-Press-Brake

The mVision Pressbrake offers a completely new level of connectivity between the machine and the operator.

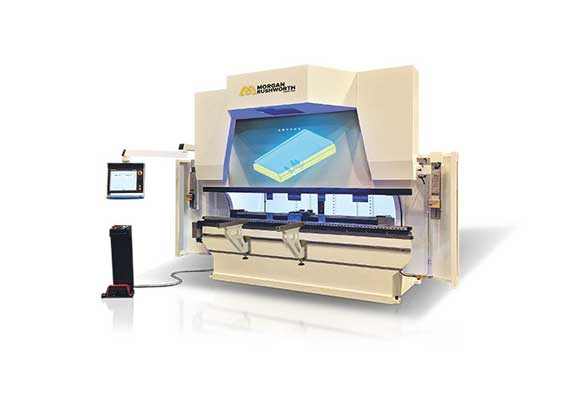

Complex 3D products are unfolded in the machine software and projected on to the folding beam of the press brake, while life size tooling profiles appear above the actual tools ensuring the correct set up is achieved every time.

In a production cycle, both bend sequence and part orientation are graphically indicated in life size as well as aligned with the correct section of the tooling.
With an mVision Press Brake training time will be reduced, wastage will be reduced and a high level of efficiency and productivity will be achieved.

Main view Morgan-Rushworth-Mvision-Press-Brake

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view Morgan-Rushworth-Mvision-Press-BrakeMain view Morgan-Rushworth-Mvision-Press-Brake
Video thumbnail showing the Morgan Rushworth mVision Interactive CNC Hydraulic Press Brake
MODEL mVision CNC 3100/120 mVision CNC 3100/160 mVision CNC 3100/200 mVision CNC 4100/160 mVision CNC 4100/200 mVision CNC 4100/240
Bending Power Tonne 120 160 200 160 200 240
Bending Length mm 3100 3100 3100 4100 4100 4100
Dist Between Columns mm 2550 2550 2550 3550 3550 3550
Y Rapid Speed mm/sec 160 160 150 170 160 150
Y Working Speed mm/sec 10 10 10 10 10 10
Y Return Speed mm/sec 130 130 130 120 110 100
Travel In X Axis mm 1000 1000 1000 1000 1000 1000
Speed Of X Axis mm/sec 330 330 330 330 330 330
Travel In R Axis (Optional) mm 160 160 160 160 160 160
Speed Of R Axis (Optional) mm/sec 240 240 240 240 240 240
No of Backgauge Fingers Amount 2 2 2 2 2 2
“Number Of Sheet Support Arms” Amount 2 2 2 2 2 2
Oil Capacity Li. 140 210 210 210 210 210
Motor Power kw 11 15 18.5 15 18.5 22
Stroke mm 260 260 260 260 260 260
Daylight mm 540 540 530 530 530 530
Throat Depth mm 410 410 410 410 410 410
Table Height mm 880 880 880 880 880 880
Table Width mm 60 60 90 60 90 90
Length mm 3850 3850 3850 4850 4850 4850
Width mm 1590 1600 1600 1600 1600 1610
Height mm 2905 2905 2905 2905 2905 2905
Weight kg 8400 9700 10000 12000 12000 14000

Features

• mVision patented on-beam projection system
• CAL software for unfolding and sequencing of bends
• Full control of graphics with hand motion creating a simulated
touch screen on the folding beam
• Scroll through screens, enlarge part view and rotate view all on
the folding beam
• View tooling set up and correct tool profiles in life size against
actual tools
• Full graphical 3D simulation of bending process in real time
• Delem DA69T graphical touchscreen CNC control
• Full synchronisation of Y1 + Y2 axes to +/- 0.01mm accuracy
• High precision linear scales for measurement of stroke depth

•CNC-controlled X axis ballscrew backgauge with servo motors
• Steel mono-block construction
• High approach and return speeds for production bending
• 2 sliding front support arms with linear guide rails for lateral
adjustment
• AKAS laser tooling guards
• Independent Tower Type Backgauge X1 +R1 + Z1, X2 +R2 +Z2
• CNC Motorised Anti Deflection Crowning System
• Hydraulic Top and Bottom Tool Clamping (WILA Style)

Options

  • Additional Sliding Front Arm
  • Brush Table for Front Support Arm
  • Parking Area on the side of the machine for Sliding Front Support Arms
  • CNC Sheet Follower Support Arm
  • Laser Angle Measuring System
  • Pneumatic Top Tool Clamping (Euro Style)
  • Pneumatic Bottom Tool Clamping (Euro Style)



The Benefits

  • Highly visual display of bend sequence and component orientation greatly increases speed of operation
  • Superior productivity as the next operation is immediately displayed without needing to refer to a separate
    control
  • Operators do not require a high level of experience as intuitive control removes the need for specific
    knowledge
  • Machine set up is simplified as tooling required for the current product is projected onto the beam in
    life size.
