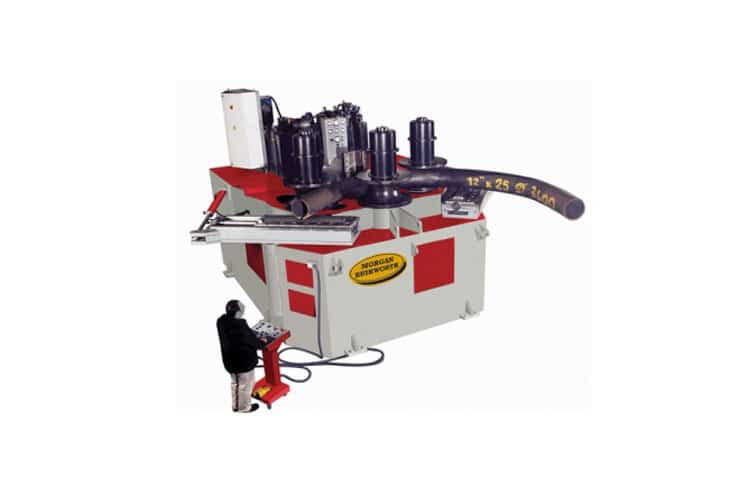

Morgan Rushworth HSR 550/800 Section Ring Rolling Machine 415v

The Morgan Rushworth HSR range of hydraulic large section bending machines are designed to roll various material sections and are available with shaft diameters from 180mm up to 360mm. These have twin rams powering both the back rolls providing pre-bending capability and the convenience of performing the bending operation with the material in the horizontal position. The standard rolls supplied with the machine are hardened and have been designed to bend most sections, avoiding the cost of additional tooling. Lateral guide rolls ensure straight and true bending, or if required can be adjusted in order to spiral the material. These machines are currently performing for some of the worlds most well known section rolling companies.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Morgan Rushworth HSR 360/800 Section Ring Rolling Machine 415vMorgan Rushworth HSR 360/800 Section Ring Rolling Machine 415v
Morgan Rushworth Section RollingMorgan Rushworth Section Rolling
Morgan Rushworth Section RollingMorgan Rushworth Section Rolling
Morgan Rushworth HSR 550/800 Section Ring Rolling Machine 415v image 3Morgan Rushworth HSR 550/800 Section Ring Rolling Machine 415v image 3
Flat Bar The Hard Way:460 x 60mm 2500 Dia / 300 x 90mm 1300 Dia
Flat Bar The Easy Way:650 x 120mm 1700 Dia
Solid Square:280 x 280mm 2500 Dia
Solid Round:300mm 2500 Dia
Tube – Thick Wall:558.8 x 15.88mm 15000 Dia
Square Tube:450 x 20mm
Angle – Leg Out:200 x 26mm 1300 Dia
Angle – Leg In:200 x 26mm 1500 Dia
T Section – Leg Out:200 x 28mm 1300 Dia
T Section – Leg In:200 x 30mm 2000 Dia
T Section – Side:200 x 20mm 1800 Dia
Channel – Leg Out:UNP 1000 3500 Dia
Channel – Leg In:UNP 1000 3500 Dia
Channel – Side:UNP 400 35000 Dia
I Beam – Upright:INP 1000 5000 Dia
I Beam – Side:INP 550 18000 Dia
H Beam – Upright:A: 1000mm 5000 Dia / B: 1000mm 7000 Dia
H Beam – Side:A: 550mm 40000 Dia / B: 500mm 25000 Dia
Max Section Modulus cm3:5500 cm3
Motor: Kw99 Kw
Roll Diameter:800mm
Shaft Diameter:360 / 360mm
Bending Speed:7 m/min
Weight:61500 Kg
Width:4820mm
Length:6580mm
Height:4310mm

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking
  • Hardened rolls
  • Moveable control panel
  • Digital read out indicating both back rolls position
  • Overload protection device
  • Hydraulically powered rotation
  • Hydraulically adjusted lateral guide rolls in 2 axis
  • Variable speed of rotation
  • Tube/profile rolls
  • Variable speed of rotation
  • Spiral bending device
  • NC control system
  • CNC control system
  • Digital display for guide rolls
  • I-U-H profile pulling system
