Morgan Rushworth DPBM-3 Hydraulic Bending Roll

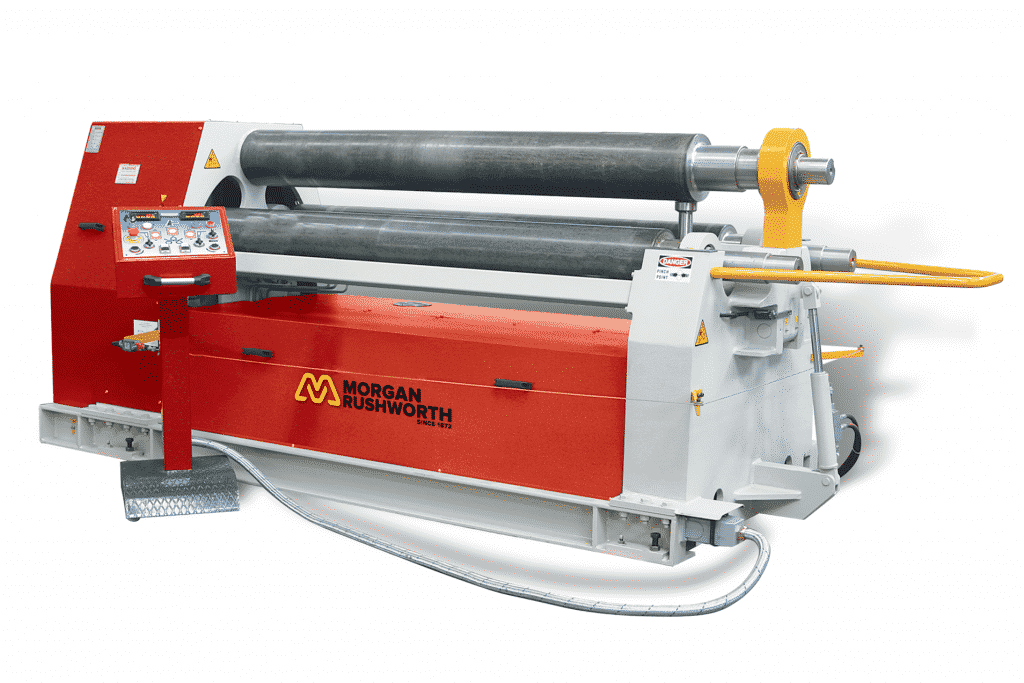

Main view - Morgan-Rushworth-DPBM-3-Roll-Hydraulic-Bending-Rolls

The Morgan Rushworth DPBH-3 hydraulic bending rolls are of the pyramid style with all three rolls hydraulically driven. The models with roll diameters up to 300mm are fitted with the type A shaft design with orbital action for up and down transition. The machines with roll diameters from 320mm to 550mm are equipped with the type B shaft design with linear action for up and down translation. All models have hydraulic drop end and supplied with DRO to indicate roll position.

Main view - Morgan-Rushworth-DPBM-3-Roll-Hydraulic-Bending-Rolls
Main view - Morgan-Rushworth-DPBM-3-Roll-Hydraulic-Bending-RollsMain view - Morgan-Rushworth-DPBM-3-Roll-Hydraulic-Bending-Rolls
Side view of the Morgan Rushworth DPBM-3 Bending Roll featured with optional central support systemSide view of the Morgan Rushworth DPBM-3 Bending Roll featured with optional central support system



MODEL STOCK CODE BENDING LENGTH PRE BENDING MAX THICKNESS TOP ROLL dia BOTTOM ROLLS dia MOTOR LENGTH WIDTH HEIGHT WEIGHT
mm mm mm mm mm kw mm mm mm kg
DPBH-3 2050/210 M3500 2050 8 10 210 190 7.5 3400 1200 1300 4200
DPBH-3 2050/240 M3501 2050 10 13 240 220 7.5 3400 1300 1450 5060
DPBH-3 2050/280 M3502 2050 13 16 280 260 11 4100 1400 1550 7650
DPBH-3 2050/300 M3503 2050 16 20 300 280 11 4100 1500 1550 8110
DPBH-3 2050/320 M3504 2050 20 25 320 310 22 4600 1950 1750 10450
DPBH-3 2050/350 M3505 2050 25 30 350 330 22 4600 2000 1750 10980
DPBH-3 2050/380 M3506 2050 30 35 380 360 37 4600 2100 1850 13010
DPBH-3 2050/420 M3507 2050 35 40 420 400 37 4700 2250 2250 15990
DPBH-3 2050/460 M3508 2050 40 50 460 440 45 5050 2250 2350 21020
DPBH-3 2050/500 M3509 2050 45 55 500 480 51 5200 2500 2800 29800
DPBH-3 2050/550 M3510 2050 50 60 550 530 66 5500 2600 3000 35040
DPBH-3 2550/210 M3511 2550 6 8 210 190 7.5 3900 1200 1300 4570
DPBH-3 2550/240 M3512 2550 8 10 240 220 7.5 3900 1300 1450 5670
DPBH-3 2550/280 M3513 2550 10 13 280 260 11 4600 1400 1550 7710
DPBH-3 2550/300 M3514 2550 13 16 300 280 11 4600 1500 1550 9150
DPBH-3 2550/320 M3515 2550 16 20 320 310 22 5100 1950 1750 11450
DPBH-3 2550/350 M3516 2550 20 25 350 330 22 5100 2000 1750 12030
DPBH-3 2550/380 M3517 2550 25 30 380 360 37 5400 2100 1850 15100
DPBH-3 2550/420 M3518 2550 30 35 420 400 37 5200 2250 2250 18540
DPBH-3 2550/460 M3519 2550 35 45 460 440 45 5550 2350 2350 22900
DPBH-3 2550/500 M3520 2550 40 50 500 480 51 5800 2500 2800 33780
DPBH-3 2550/550 M3521 2550 45 55 550 530 66 6000 2600 3000 38980
DPBH-3 3100/210 M3522 3100 4 6 210 190 7.5 4400 1200 1300 5205
DPBH-3 3100/240 M3523 3100 6 8 240 220 7.5 4400 1300 1450 6980
DPBH-3 3100/280 M3524 3100 8 10 280 260 11 5100 1400 1550 8410
DPBH-3 3100/300 M3525 3100 10 13 300 280 11 5100 1500 1550 9800
DPBH-3 3100/320 M3526 3100 13 16 320 310 22 5600 1950 1750 13450
DPBH-3 3100/350 M3527 3100 16 20 350 330 22 5600 2000 1750 14260
DPBH-3 3100/380 M3528 3100 20 25 380 360 37 5600 2100 1850 17140
DPBH-3 3100/420 M3529 3100 25 30 420 400 37 5700 2250 2250 20980
DPBH-3 3100/460 M3530 3100 30 40 460 440 45 6050 2250 2350 24780
DPBH-3 3100/500 M3531 3100 35 45 500 480 51 6200 2500 2800 35260
DPBH-3 3100/550 M3532 3100 40 50 550 530 66 6500 2600 3000 42790
DPBH-3 4100/240 M3533 4100 3 4 240 220 7.5 5400 1300 1450 7620
DPBH-3 4100/280 M3534 4100 4 6 280 260 11 6100 1400 1550 10790
DPBH-3 4100/300 M3535 4100 6 8 300 280 11 6100 1500 1550 11830
DPBH-3 4100/320 M3536 4100 8 10 320 310 22 6600 1950 1750 15620
DPBH-3 4100/350 M3537 4100 10 12 350 330 22 6600 2000 1750 17860
DPBH-3 4100/380 M3538 4100 13 16 380 360 37 6900 2100 1850 20600
DPBH-3 4100/420 M3539 4100 16 20 420 400 37 6900 2250 2250 23350
DPBH-3 4100/460 M3540 4100 20 30 460 440 45 7050 2350 2350 32450
DPBH-3 4100/500 M3541 4100 25 35 500 480 51 7200 2500 2800 39860

Features

  • Hydraulic driven rolls
  • Hydraulic drop end and top roll tilt
  • Hydraulic up and down roll movement
  • Induction hardened rolls
  • Double pre bending to the front and rear edge of plate
  • Cone bending device
  • Welded steel construction
  • Safety trip wire around the machine
  • Mobile control panel

Options

  • Side and central supports for large sheet metal diameters
  • Extended rolls
  • Profile rolls
  • Material feed table
