Meyer SR25 Geared Head Drilling Machine 415v

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

The Meyer SR25 is our smallest capacity drill, but still features all of the hallmarks of the range, with a heavy-duty base, head and reliable geared mechanism.

Meyer SR25 Geared Head Drilling Machine 415v image
Meyer SR25
Meyer SR25 Geared Head Drilling Machine 415v image
Video thumbnail showing the Meyer SR25 Geared Head Drilling Machine 415v
Meyer SR25 Geared Head Drilling Machine 415v image 3
The Meyer SR Geared Head Pillar Drill Range
Meyer SR25 Geared Head Drilling Machine 415v image 3
Meyer SR25 Geared Head Drilling Machine 415v image 4
Variable Drilling Depths
Meyer SR25 Geared Head Drilling Machine 415v image 4
Meyer SR25 Geared Head Drilling Machine 415v image 5
Low Voltage Lamp
Meyer SR25 Geared Head Drilling Machine 415v image 5
Meyer SR25 Geared Head Drilling Machine 415v image 6
Morse Taper Drill Bit Holder & Protective Guarding
Meyer SR25 Geared Head Drilling Machine 415v image 6
Meyer SR25 Geared Head Drilling Machine 415v image 7
Stepped Drilling Speeds
Meyer SR25 Geared Head Drilling Machine 415v image 7
Meyer SR25 Geared Head Drilling Machine 415v image 8
Heavy Duty Motor
Meyer SR25 Geared Head Drilling Machine 415v image 8
Meyer SR25 Geared Head Drilling Machine 415v image 9

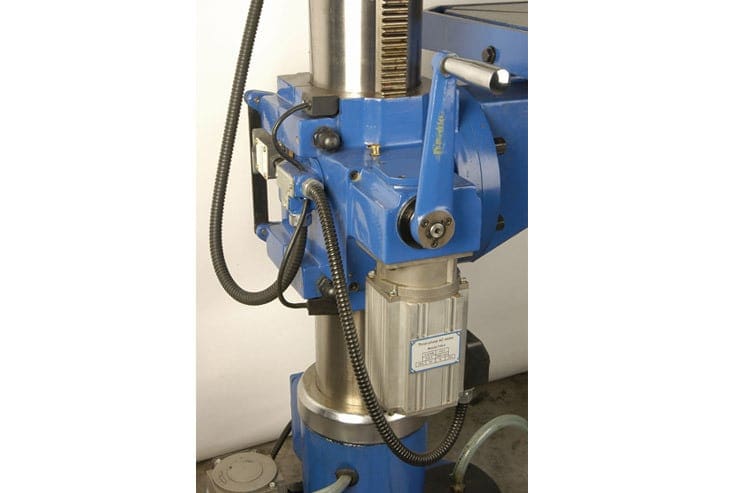

Rise and Fall Head & Table
Meyer SR25 Geared Head Drilling Machine 415v image 9
Meyer SR25 Geared Head Drilling Machine 415v image 10
Heavy Duty Base
Meyer SR25 Geared Head Drilling Machine 415v image 10
Meyer SR25 Geared Head Drilling Machine 415v image 11
Drill Press Vice (Optional)
Meyer SR25 Geared Head Drilling Machine 415v image 11
Meyer SR25 Geared Head Drilling Machine 415v image 12
Universal Cross Table (Optional)
Meyer SR25 Geared Head Drilling Machine 415v image 12
MODEL   SR25 SR32 SR32AE SR50VAE
STOCKCODE 18046 18041 18042 18066
Drilling Capacity mm 25 32 32 50
Tapping Capacity M18 M22 M22 M30
Column dia mm 95 120 120 180
Spindle Taper MT no 3 4 4 4
Motor Kw 0.75 1/1.2 1/1.2 3
Speeds rpm 125 – 2825 (stepped) 125 – 3030 (stepped) 125 – 3030 (stepped) 50 – 2200 (variable)
Spindle Stroke mm 110 160 160 240
Work Table mm 350 x 400 500 x 420 500 x 420 580 x 460
Base Plate mm 340 x 340 330 x 330 320 x 320 440 x 450
Throat mm 240 320 320 360
Coolant No Standard Standard Standard
Auto Feed No No Yes Yes
Tapping Facility No No Yes Yes
RPM Digital Read Out No No Yes Yes
Length mm 700 830 830 980
Width mm 450 510 510 650
Height mm 1900 2180 2180 2370
Weight Kg 400 470 510 655

*Capacities are given for 250 N/mm plate yielding strength

Features

  • Geared head
  • Exceptional heavy construction
  • Large work tables
  • Auto tool release
  • Eye shield with interlock switch
  • Low voltage lamp
  • Rise and fall table
  • Rise and fall head
  • Forward and reverse

Options

  • Drill Press Vice: 18009
  • Universal Cross Table: 18047

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
A mainstay of virtually every fabrication shop in the country, a pillar drill allows for quick and efficient hole drilling and tapping. With morse taper drill bits, you can quickly hot swap drill bits for different requirements.

Large work tables, guarding and rise and fall tables and heads, the Meyer range is extremely versatile for whatever material you are working with.

All bar the SR25 features a coolant system. The SR32AE and SR50VAE feature auto feed and tapping facility. The SR50VAE also features a variable drill speed, ideal for getting that perfect drill pierce quality.

The Meyer SR Geared Head Drilling Machine range will not disappoint.
