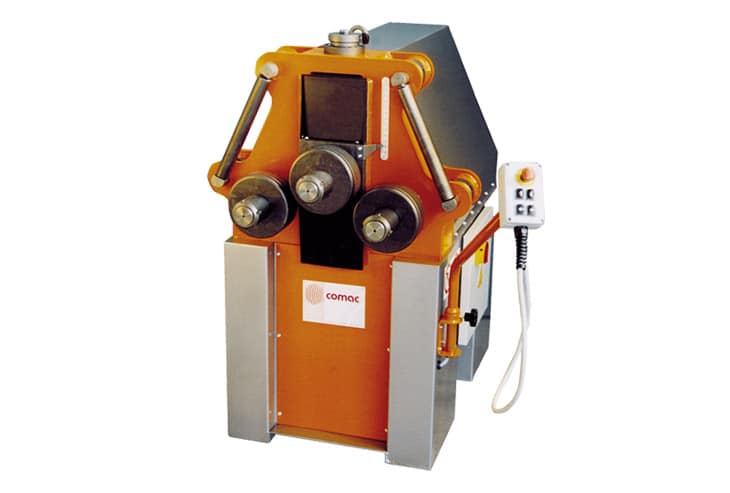

Comac Leonard 5H Section Ring Rolling Machine 415v

The COMAC LEONARDO section ring rolling machine has the benefit of hydraulic roll adjustment for faster bending, particularly where ‘tight’ bends are required. The Leonardo includes a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. COMAC can draw on thirty years experience in section bending technology and their range today.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Comac Leonard 5H Section Ring Rolling Machine 415vComac Leonard 5H Section Ring Rolling Machine 415v
Flat Bar The Hard Way:80 x 8mm 800 Dia
Flat Bar The Easy Way:120 x 20 800 Dia
Solid Square:40 x 40mm 1200 Dia
Solid Round:45mm 1000 Dia
Tube – Thin Wall:80 x 2.5mm 2000 Dia
Tube – Thick Wall:60.3 x 4.5mm 800 Dia
Rectangle Tube:60 x 30 x 4mm 1500 Dia
Square Tube:60 x 60 x 3mm 3000 Dia
Angle – Leg Out:60 x 60 x 6mm 600 Dia
Angle – Leg In:60 x 60 x 6mm 1000 Dia
T Section:60 x 60 x 7mm 600 Dia
Channel – Leg Out:80 x 45mm 600 Dia
Channel – Leg In:80 x 45mm 600 Dia
Shaft Diameter:50mm
Roll Diameter:175mm
Motor: Kw1.5 Kw
Rolling Speed:4.4 m/min
Length:1150mm
Width:800mm
Height:1250mm
Weight:495mm

  • Hydraulically adjusted top roll.
  • Optional tube rolls available on request.
  • Hand held control.
  • Pointer and scale roll position indicator.
