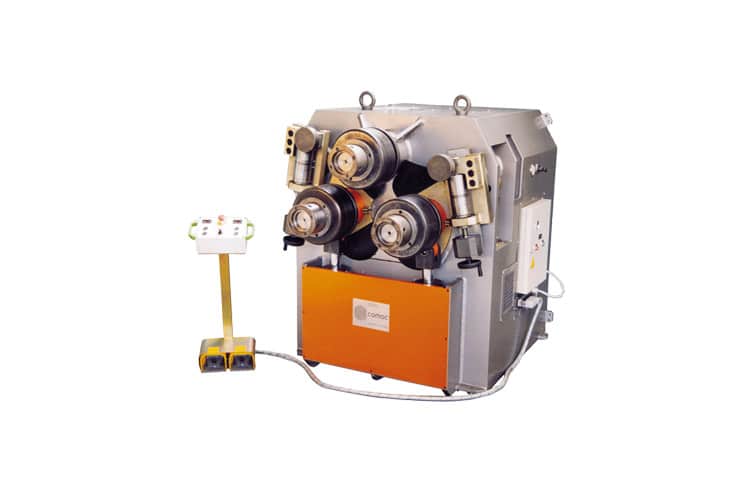

Comac 308HV Hydraulic Section Rolling Machine 415V

The COMAC 308 HV section ring rolling machine has the benefit of hydraulic roll adjustment for faster bending, particularly where ‘tight’ bends are required. The 308 HV includes a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. COMAC can draw on thirty years experience in section bending technology and their range today.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Comac 308HV Hydraulic Section Rolling Machine 415VComac 308HV Hydraulic Section Rolling Machine 415V
Flat Bar The Hard Way:130 x 25mm 1300 Dia
Flat Bar The Easy Way:200 x 50 1000 Dia
Solid Square:75 x 75mm 800 Dia
Solid Round:90mm 1000 Dia
Tube – Thin Wall:168.3 x 4mm 6000 Dia (Special Rolls)
Tube – Thick Wall:139.7 x 6mm 1600 Dia (Special Rolls)
Rectangle Tube:140 x 50 x 7mm
Square Tube:100 x 8mm
Angle – Leg Out:120 x 15mm 1300 Dia
Angle – Leg In:100 x 12mm 1200 Dia
T Section:120 x 120mm 1200 Dia
Channel – Leg Out:220 x 80mm 800 Dia
Channel – Leg In:220 x 80mm 1000 Dia
Shaft Diameter:120mm
Roll Diameter:390mm
Motor: Kw15 Kw
Rolling Speed:0.7 m/min
Length:1800mm
Width:1750mm
Height:1950mm
Weight:4450 Kg

  • HV Hydraulic adjustment of rolls with push-button controls. Positions referenced on digital LED readouts. Roll rotation via foot-pedals.
  • Three rolls driven for excellent traction.
  • Smooth rolls ensure minimum material marking.
  • All machines can bend horizontally or vertically.
  • Lateral guide rolls with three dimensional adjustment.
  • Hydraulically powered rotation
  • Supplied with modular rolls for rolling most profiles.
