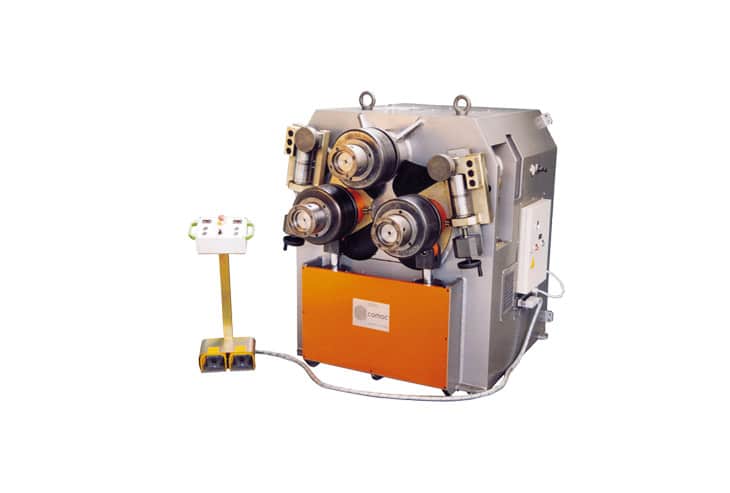

Comac 307HV Hydraulic Section Rolling Machine 415V

The COMAC 307 HV section ring rolling machine has the benefit of hydraulic roll adjustment for faster bending, particularly where ‘tight’ bends are required. The 307 HV includes a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. COMAC can draw on thirty years experience in section bending technology and their range today.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Comac 307HV Hydraulic Section Rolling Machine 415VComac 307HV Hydraulic Section Rolling Machine 415V
Flat Bar The Hard Way:100 x 25mm 1000 Dia
Flat Bar The Easy Way:180 x 40mm 800 Dia
Solid Square:65 x 65mm 800 Dia
Solid Round:75mm 750 Dia
Tube – Thin Wall:141.3 x 3.6mm 5000 Dia (Special Rolls)
Tube – Thick Wall:114.3 x 5.6mm 1200 Dia (Special Rolls)
Rectangle Tube:120 x 60 x 5mm
Square Tube:80 x 6mm
Angle – Leg Out:100 x 12mm 1000 Dia
Angle – Leg In:90 x 10mm 1000 Dia
T Section:100 x 100 x 11mm 1000 Dia
Channel – Leg Out:180 x 70mm 800 Dia
Channel – Leg In:180 x 70mm 1000 Dia
Shaft Diameter:100mm
Roll Diameter:315mm
Motor: Kw11 Kw
Rolling Speed:0.7 m/min
Length:1800mm
Width:1500mm
Height:1700mm
Weight:3600 Kg

  • HV Hydraulic adjustment of rolls with push-button controls. Positions referenced on digital LED readouts. Roll rotation via foot-pedals.
  • Three rolls driven for excellent traction.
  • Smooth rolls ensure minimum material marking.
  • All machines can bend horizontally or vertically.
  • Lateral guide rolls with three dimensional adjustment.
  • Hydraulically powered rotation
  • Supplied with modular rolls for rolling most profiles.
