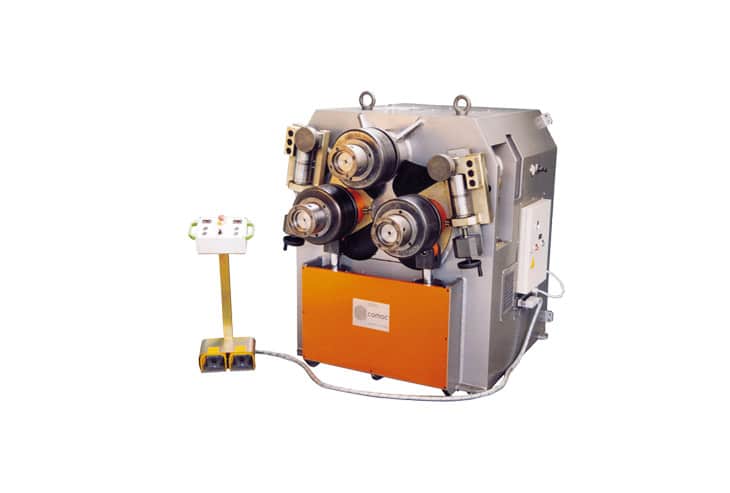

Comac 305PH Hydraulic Section Rolling Machine 415V

The COMAC 305 PH section ring rolling machine has the benefit of hydraulic roll adjustment for faster bending, particularly where ‘tight’ bends are required. The 305 PH includes a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. COMAC can draw on thirty years experience in section bending technology and their range today.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Comac 305PH Hydraulic Section Rolling Machine 415VComac 305PH Hydraulic Section Rolling Machine 415V
Flat Bar The Hard Way:80 x 18mm 800 Dia
Flat Bar The Easy Way:120 x 25mm 600 Dia
Solid Square:45 x 45mm 500 Dia
Solid Round:55mm 600 Dia
Tube – Thin Wall:101.6 x 2.3mm 2000 Dia (Special Rolls)
Tube – Thick Wall:76.1 x 4.5mm 750 Dia (Special Rolls)
Rectangle Tube:80 x 40 x 4mm
Square Tube:70 x 3.5mm
Angle – Leg Out:80 x 8mm 800 Dia
Angle – Leg In:70 x 7mm 700 Dia
T Section:70 x 70 x 8mm 800 Dia
Channel – Leg Out:120 x 55mm 800 Dia
Channel – Leg In:100 x 50mm 900 Dia
Shaft Diameter:70mm
Roll Diameter:245mm
Motor: Kw4.9 Kw
Rolling Speed:6.1 m/min
Length:1440mm
Width:1140mm
Height:1400mm
Weight:1520 Kg

  • PH Hydraulic adjustment of rolls with push-button controls. Positions referenced on mechanical counters with positive stop. Roll rotation via foot-pedals.
  • Three rolls driven for excellent traction.
  • Smooth rolls ensure minimum material marking.
  • All machines can bend horizontally or vertically.
  • Lateral guide rolls with three dimensional adjustment.
  • Hydraulically powered rotation
  • Supplied with modular rolls for rolling most profiles.
