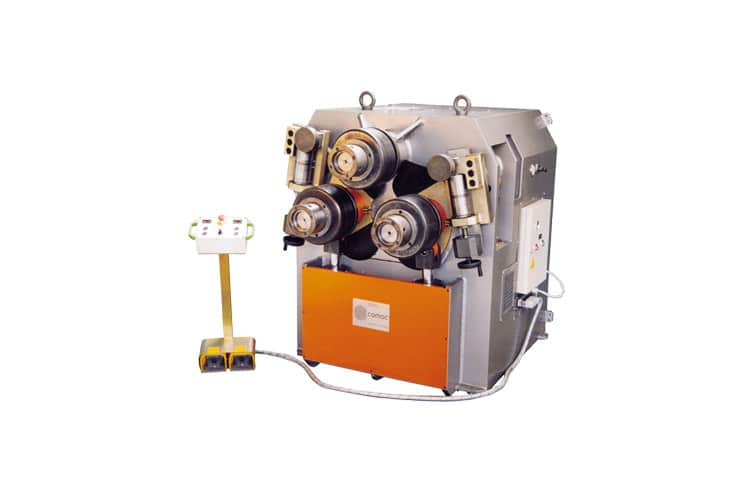

Comac 303PH Hydraulic Section Rolling Machine 415V

The COMAC 303PH section ring rolling machine has the benefit of hydraulic roll adjustment for faster bending, particularly where ‘tight’ bends are required. The 303PH includes a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. COMAC can draw on thirty years experience in section bending technology and their range today.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Comac 303PH Hydraulic Section Rolling Machine 415VComac 303PH Hydraulic Section Rolling Machine 415V
Flat Bar The Hard Way:60 x 10mm 450 Dia
Flat Bar The Easy Way:80 x 20mm 400 Dia
Solid Square:32 x 32mm 400 Dia
Solid Round:40mm 400 Dia
Tube – Thin Wall:60.3 x 2.9mm 800 Dia (Special Rolls)
Tube – Thick Wall:48.3 x 4mm 500 Dia (Special Rolls)
Rectangle Tube:60 x 30 x 2.5mm
Square Tube:50 x 3mm
Angle – Leg Out:60 x 6mm 600 Dia
Angle – Leg In:50 x 5mm 500 Dia
T Section:60 x 60 x 7mm 600 Dia
Channel – Leg Out:80 x 45mm 500 Dia
Channel – Leg In:70 x 40mm 600 Dia
Shaft Diameter:50mm
Roll Diameter:180mm
Motor: Kw3 Kw
Rolling Speed:5.5 m/min
Length:1200mm
Width:820mm
Height:1360mm
Weight:720mm

  • PH Hydraulic adjustment of rolls with push-button controls. Positions referenced on mechanical counters with positive stop. Roll rotation via foot-pedals.
  • Three rolls driven for excellent traction.
  • Smooth rolls ensure minimum material marking.
  • All machines can bend horizontally or vertically.
  • Lateral guide rolls with three dimensional adjustment.
  • Hydraulically powered rotation
  • Supplied with modular rolls for rolling most profiles.
