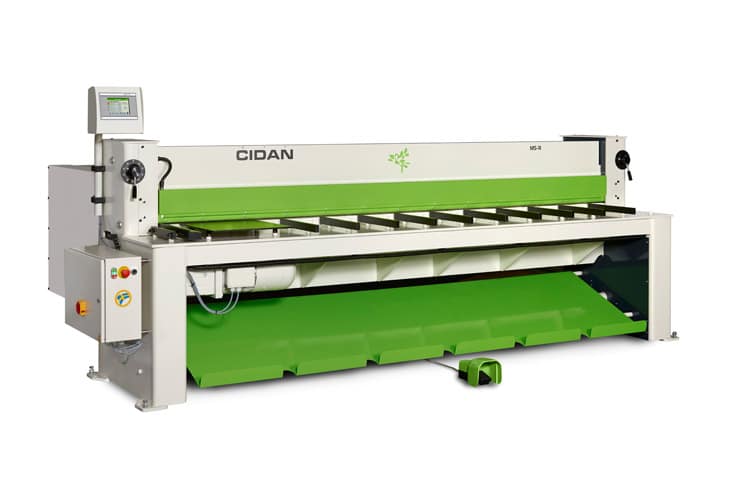

Cidan EVO Mechanical Sheet Metal Guillotine Shear
The CIDAN EVO is the strongest mechanical sheet metal guillotine shear in the Cidan program. The EVO is supplied with blade gap adjustment as a standard feature. The blade gap adjustment makes it possible to achieve the best cutting result in all kinds of sheet thicknesses. The blade gap is set quickly and correctly via handles and scales.
| MODEL | CUTTING LENGTH | CAPACITY | SPEED | OUTER DIMENSIONS**** | MOTOR | WEIGHT | ||
| mm | Steel* | Stainless steel** | Aluminium*** | Cuts/min. | Length x width x Height | Kw | kg (ibs) | |
| mm (ga) | mm (ga) | mm (ga) | mm | Approx. | ||||
| EVO 25 | 2550 | 4.00 (9) | 2.25 (14) | 5.50 (.216) | 28 | 3092 X 1600 X 1322 | 5.5 | 1890 |
| EVO 30 | 3100 | 4.00 (9) | 2.25 (14) | 5.50 (.216) | 28 | 3632 X 1600 X 1322 | 5.5 | 2280 |
| EVO 40 | 4100 | 2.00 (14) | 1.25 (18) | 3.00 (.118) | 28 | 4592 X 1600 X 1322 | 5.5 | 2670 |
*400 N/mm2 – 58000 psi **700 N/mm2 – 87000 psi -***200 N/mm2 – 29000 psi -**** with motorized back gauge 750 mm and safety guards
Features
- Sturdy, low-noise gear motor
- Single or continuous stroke control
- Double edged blades
- Finger protection
- Blade gap adjustments
- Spring loaded hold down beam
- Squaring arm with scale (380mm)
- Foot pedal to start the cut
- Pneumatic Sheet support with return plate (blanks to front side of shear)
- LED cutting light
Options
- Manual back gauge 0-800mm operated from the front side
- Motorised back gauge incl. CutLink Control and ball screw spindles
- Pneumatic sheet support with rolls 1000mm (blanks to rear side of shear)
- Pneumatic sheet support with return plate (blanks to the front side of shear)
- Movable blank wagon instead of fixed plate wagon (extra blank wagon available)
- Pneumatic hold down beam for use with soft material
- Adjustable angle gauge system with graduated scale
- Safety guards for machine back side – mechanical with light guard, 750/800mm or 1000mm
- Squaring arm 650mm or 1000mm with or without tilting stops
- Support arms in front (650mm or 1000mm) with or without tilting stops
- Forced cooling for cutting motor
