CBC UNI Tube Bending Machine

Main view off the CBC Uni 89 Manual Tube Bender

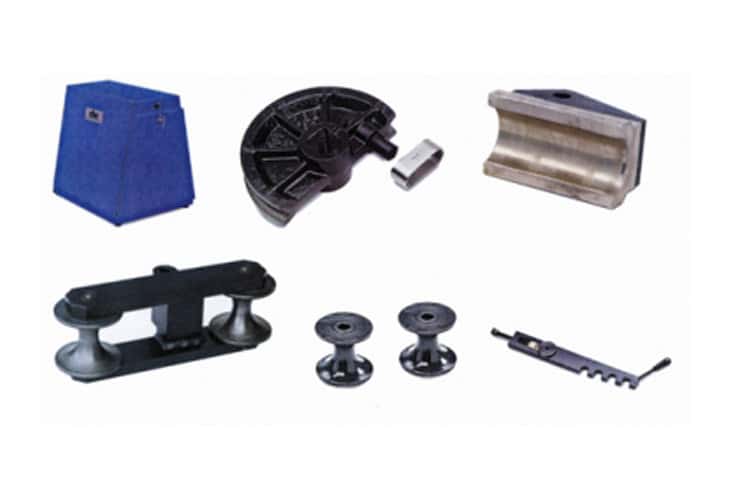

The CBC tube bending machines range from ‘easy to use’ simple machines to precision programmable production machines. A comprehensive tooling range ensures high bend quality on all models. All formers can be specified with either counter formers or guide rollers depending on material and wall thickness. Optional equipment includes moving arm with positioning stops and plane of bend indicator. The new large capacity CBC UNI 89 can effortlessly bend 88.9mm x 8mm wall mild steel tube.

Main view off the CBC Uni 89 Manual Tube Bender
Main view off the CBC Uni 89 Manual Tube BenderMain view off the CBC Uni 89 Manual Tube Bender
Video thumbnail showing the CBC UNI Tube Bending Machine
Video thumbnail showing the CBC UNI Tube Bending Machine
Video thumbnail showing the CBC UNI Tube Bending Machine
Video thumbnail showing the CBC UNI Tube Bending Machine
Video thumbnail showing the CBC UNI Tube Bending Machine
CBC UNI Tube Bending Machine image 7CBC UNI Tube Bending Machine image 7
CBC UNI Tube Bending Machine image 8
Tube Bending with Movable Arm
CBC UNI Tube Bending Machine image 8
CBC UNI Tube Bending Machine image 9
Moving Arm with Plane of Bend Indicator
CBC UNI Tube Bending Machine image 9
CBC UNI Tube Bending Machine image 10
Moving Arm with Plane of Bend Indicator Backstops
CBC UNI Tube Bending Machine image 10
CBC UNI Tube Bending Machine image 11
Effortlessly create repeatable parts
CBC UNI Tube Bending Machine image 11
CBC UNI Tube Bending Machine image 12
Nylon Counter-former
CBC UNI Tube Bending Machine image 12
CBC UNI Tube Bending Machine image 13
Nylon Counter-former
CBC UNI Tube Bending Machine image 13
CBC UNI Tube Bending Machine image 14
Nylon Counter-former
CBC UNI Tube Bending Machine image 14
Top view CBC-Uni-42-Manual-Tube-BenderTop view CBC-Uni-42-Manual-Tube-Bender
Front view CBC-Uni-42-Manual-Tube-Bender-with-optional-baseFront view CBC-Uni-42-Manual-Tube-Bender-with-optional-base

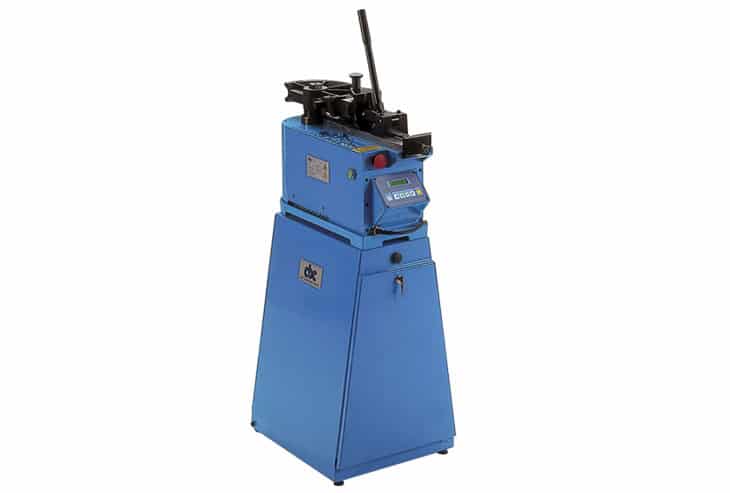

Front view CBC-Uni-60-Manual-Tube-Bender-with-optional-baseFront view CBC-Uni-60-Manual-Tube-Bender-with-optional-base
Front view CBC-Uni-60-Manual-Tube-Bender-with-optional-mandrelFront view CBC-Uni-60-Manual-Tube-Bender-with-optional-mandrel
Front view CBC-Uni-70-Manual-Tube-Bender-with-optional-baseFront view CBC-Uni-70-Manual-Tube-Bender-with-optional-base
Front view CBC-Uni-70-Manual-Tube-Bender-with-optional-mandrelFront view CBC-Uni-70-Manual-Tube-Bender-with-optional-mandrel
CBC UNI Tube Bending Machine image 21
Customer Example Of Uni60 Sitework
CBC UNI Tube Bending Machine image 21
CBC UNI Tube Bending Machine image 22
Customer Example Of Uni60 Sitework
CBC UNI Tube Bending Machine image 22
CBC UNI Tube Bending Machine image 23
Customer Example Of Uni60 Sitework
CBC UNI Tube Bending Machine image 23
CBC UNI Tube Bending Machine image 24
Customer Example of Aluminium Bending (360 Wheelchairs)
CBC UNI Tube Bending Machine image 24
CBC UNI Tube Bending Machine image 25
Customer Example of Aluminium Bending (360 Wheelchairs)
CBC UNI Tube Bending Machine image 25
CBC UNI Tube Bending Machine image 26
Customer Example of Aluminium Bending (360 Wheelchairs)
CBC UNI Tube Bending Machine image 26
CBC UNI Tube Bending Machine image 27
Customer Example of Aluminium Bending (360 Wheelchairs)
CBC UNI Tube Bending Machine image 27
MODEL   UNI 30 UNI 42 MAN UNI 42 UNI 42 DIG UNI 60 UNI 60 DIG UNI 70/C UNI 76 UNI 89
STOCK CODE 21374 21194 21195 21196 21197 21198 21199 21314 21364
Capacity mm (Mid Steel) 33.7 x 3.2 42.4 x 3.2 42.4 x 3.2 42.4 x 3.2 48.3 x 3.2 48.3 x 3.2 60.0 x 4 76.0 x 6 88.9 x 8
Maximum Bending Angle 180 180 180 180 180 180 180 180 180
Motor Kw 1.1 0.56 0.56 0.98 0.98 1.5/2.2 3/4 4.8
Programs 50 50 50 70 50 50
Bends/Program 9 9 9 6 9 9
Weight Kg 120 18 35 35 60 60 210 450 650
Length mm 740 400 520 520 520 520 810 1000 1200
Width mm 900 200 170 170 210 210 400 710 650
Height mm 1000 250 350 350 410 410 1100 1100 1200

Features

  • Manual UNI 42 provides quality bending at competitive pricing.
  • NEW UNI 30 for fast bending of tubes up to 1” gas.
  • Superb bend quality.
  • Complete tooling service.
  • Adjustable limit switch with angle scale standard on UNI 42 and UNI 60. Programmer with memories including ‘spring back’ allowance standard on
  • UNI42 digital, UNI 60 digital, UNI 70/C.
  • NEW CBC UNI 89 with large 88.9mm x 8mm bending capacity.

Options

  • 2 wheeled cabinet available for UNI 42, UNI 42 digital, UNI 60 and UNI 60 digital.
  • Moving arm with plane of bend indicator available for UNI 42, UNI 42 Digital, UNI 60 and UNI 60 Digital.
  • 110V models.
