Buffalo BMS Manual Measuring System

The Buffalo MS15 is a manually operated measuring system with a digital read out indicating the current stop position. The Buffalo MS30 to Buffalo MS80 are powered models which can be configured as either measuring or feeding systems. The operator enters the required stop positions into the NC control and the system automatically runs through the program until it is completed. Specific systems can be configured to work with saws, drills and steelworkers or punching machines.

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

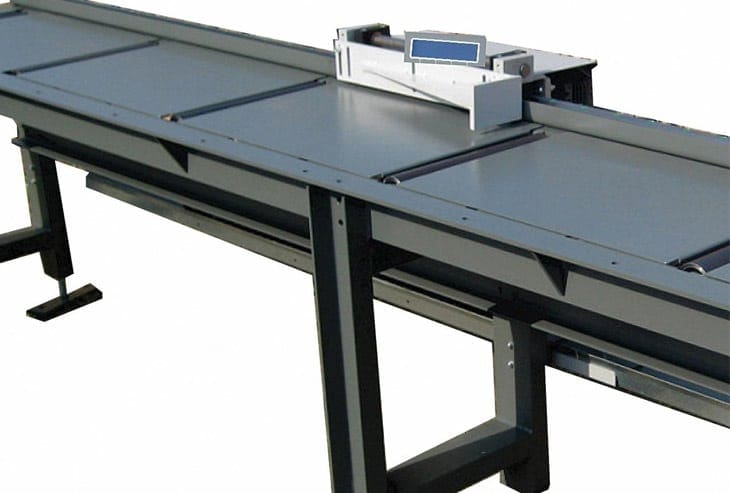

Buffalo MS15 Manual Measuring SystemBuffalo MS15 Manual Measuring System
Video thumbnail showing the Buffalo BMS Manual Measuring System
MODELWidthLengthRoller diaHeightRoller PitchCapacity/rollerNo ofMax. CapacityFrame size
mmmmmmmmmmKg UDLrollersKg UDL
BUFFALOBMS15-03350300050 x 5As required3 x 210, rest x 40050094500100 PFC
BUFFALO MS15-04350400050 x 5As required3 x 210, rest x 400500126000100 PFC
BUFFALO MS15-05350500050 x 5As required3 x 210, rest x 400500178500100 PFC
BUFFALO MS15-06350600050 x 5As required3 x 210, rest x 4005002211000100 PFC
BUFFALO MS30-04350400050 x 5As required3 x 210, rest x 400500126000100 PFC
BUFFALO MS30-06350600050 x 5As required3 x 210, rest x 400500178500100 PFC
BUFFALO MS30-08350800050 x 5As required3 x 210, rest x 4005002211000100 PFC
BUFFALO MS30-103501000050 x 5As required3 x 210, rest x 4005002713500100 PFC
BUFFALO MS30-123501200050 x 5As required3 x 210, rest x 4005003216000100 PFC
BUFFALO MS45-04630400089 x 6As required3 x 210, rest x 63075096750100 PFC
BUFFALO MS45-06630600089 x 6As required3 x 210, rest x 630750129000100 PFC
BUFFALO MS45-08630800089 x 6As required3 x 210, rest x 6307501511250100 PFC
BUFFALO MS45-106301000089 x 6As required3 x 210, rest x 6307501813500100 PFC
BUFFALO MS45-126301200089 x 6As required3 x 210, rest x 6307502115750100 PFC
BUFFALO MS60-088304000114 x 8As required50085097650140 PFC
BUFFALO MS60-108306000114 x 8As required5008501311050140 PFC
BUFFALO MS60-128308000114 x 8As required5008501714450140 PFC
BUFFALO MS60-1683010000114 x 8As required5008502117850140 PFC
BUFFALO MS60-2083012000114 x 8As required5008502521250140 PFC
BUFFALO MS80-0811004000130 x 10As required50085097650140 PFC
BUFFALO MS80-1011006000130 x 10As required5008501311050140 PFC
BUFFALO MS80-1211008000130 x 10As required5008501714450140 PFC
BUFFALO MS80-16110010000130 x 10As required5008502117850140 PFC
BUFFALO MS80-20110012000130 x 10As required5008502521250140 PFC
  • Buffalo MS15 – Manual positioning of stop unit
  • Buffalo MS30/45/60/80 – Powered programmable positioning of stop unit
  • Buffalo MS30/45/60/80 – Servo motor with rotary encoder to ensure positioning accuracy
  • Precision linear rail guidance system
  • Digital read out of stop position
  • Increased cutting accuracy by eliminating measuring errors
  • Increased productivity – one set up for multiple cuts at same length
  • Stop runs on precision linear guidance rail
  • Rotary encoder ensures positioning accuracy
  • +/- 0.1mm Repeatability
  • Ideal for use with saws, drills and steelworkers
  • Roller track available separately
  • Manual or powered flip up stop to allow cutting of longer material
  • Pneumatic or hydraulic gripper on the feeder unit
  • Gravity or powered roller track to suit
