Selmach Roller Track System

Roller Track

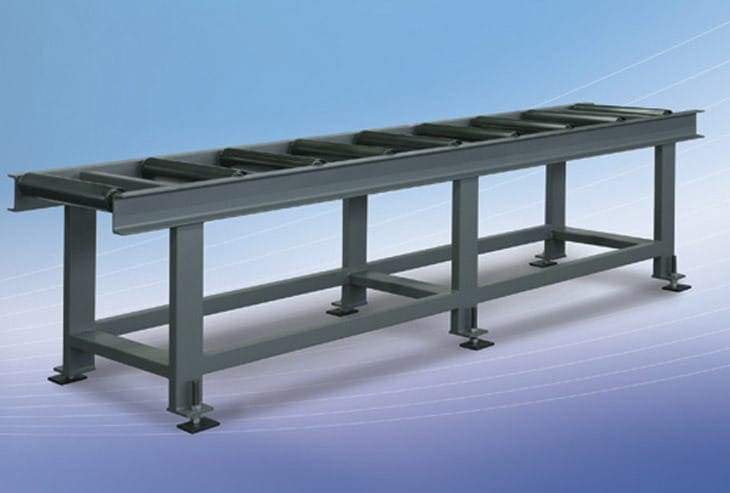

The Selmach stand alone gravity roller track systems are adjustable for height and available in 350mm, 450mm, 620mm and 750mm widths. These heavy-duty, modular systems provide an excellent material handling solution for virtually all bandsaws. Speak to us about bespoke roller track systems too, if you need a specialist solution. We can also offer bespoke motorised systems and vertical rollers too.

Roller Track
Roller TrackRoller Track
Selmach Roller Track System image 2Selmach Roller Track System image 2
Roller Track with Bianco Saw Close-Up
350mm Roller Track
Roller Track with Bianco Saw Close-Up

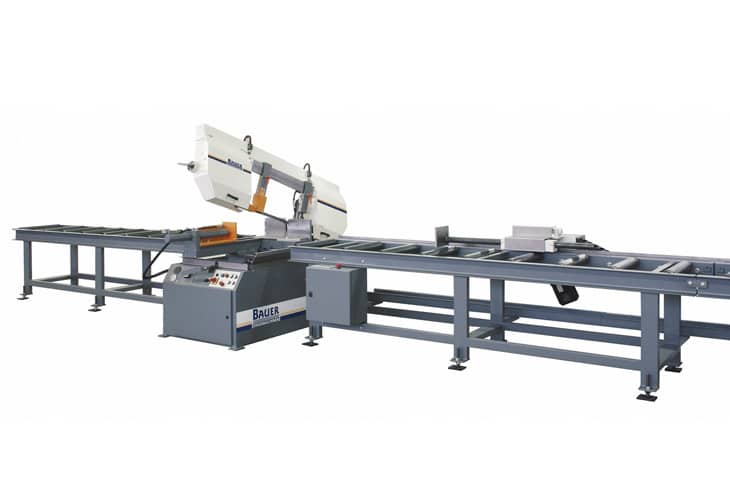

Roller Track with Bianco Saw
350mm Roller Track
Roller Track with Bianco Saw
Roller Track with Bianco Saw
350mm Roller Track
Roller Track with Bianco Saw
Selmach Roller Track System image 6
450mm Roller Track
Selmach Roller Track System image 6
Selmach Roller Track System image 7
450mm Roller Track
Selmach Roller Track System image 7
Selmach Roller Track System image 8
450mm Roller Track
Selmach Roller Track System image 8
Selmach Roller Track System image 9
620mm Roller Track
Selmach Roller Track System image 9
Selmach Roller Track System image 10
620mm Roller Track
Selmach Roller Track System image 10
Selmach Roller Track System image 11
620mm Roller Track
Selmach Roller Track System image 11
Selmach Roller Track System image 12
620mm Roller Track
Selmach Roller Track System image 12
STOCK CODE WIDTH mm LENGTH mm ROLLER Ø mm HEIGHT mm NO OF ROLLERS MAX. CAPACITY Kg UDL FRAME SIZE RSA mm
15604 350 2000 50 x 2 610-960 6 560 50 x 50 x 5
15619 450 2000 63.5 x 3 610-960 6 1380 75 x 50 x 6
15123 620 2000 76.4 x 3 610-960 6 2295 100 x 50 x 6
15642 750 2000 76.4 x 3 610-960 6 2295 100 x 50 x 6

Features

  • Heavy duty machined bearings
  • Fully adjustable modular system
  • Large selection of load capacities
  • Available in 4 different widths
  • Adjustable Height (610mm – 960mm)

Options

  • Bespoke track sizes
  • Vertical rollers
  • Motorised systems

The Selmach stand alone gravity roller track systems are adjustable for height and available in 350mm, 450mm, 620mm and new 750mm widths. These heavy-duty, modular systems provide an excellent material handling solution for virtually all bandsaws, steelworkers and pillar drills.

Speak to us about bespoke roller track systems too, if you need a specialist solution.
We can also offer bespoke motorised systems and vertical rollers too.

For our larger, CNC Sterling saws, we can also include powered roller track solutions for fully automatic material processing solutions.
