    The new Antil Robotic APR represents a technological evolution in the sheet and plate bending industry, as a new line of robots with redesigned mechanics and innovative hardware enables improved productivity for automatic bending operations alongside the traditional Hydraulic Press Brake. The APR can be operated by anyone who is familiar with the bending process.

    Side view Antil-Robotic-Arm-free-standing-track-and-safety-barriers

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Side view Antil-Robotic-Arm-free-standing-track-and-safety-barriersSide view Antil-Robotic-Arm-free-standing-track-and-safety-barriers
      Video thumbnail showing the Antil Robotic APR Robot Arm
      Front view Antil-Robotic-Arm-attached-to-a-press-brakeFront view Antil-Robotic-Arm-attached-to-a-press-brake

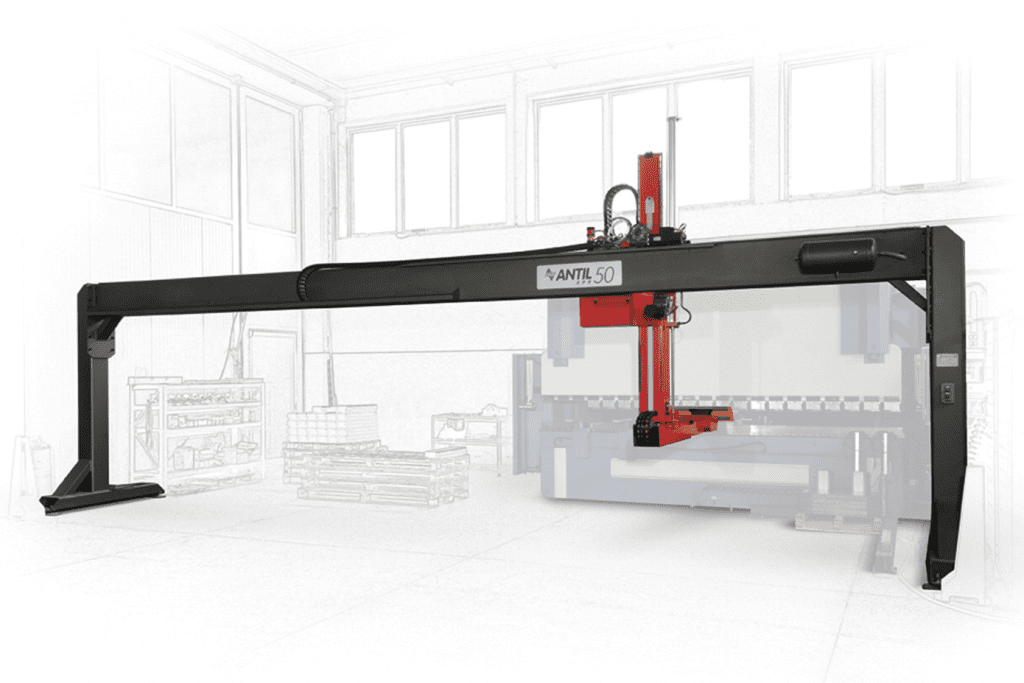

      Front view Antil-Robotic-Arm-with-free-standing-trackFront view Antil-Robotic-Arm-with-free-standing-track

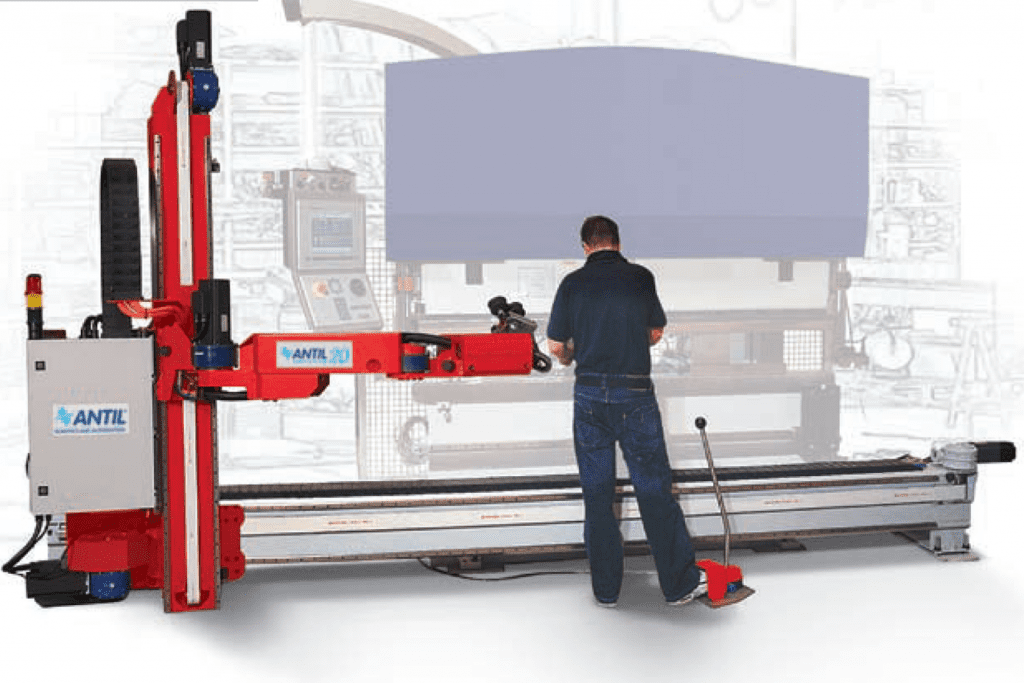

      Front view Antil-Robotic-Arm-on-a-trackFront view Antil-Robotic-Arm-on-a-track

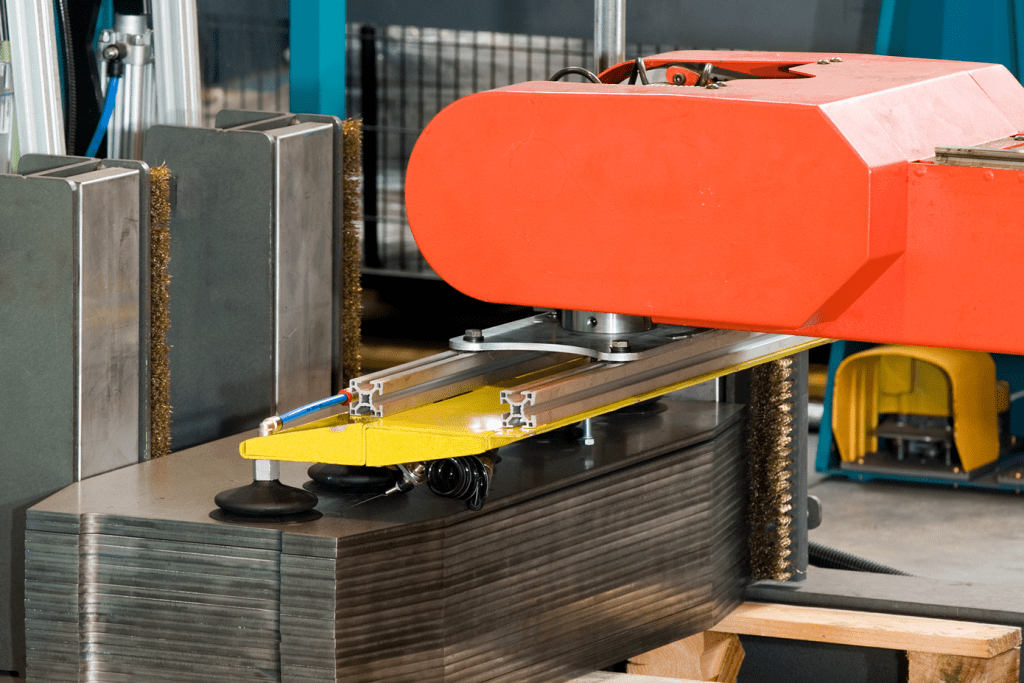

      Detail Antil-Robotic-Arm-material-collectionDetail Antil-Robotic-Arm-material-collection
      Detail Antil-Robotic-Arm-holding-material-to-press-brakeDetail Antil-Robotic-Arm-holding-material-to-press-brake

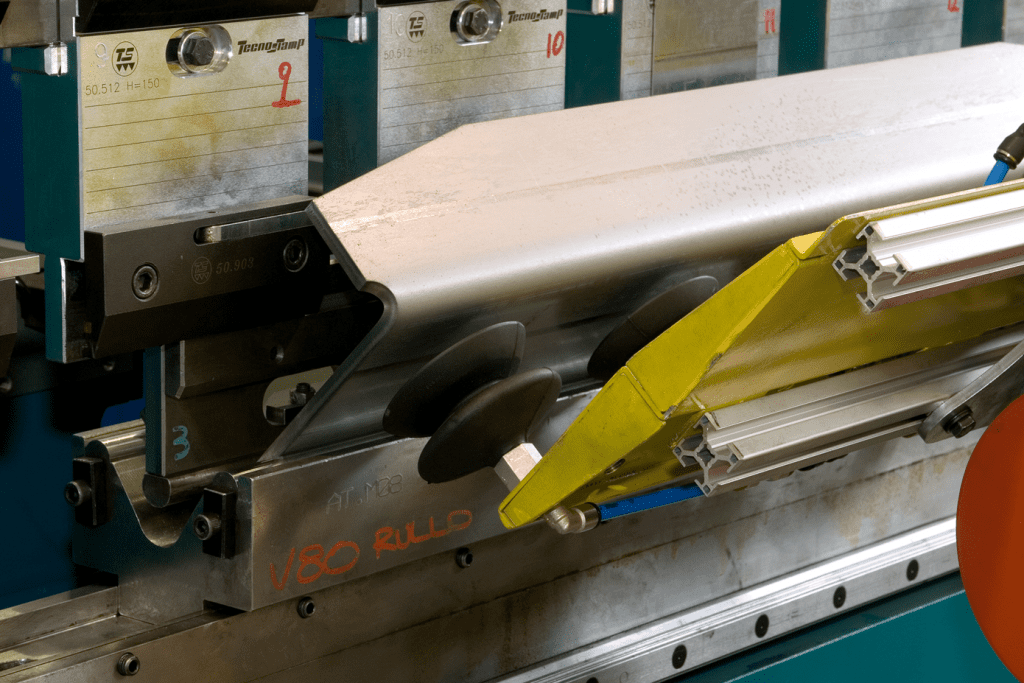

      Detail Antil-Robotic-Arm-foldingDetail Antil-Robotic-Arm-folding

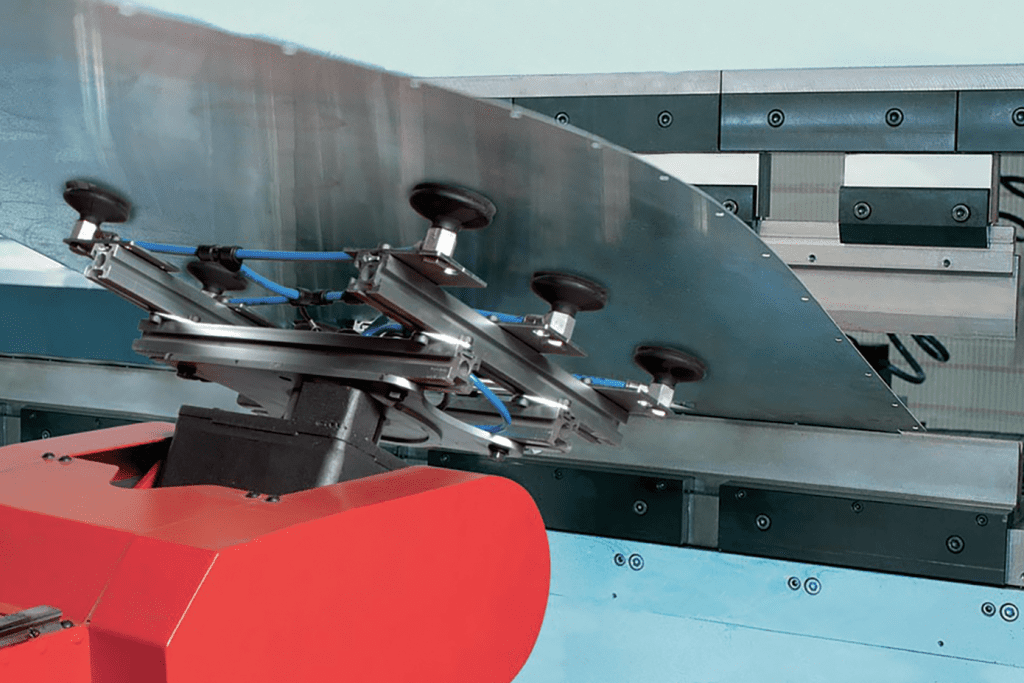

      Detail Antil-Robotic-Arm-tilting-materialDetail Antil-Robotic-Arm-tilting-material
      Detail Antil-Robotic-Arm-lifting-material-to-be-folded-on-a-press-brakeDetail Antil-Robotic-Arm-lifting-material-to-be-folded-on-a-press-brake

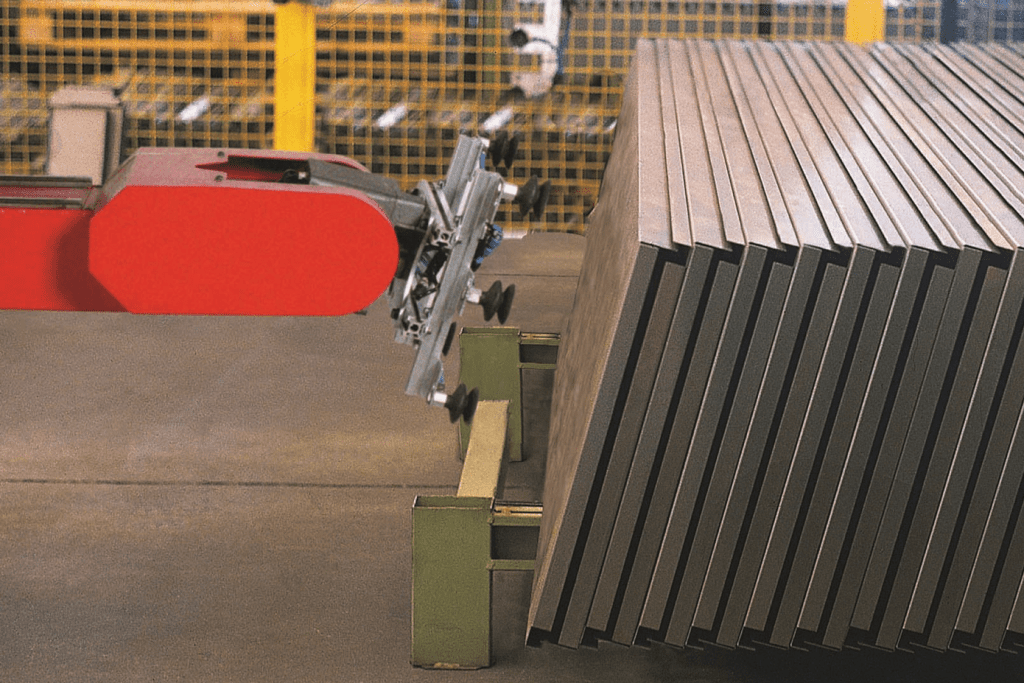

      Side view Antil-Robotic-Arm-collecting-materialSide view Antil-Robotic-Arm-collecting-material
      Antil Robotic Arm Line DiagramAntil Robotic Arm Line Diagram
      MODELAPR 30APR 50APR 50LAPR 80APR 80LAPR 120APR 250
      Working Areamm1500200020003500350030003000
      Weight at Wristkg3050508080120250
      Torque at Rotation Centrekgm9151524243675
      X Axis Travelm6-86-86-88-108-108-108-10
      Y Axis Travelmm810127012702320232018401840
      Z Axis Travelmm1530153015301645164516451625
      Working Height under the Sliding Supportmm2300230023002650265026502650
      Power SupplyV 3 Phase400400400400400400400
      CapacityKVA66610.5 – 1510.5 – 1510.5 – 1510.5 – 15
      Pneumatic FeedBAR “pipe6666666

      Features

      • The robotic wrist consists of a hollow shaft which feeds the gripper with air, vacuum and electrical signals with no risk to cut the delivery lines with the displacement of the metal sheet.
      • The robotic arm always remains in the horizontal position allowing  the positioning of the piece in the machine by holding it above and below to avoid any hindrance to the production.
      • The linear axes allow the positioning of the APR arm to always be in the same place in front of all the bending stations and on all pallets
      • Floor mounted
      • Quick transition to allow use of the manual pressbrake mode
      • Five axes, three linear, two polar
      • Position transducer of the press table with relative electronic equipment for synchronised plate following
      • Basic software for programming, palletisation and loading/unloading programmes from a PC. Night and Day automatic switching off system.
      • Plate Gripping Tool with suckers for the sample plate machining
      • Standard Rear Striker Plates with sensors dedicated to bending in automatic mode
      • 1 Centring and peeling system with 400mm magnetic locators, blowing and brushing system
      • Lateral safety grid and fontal safety photoelectric barrier

      Options

      • Extra Gripper for pieces up to 500×500
      • Extra Gripper for pieces up to 1250×1250
      • Extra Gripper for pieces up to 2500×2500
      • Hiding front supports Kg 15 for 500mm each
      • Alarm messages sending system with SMS
      • Couple of extra locators with sensors (for presses without motor controlled  axis)
      • Additional pair of sensors
