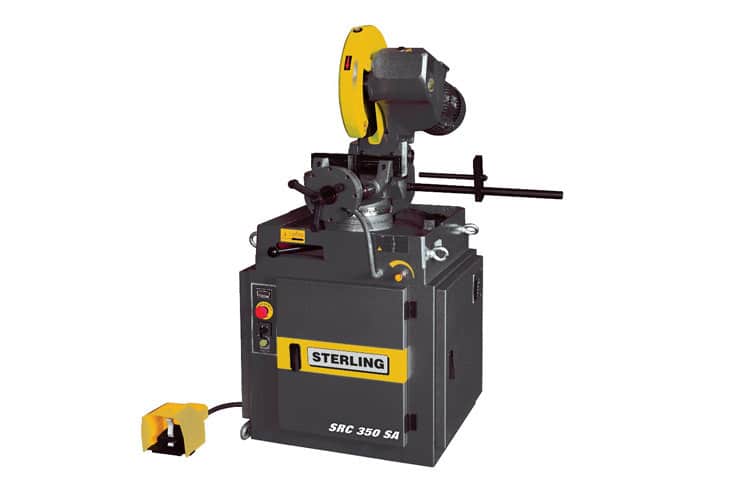

Sterling SRC 350 SA Semi-Automatic Circular Saw 415V

Description

The robust construction and quality finish of the Sterling SCR range of circular sawing machines is unrivaled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centering vices guarantees the material is always securely clamped in the optimum  cutting position. Models with 275, 315 and 350mm diameter blades are offered not only as the standard pull down version with or with out pneumatic vice system but also in the fast cutting semi-automatic design for production cutting.

Technical Spec

MODELSRC350 SA
Capacities
Tube at 90°mm115
Square Section at 90°mm100
Rectangular Section / Beam at 90°mm120 x 80
Tube at 45° L & Rmm110
Square Section at 45°mm90
Rectangular Section / Beam at 45°mm90 x 90
Blade Diametermm350
Blade Boremm32
Blade Speedsrpm40 / 80
MotorkW1.8 / 2.2
Lengthmm1100
Widthmm600
Heightmm1400
WeightKg310
OperationSemi-Automatic
VicePneumatic

Options

  • Roller track and measuring systems

Features

  • Heavy duty construction
  • Semi-automatic cutting cycle
  • Downfeed pressure regulator
  • Adjustable height for cutting stroke
  • High quality gearbox in oil bath
  • Quick set mitring 45° left and right
  • Pneumatic vice operation
  • Double clamping anti-burr vice
  • Self centring vice to ensure cutting is in optimum position
  • 2 speed motor
  • Electrical coolant pump
  • Coolant resevoir in base with return filter
  • Adjustable length stop bar
