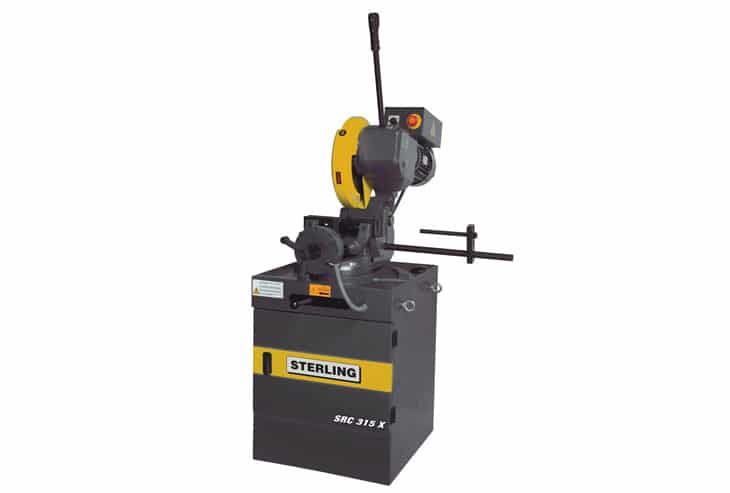

Sterling SRC 315 X Circular Saw 415V

Description

The robust construction and quality finish of the Sterling SCR range of circular sawing machines is unrivaled. The SRC range has the ability to safely and quickly cut through a multitude of materials. The material slitting feature paired with the double clamping and self centering vices guarantees the material is always securely clamped in the optimum  cutting position. Models with 275, 315 and 350mm diameter blades are offered not only as the standard pull down version with or with out pneumatic vice system but also in the fast cutting semi-automatic design for production cutting.

Technical Spec

MODELSRC315 X
Capacities
Tube at 90°mm105
Square Section at 90°mm85
Rectangular Section / Beam at 90°mm120 x 70
Tube at 45° L & Rmm90
Square Section at 45°mm80
Rectangular Section / Beam at 45°mm90 x 60
Blade Diametermm315
Blade Boremm32
Blade Speedsrpm45 / 90
MotorkW1.3 / 1.8
Lengthmm1100
Widthmm600
Heightmm1400
WeightKg210
OperationPull Down
VicePneumatic

Options

  • Roller track and measuring systems

Features

  • Heavy duty construction
  • High quality gearbox in oil bath
  • Pull down operation
  • Double head return springs
  • Quick set mitring 45° left and right
  • Pneumatic vice operation
  • Double clamping anti-burr vice
  • Self centring vice to ensure cutting is in optimum position
  • 2 speed motor
  • Electrical coolant pump
  • Coolant resevoir in base with return filter
  • Adjustable length stop bar
