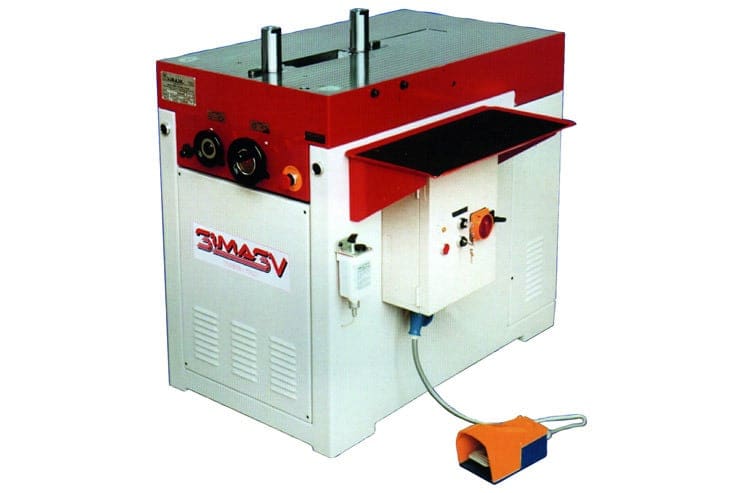

SIMSAV T70 Hydraulic Horizontal Bending Press 415V

Description

The SIMASV Horizontal Bending Machines are ideal for easy precision bending, straightening, punching and shearing. All models have a clear unencumbered worktable due to the powerful cylinder located beneath the working surface.

Technical Spec

Rated Capacity: Tonnes70 Tonnes
Max Flat Bar Bending:200 x 28mm
Max Flat Bar Bending On Edge:15 x 15mm
Max Height Straightening:76.1mm
Max Tube Capacity:200mm
Punching:35 x 12mm
Bar Shearing:15 x 160mm
Section Shearing – Square:120 x 120 x 5mm
Section Shearing – Rectangle:120 x 180 x 5mm
Section Shearing – Angle:120 x 120 x 5mm
Section Shearing – Channel:120 x 60 x 5mm
Table Height:980mm
Table Size:820 x 1720mm
Approach Speed:1780 mm/min
Stroke Length:330mm
Return Speed:2218 mm/min
Min Distance From Ram To Post:190mm
Max Distance From Ram To Post:524mm
Motor: Kw5.5 Kw
Length:1860mm
Width:1380mm
Height:1160mm
Weight:1910 Kg

Features

  • Very adaptable machine able to render many functions.
  • Very quiet operation.
  • Rapid change tool pins.
  • Stroke regulation by means of extremely sensitive electric limit switches and graduated rule.
  • Large range of special tooling.
  • Ideal for jobbing or production applications.
