SIMASV T Hydraulic Horizontal Bending Press 415V

Main view - Simasv-T-Hydraulic-Horizontal-Bending-Press

The Simasv hydraulic horizontal bending machines are ideal for precision bending, straightening, punching and shearing. All models are equipped with powerful hydraulic cylinders located below the table providing an unencumbered working area. This is of particular benefit compared with traditional bending machines and pressbrakes as enclosed bends can be completed without colliding with the machine frame. Available with capacities from 22 tonnes up to 100 tonnes and with a large range of tooling, these machines have proved capable of performing a whole variety of operations.

Main view - Simasv-T-Hydraulic-Horizontal-Bending-Press

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view - Simasv-T-Hydraulic-Horizontal-Bending-PressMain view - Simasv-T-Hydraulic-Horizontal-Bending-Press
Video thumbnail showing the SIMASV T Hydraulic Horizontal Bending Press 415V
Video thumbnail showing the SIMASV T Hydraulic Horizontal Bending Press 415V
SIMASV T Hydraulic Horizontal Bending Press 415V image 4SIMASV T Hydraulic Horizontal Bending Press 415V image 4

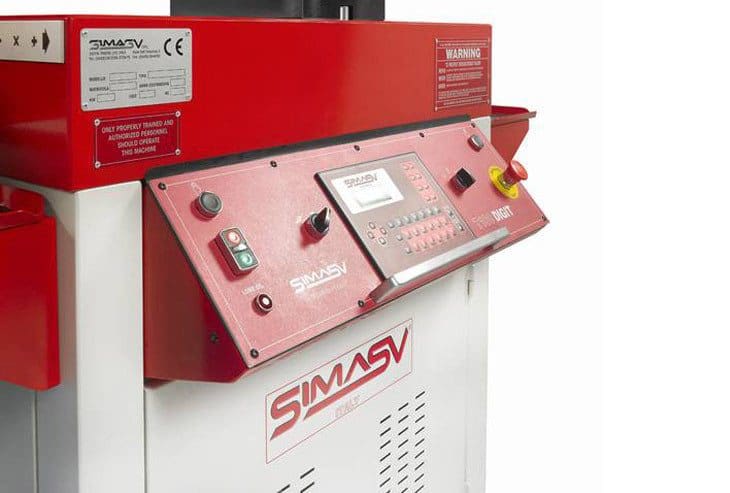

Front view Simasv-Hydraulic-T100-Horizontal-Bending-Press-with-Two-Axis-programmer-pictured-with-Bending-ToolsFront view Simasv-Hydraulic-T100-Horizontal-Bending-Press-with-Two-Axis-programmer-pictured-with-Bending-Tools
Simasv Horizontal Bending MachineSimasv Horizontal Bending Machine
Simasv Horizontal Bending MachineSimasv Horizontal Bending Machine
Close up detail Bar Straightening on a Simasv Horizontal PressClose up detail Bar Straightening on a Simasv Horizontal Press
Close up detail Shearing on a Simasv Horizontal PressClose up detail Shearing on a Simasv Horizontal Press
Close up detail bending on enclosed shapes on a Simasv Horizontal PressClose up detail bending on enclosed shapes on a Simasv Horizontal Press
Close up detail Circle Forming on a Simasv Horizontal PressClose up detail Circle Forming on a Simasv Horizontal Press
Close up detail Flat Bar Bending on a Simasv Horizontal PressClose up detail Flat Bar Bending on a Simasv Horizontal Press
Close up detail Flat Bar Bending on a Simasv Horizontal PressClose up detail Flat Bar Bending on a Simasv Horizontal Press
Close up detail Heavy wall tube bending on a Simasv Horizontal PressClose up detail Heavy wall tube bending on a Simasv Horizontal Press
Close up detail Hook Forming on a Simasv Horizontal PressClose up detail Hook Forming on a Simasv Horizontal Press
Close up detail Profile Forming on a Simasv Horizontal PressClose up detail Profile Forming on a Simasv Horizontal Press
Close up detail Scroll Forming on a Simasv Horizontal PressClose up detail Scroll Forming on a Simasv Horizontal Press
Close up detail Rotary Tube Bending on a Simasv Horizontal PressClose up detail Rotary Tube Bending on a Simasv Horizontal Press
SIMASV T Hydraulic Horizontal Bending Press 415V image 19SIMASV T Hydraulic Horizontal Bending Press 415V image 19
MODEL   T22 T40 T70 T100
stock code 21116 21119 21131 21121
Table size mm 630 x 1100 625 x 1100 820 x 1720 880 x 1900
Table height mm 955 955 980 1040
Stroke mm 200 250 330 330
Approach speed mm/min 1750 1750 1780 1780
Return speed mm/min 1980 1980 2218 2051
Min distance from ram to post mm 120 120 194 242
Max distance from ram to post mm 320 370 524 572
Motor kW 1.5 3 5.5 5.5
Length mm 1150 1150 1860 2000
Width mm 630 1200 1380 1440
Height mm 1050 1110 1160 1275
Weight kg 630 900 1910 2500

Features

  • Very adaptable machine able to render many functions.
  • Very quiet operation.
  • Rapid change tool pins.
  • Stroke regulation by means of extremely sensitive electric limit switches and graduated rule.
  • Large range of special tooling.
  • Ideal for jobbing or production applications.

Options
