SIMASV T22 Digitcool 2 AXES CNC Hydraulic Horizontal Bending Press 415V

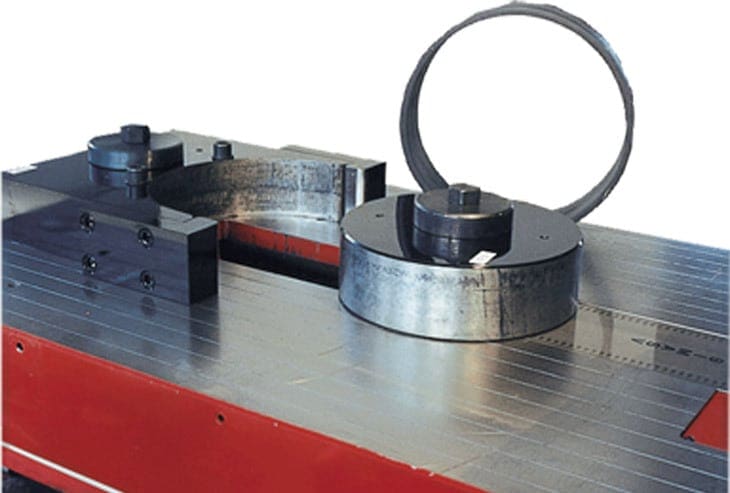

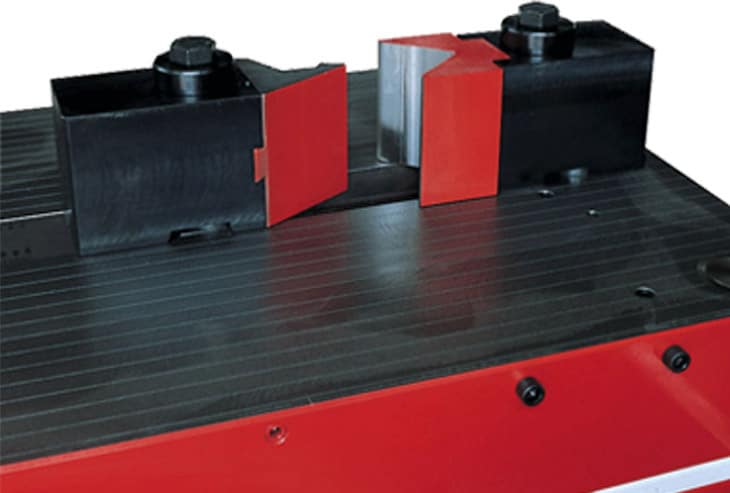

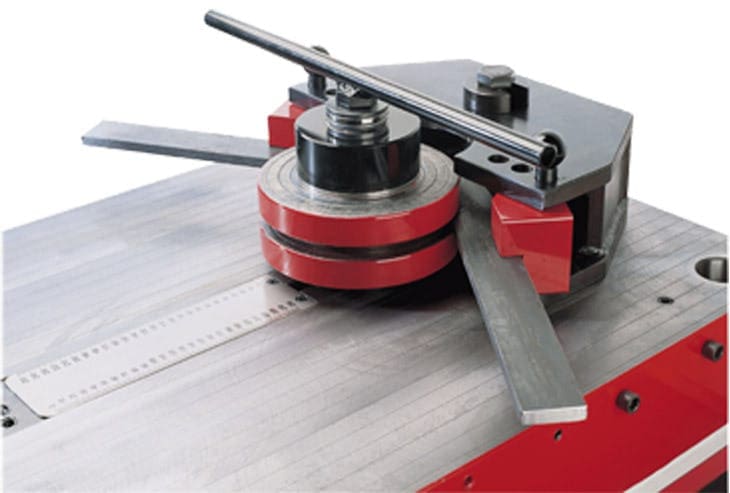

The Simasv hydraulic horizontal bending machines are ideal for precision bending, straightening, punching and shearing. All models are equipped with powerful hydraulic cylinders located below the table providing an unencumbered working area. This is of particular benefit compared with traditional bending machines and pressbrakes as enclosed bends can be completed without colliding with the machine frame. Available with capacities from 22 tonnes up to 100 tonnes and with a large range of tooling, these machines have proved capable of performing a whole variety of operations.

Technical Spec

Rated Capacity: Tonnes22 Tonnes
Max Flat Bar Bending:120 x 15mm
Max Flat Bar Bending On Edge:8 x 100mm
Max Height Straightening:150mm
Max Tube Capacity:48.3mm
Punching:30 x 4.5mm
Bar Shearing:10 x 100mm
Section Shearing – Square:80 x 80 x 2mm
Section Shearing – Rectangle:60 x 80 x 2mm
Section Shearing – Angle:80 x 80 x 4mm
Section Shearing – Channel:80 x 40 x 4mm
Table Height:955mm
Table Size:630 x 1100mm
Approach Speed:1750 mm/min
Stroke Length:200mm
Return Speed:1980 mm/min
Min Distance From Ram To Post:120mm
Max Distance From Ram To Post:320mm
Motor: Kw1.5 Kw
Weight:790 Kg


  • Very adaptable machine able to render many functions.
  • 2 Axes Programmer for repeatability.
  • Very quiet operation.
  • Rapid change tool pins.
  • Stroke regulation by means of highly sensitive electric limit switches and graduated rule.
  • Large range of special tooling.
  • Ideal for jobbing or production applications.
