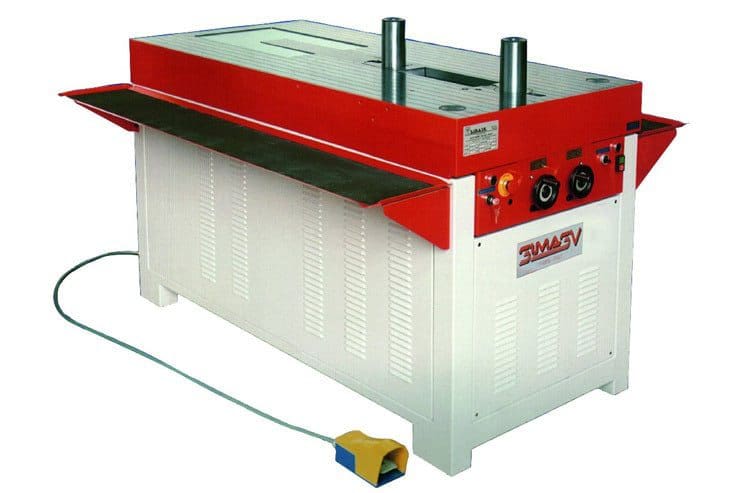

SIMASV T100 Hydraulic Horizontal Bending Press 415V


The Simasv hydraulic horizontal bending machines are ideal for precision bending, straightening, punching and shearing. All models are equipped with powerful hydraulic cylinders located below the table providing an unencumbered working area. This is of particular benefit compared with traditional bending machines and pressbrakes as enclosed bends can be completed without colliding with the machine frame. Available with capacities from 22 tonnes up to 100 tonnes and with a large range of tooling, these machines have proved capable of performing a whole variety of operations.

Technical Spec

Rated Capacity: Tonnes100 Tonnes
Max Flat Bar Bending:230 x 35mm
Max Flat Bar Bending On Edge:25 x 150mm
Max Height Straightening:250mm
Max Tube Capacity:88.9mm
Punching:30 x 24mm
Bar Shearing:20 x 160mm
Section Shearing – Square:120 x 120 x 5mm
Section Shearing – Rectangle:120 x 180 x 5mm
Section Shearing – Angle:120 x 120 x 5mm
Section Shearing – Channel:120 x 60 x 5mm
Table Height:1040mm
Table Size:880 x 1900mm
Approach Speed:1780mm
Stroke Length:330mm
Return Speed:2051mm
Min Distance From Ram To Post:242mm
Max Distance From Ram To Post:572mm
Motor: Kw5.5 Kw
Weight:2500 Kg


  • Very adaptable machine able to render many functions.
  • Very quiet operation.
  • Rapid change tool pins.
  • Stroke regulation by means of extremely sensitive electric limit switches and graduated rule.
  • Large range of special tooling.
  • Ideal for jobbing or production applications.
