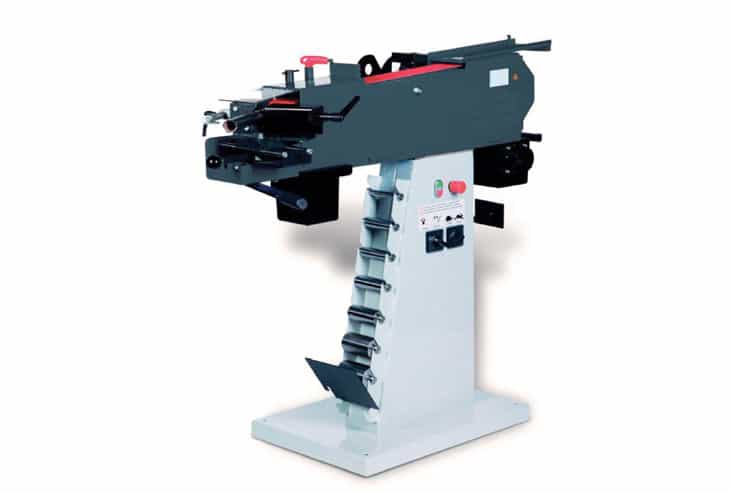

RVD T100 Triple Grind Tube Notcher & Belt Grinder 415v

Description

The RVD T100 Triple Grind Tube Notcher & Belt Grinder is an innovative, multi funtional machine. On the front end there is a efficient mitering pipe notcher, on the top a deburring table and on the back end a belt grinder. Changing from pipe notcher to belt grinder is just a CLICK OF A SWITCH! This is the only machine of it’s kind on the market. There are belt grinding machines on the market that can be adapted to a tube nother by a tube notching attachment. The attachment change over on these machines are very time consuming.

Technical Spec

Capacity:19 mm – 76.1 mm
Angle Notch To 60 Degrees:90 Degress – 30 Degrees
Belt Size:100 x 2000 mm
Motor: Kw3 Kw. 2 Speeds: 1400 – 2800 RPM
Length:1340 mm
Width:700 mm
Height:1210 mm
Weight:159 Kg

Features

  • Designed & Made By ALMI (The well known tube notching manufacturer in the Netherlands)

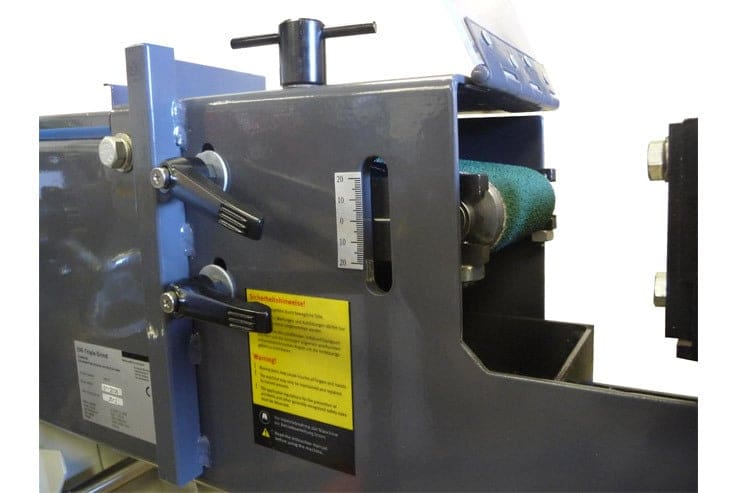

  • Off Center Grinding Feature

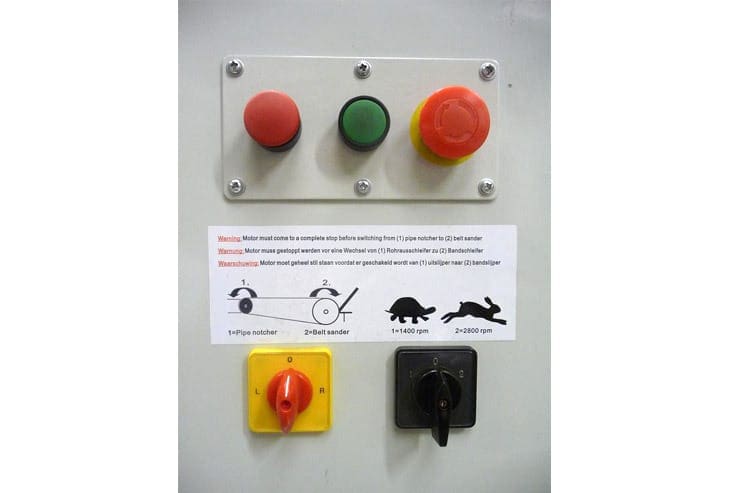

  • Two Speeds. (Slow speed for stainless)
  • Double Length Stops
  • Strong Mitering Clamping System

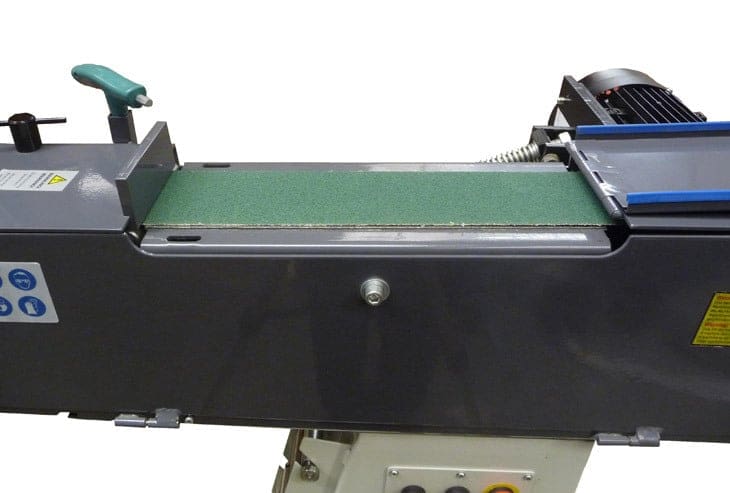

  • Deburring Support
  • 2 Dust Collection Boxes
  • Allan Key To Operate /Adjust The Machine

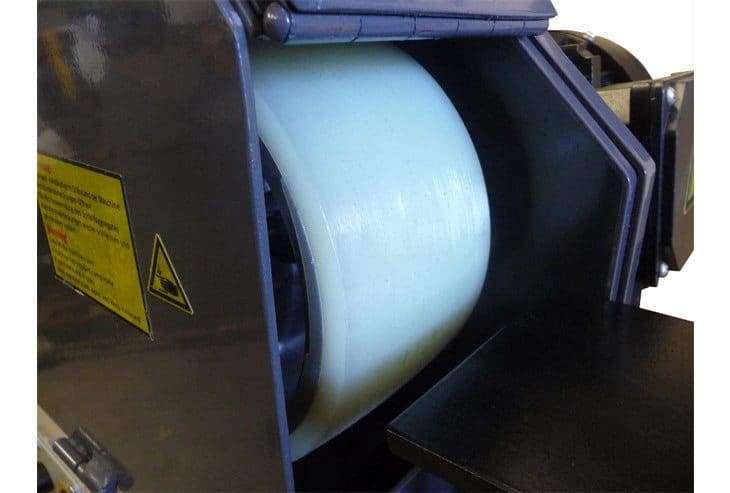

  • Easy Roll Change Over System
  • 42.4mm Grinding Roller As Standard

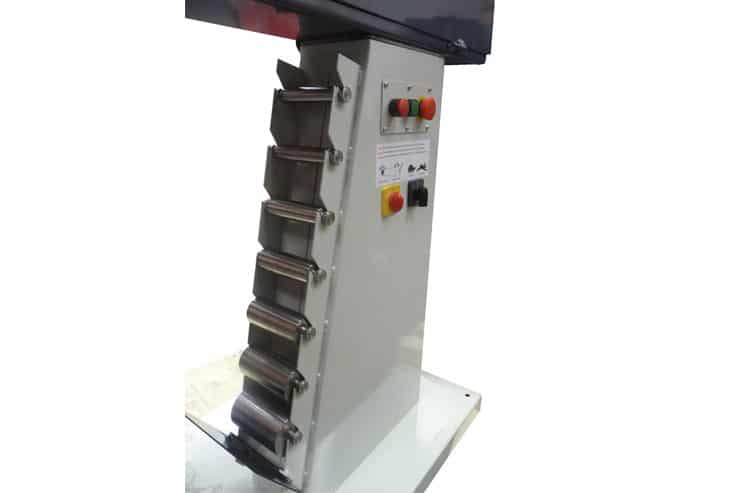

  • Roller Holder Rack (Space for 8 Rollers)
  • Dust Stopper. A Plate That Sits In Front Of The Tube Notcher When Using The Belt Grinder. This Plate Directs Belt Grinding Sparks Into The Front Dust Collector.
