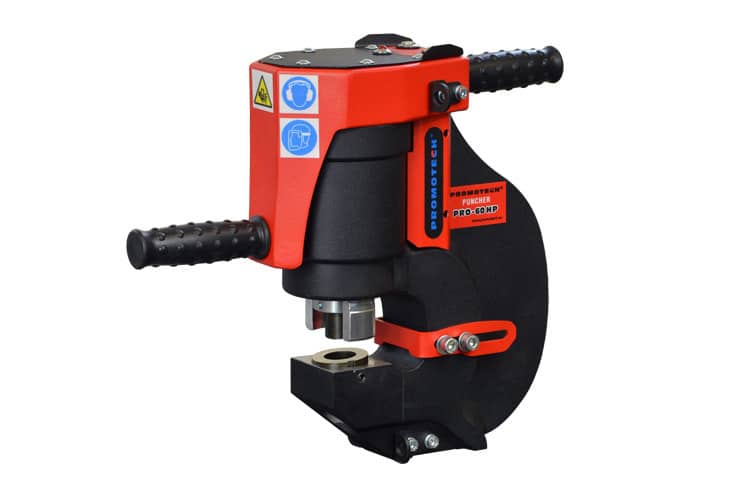

Promotech PRO-60 HP Hydraulic Portable Punching Machine

Description

The Promotech PRO-60 HP portable punching machines are ideal for the punching of I beams that are too large and heavy to be processed with fixed steelworkers and punching machines. There are also considerable time savings and consumable cost savings compared to traditional magnetic drilling machines as well as the advantage of being able to punch square and slot holes.

Technical Spec

MODELPRO-60 HP
Rated Capacitytonnes35
Maximum Capacitiesmm27 x 13
Maximum Punching Thicknessmm13
Punching Strokemm18
Throat Depthmm60
WeightKg20
Punching Timesec5
Return Timesec2

Options

  • Bench top stand
  • Foot pedal control
  • Hoist set with adjustable height and balancer
  • Beam slide with adjustable depth

Features

  • Fast clean punching of holes
  • Almost noiseless operation
  • Double action fully automated punching and return
  • Intelligent control system with inching capability and automatic load detection
  • Adjustable depth stop
  • 5M hydraulic hose
  • Wide range of punches and dies available in round, square and slot
