Promotech PRO HP Hydraulic Portable Punching Machine

Main view - Promotech-PRO-HP-Hydraulic-Portable-Punching-Machine

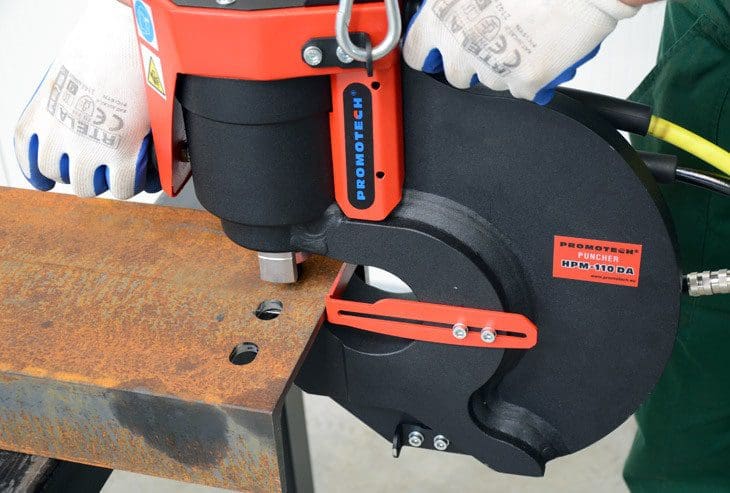

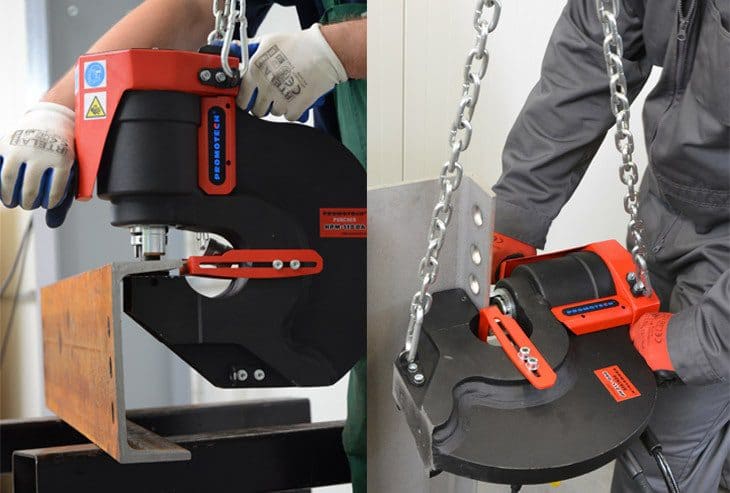

The Promotech PRO HP portable punching machines are ideal for the punching of I beams that are too large and heavy to be processed with fixed steelworkers and punching machines. There are also considerable time savings and consumable cost savings compared to traditional magnetic drilling machines as well as the advantage of being able to also punch square and slot holes too.

We also sell Punches and Dies for the Promotech range on our tooling website. Not sure which you need? Speak to our sales team.

Main view - Promotech-PRO-HP-Hydraulic-Portable-Punching-Machine
Main view - Promotech-PRO-HP-Hydraulic-Portable-Punching-MachineMain view - Promotech-PRO-HP-Hydraulic-Portable-Punching-Machine
Video thumbnail showing the Promotech PRO HP Hydraulic Portable Punching Machine

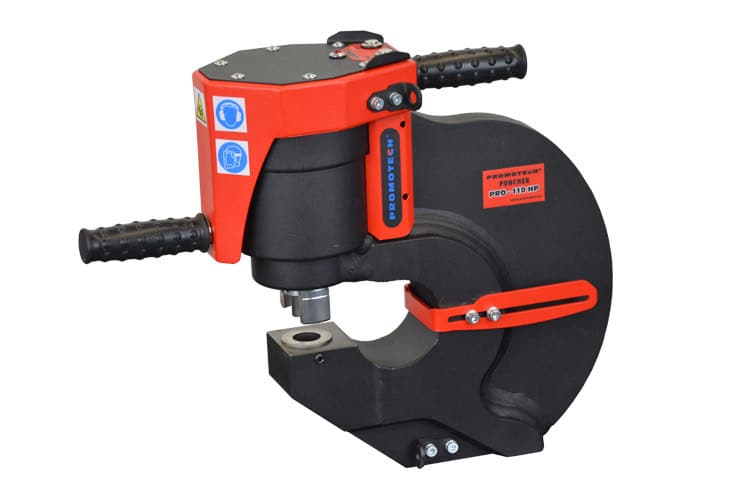

Front view Promotech PRO-110 HP Hydraulic Portable Punching MachineFront view Promotech PRO-110 HP Hydraulic Portable Punching Machine
Promotech PRO HP Hydraulic Portable Punching Machine image 4Promotech PRO HP Hydraulic Portable Punching Machine image 4
Promotech PRO HP Hydraulic Portable Punching Machine image 5Promotech PRO HP Hydraulic Portable Punching Machine image 5
Promotech Hydraulic Portable Punching MachinePromotech Hydraulic Portable Punching Machine
Promotech Hydraulic Portable Punching MachinePromotech Hydraulic Portable Punching Machine
Promotech Hydraulic Portable Punching MachinePromotech Hydraulic Portable Punching Machine
Promotech PRO Hydraulic Portable Punching MachinePromotech PRO Hydraulic Portable Punching Machine
Promotech PRO Hydraulic Portable Punching MachinePromotech PRO Hydraulic Portable Punching Machine
Promotech PRO Hydraulic Portable Punching MachinePromotech PRO Hydraulic Portable Punching Machine
Promotech PRO HP Hydraulic Portable Punching Machine image 12Promotech PRO HP Hydraulic Portable Punching Machine image 12
Promotech_Dimensions-PRO-60-HP
Dimensions PRO 60 HP
Promotech_Dimensions-PRO-60-HP
Promotech_Dimensions-PRO-110-HP
Dimensions PRO 110 HP
Promotech_Dimensions-PRO-110-HP
MODEL   PRO-60 HP PRO-110 HP
STOCK CODE 16550 16551
Rated Capacity tonnes 35 47
Maximum Capacities mm 27 x 13 27 x 16
Maximum Punching Thickness mm 13 16
Punching Stroke mm 18 25
Voltage V 230 230
Throat Depth mm 60 110
Weight kg 20 35
Punching Time sec 5 8
Return Time sec 2 2
Power Supply V / H 230 /50 or 115 / 60 230 /50 or 115 / 60
Power W 2000 2000
Working Pressure bar 700 700
Pump Output L/min 1.5 1.5
Oil Capacity L 10 10

Features

  • Fast clean punching of holes
  • Almost noiseless operation
  • Double action fully automated punching and return
  • Intelligent control system with inching capability and automatic load detection
  • Adjustable depth stop
  • 5M hydraulic hose
  • Wide range of punches and dies available in round, square and slot

Options

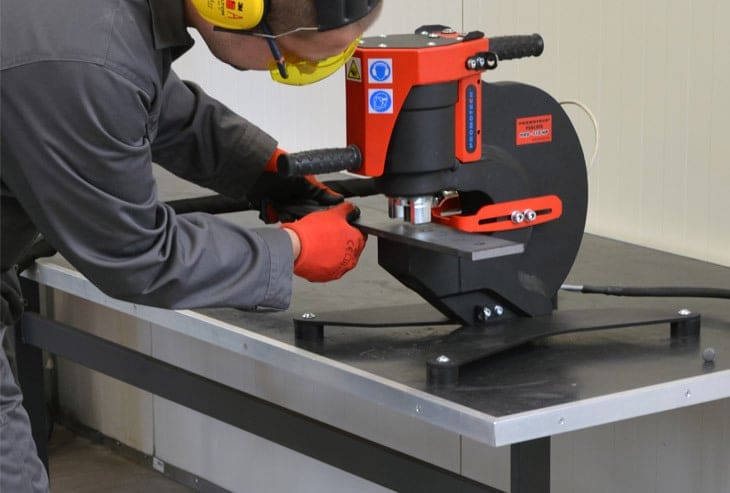

  • Bench top stand
  • Foot pedal control

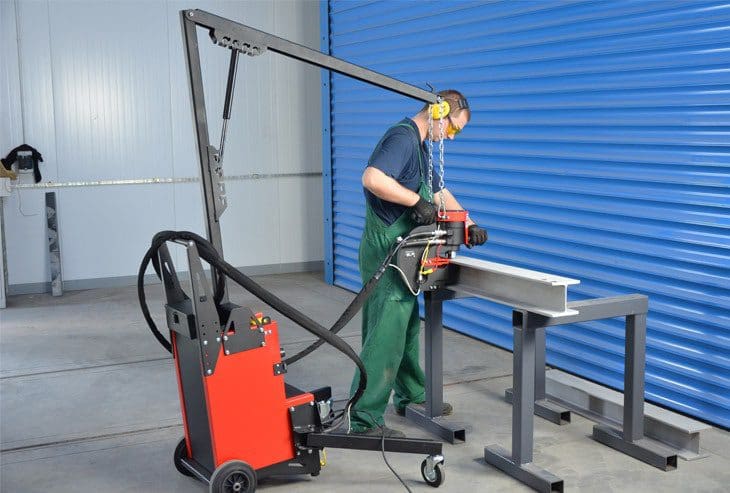

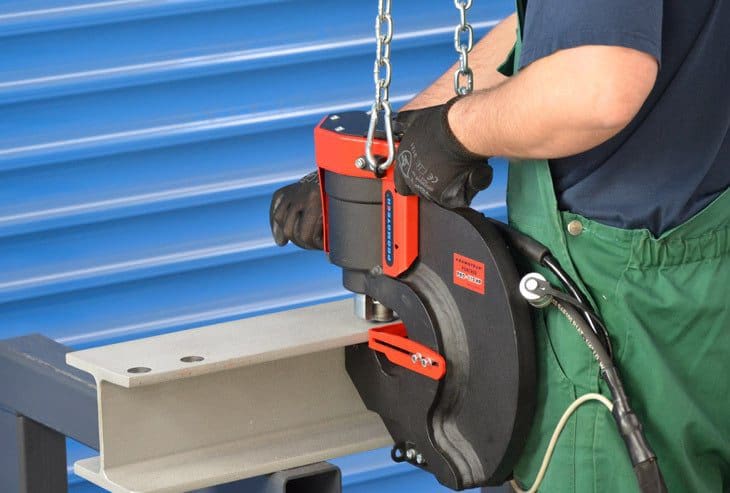

  • Hoist set with adjustable height and balancer

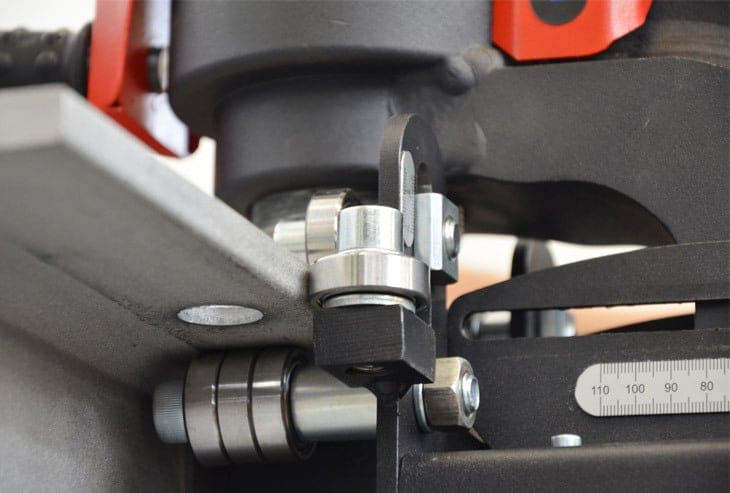

  • Beam slide with adjustable depth

The Promotech portable punching machines are ideal for the punching of I beams that are too large and heavy to be processed with fixed steelworkers and punching machines. There are also considerable time savings and consumable cost savings compared to traditional magnetic drilling machines as well as the advantage of being able to punch square and slot holes.
