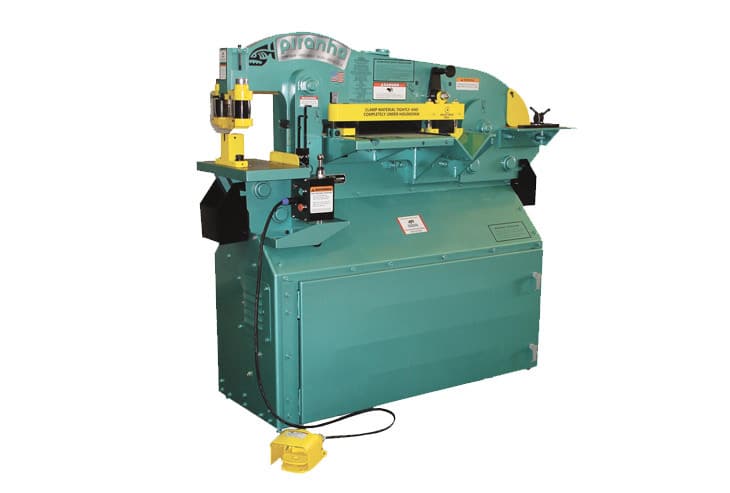

Piranha P-70 Single Operator Steelworker
Piranha P-70 Single Operator Steelworker gives metal fabricators outstanding quality and innovative features. Every Piranha provides quality work, saving time in set up, adaptability and versatility through a wide range of tooling, and factory engineering support.
Request a Quote
|Platen Table Size (D-W)||mm||300 x 530|
|PunchHole Size (Max. Material)Max. Hole Size (Material)||kNmmmm||62530 (19)114 (5)|
|Plate Shear||mmmmmm||460 Long25 x 15020 x 30012 x 460|
|Angle Shear **w/special blade||mm||127 x 127 x 13|
|Bar ShearRound (Min. – Max.)Square (Min. – Max.)||mmmm||12 – 5012 – 35|
|Coper-Notcher||kNmm||67090 x 125 x 10|
|Bending Attach. (std.)Optional Length||mmmm||300600|
|Punch EndStrokes Per MinuteOptional Speed-Up Kit||mm||40 @ 19NA|
|Work Station Height (approx.)||mm||1067|
|HydraulicsPump LPMSystem R/V bar||56179|
|Motor – Optional Phase & Voltage|
|Dimensions||mm||787 x 2007 x 1626|

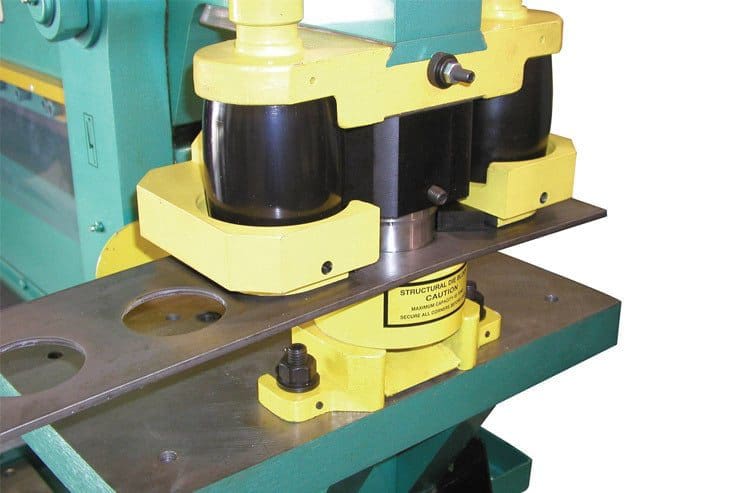

- Punch Station
The urethane strippers keep the material flat to ensure a better quality punch. The shorter stroke ensures faster productivity and with no adjustments required results in an efficient and easy to use production.

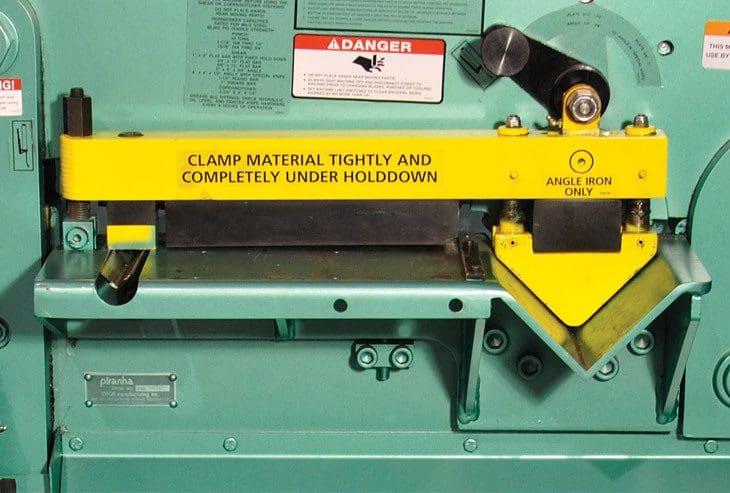

- Shearing Station
The urethane hold-downs clamp and unclamp the material automatically with each stroke ensuring faster productivity. Unlike other conventional steelworkers the parts remain clamped during the entire shearing cycle to ensure a more accurate result. The complete clamping cycle promotes longer blade life making it much more cost effective.
- Shearing Visibility
Much easier to line up a cut line to the shear blade as the operator has a direct line of sight.
- Shear Blade
The low rake angle shear blade results in flatter parts being produced at a better quality. Piranha provide four shear edges on each blade to enhance cost efficiency and blade longevity.

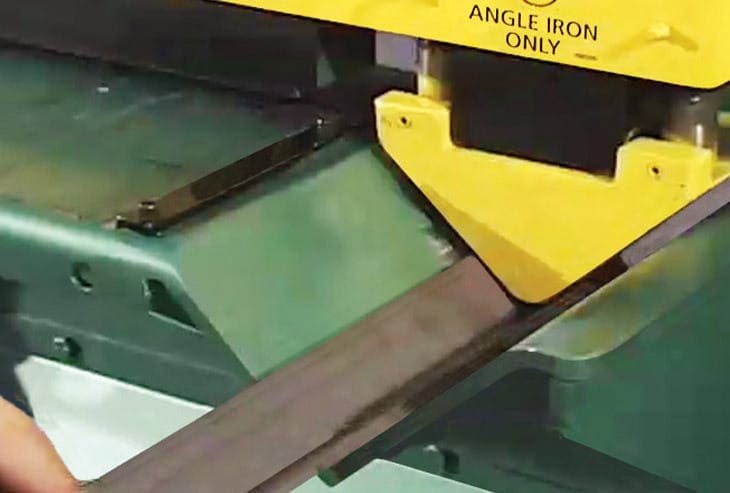

- Angle Shear
The floating upper blade seats in the centre of the angle eliminating distortion ensuring the cut piece does not deform.

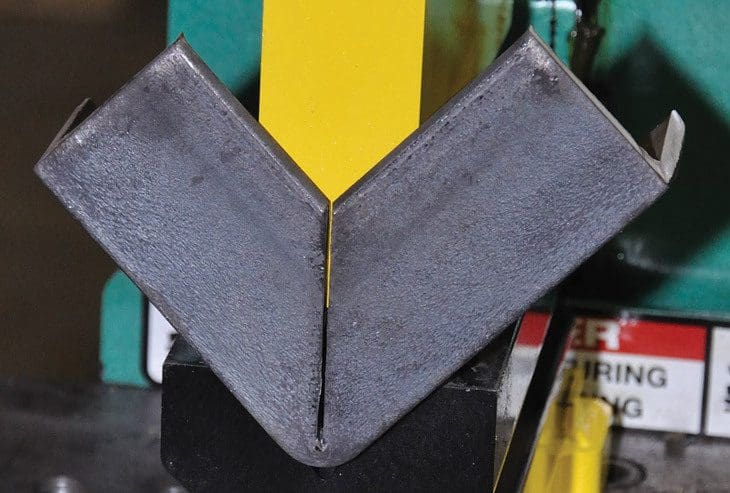

- Coper Notch
The low rake angle blade keeps the part flat and under control during notching process.

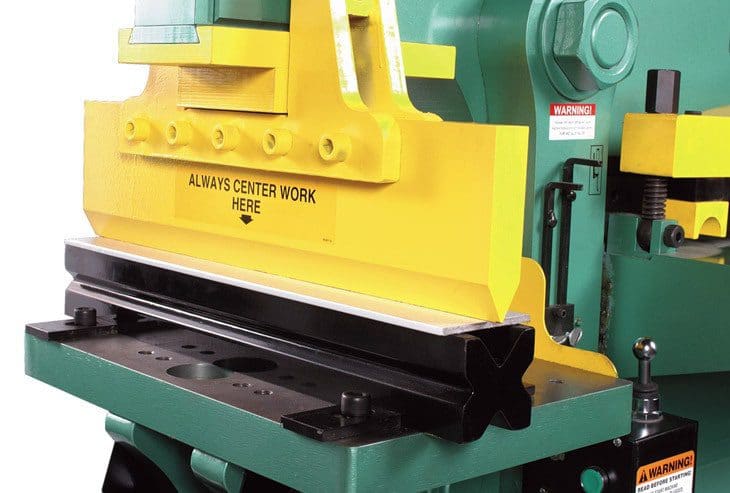

- Bending Attachment
The open ended attachment allows the angle to bent easily.
- Installing the Attachment
The dovetail slide makes the bending attachment easy to install.
- Ease of Use
All attachments and stations are at the same height making it easier to use. No need to adjsut the feed table height between stations.

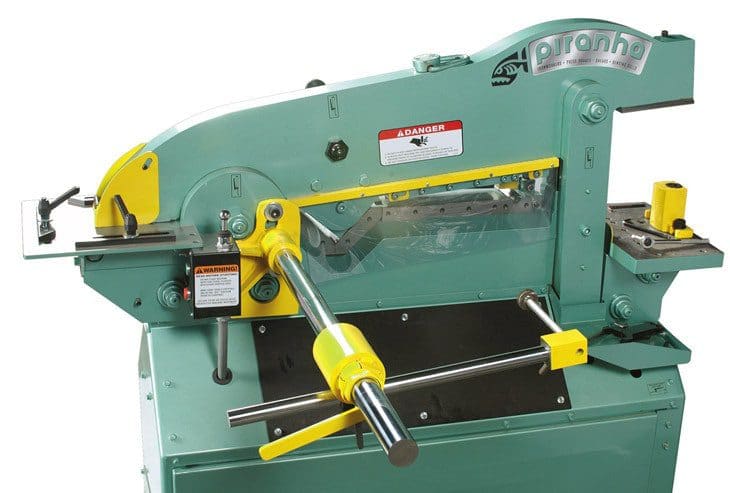

- Pipe/Tube Bending Attachment
- Channel Die Block
- Bending Attachments – Optional sizes range from 300 – 1120mm
- 28XX Punch Attachment

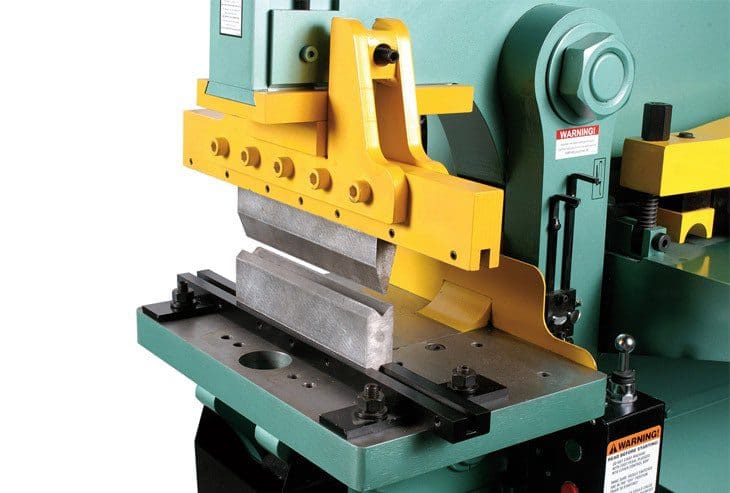

- Press Brake Tooling Holders
- Quick set Gauging Tables – Fast set-up for punching multiple holes. Includes plate & angle-gauging guide bars. With left and right hand extensions available in 1.5m and 3m lengths.
- Channel Shear
- Bar Bender – Up to 65mm depending on available tonnage with adjustable die for different radii.
- Mechanical Backgauges
- Electrical Backgauges
- 38mm Oversize Punch Attachment

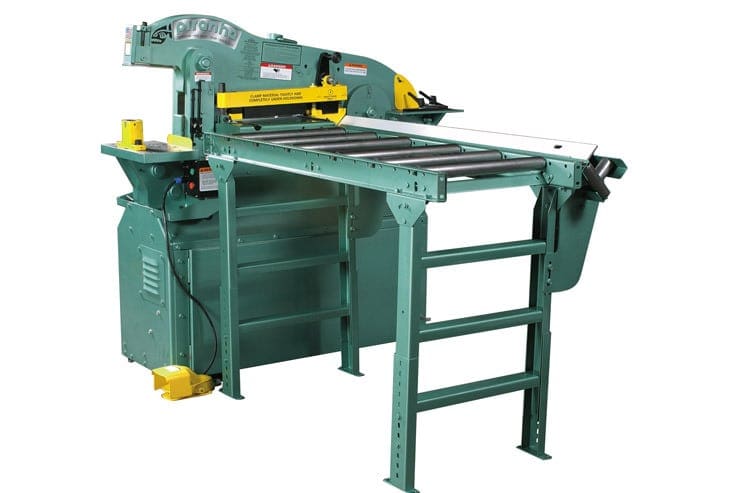

- Roller Feed Tables
