Piranha P Single Operator Steelworker

Main view - Piranha-P-Single-Operator-Steelworker

Piranha P Single Operator Steelworker gives metal fabricators outstanding quality and innovative features. Every Piranha provides quality work, saving time in set up, adaptability and versatility through a wide range of tooling, and factory engineering support.

Main view - Piranha-P-Single-Operator-Steelworker

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view - Piranha-P-Single-Operator-SteelworkerMain view - Piranha-P-Single-Operator-Steelworker
Video thumbnail showing the Piranha P Single Operator Steelworker

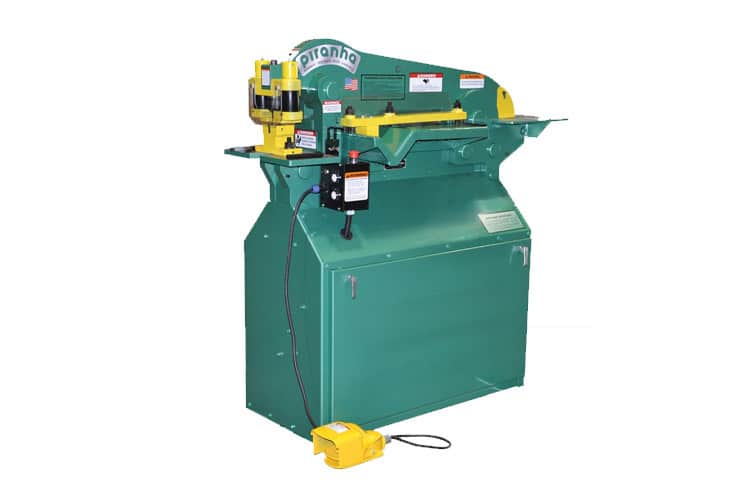

Piranha P-70 Single Operator SteelworkerPiranha P-70 Single Operator Steelworker
Piranha P-90 Single Operator SteelworkerPiranha P-90 Single Operator Steelworker
Angle Bending DetailAngle Bending Detail
Material Clamping DetailMaterial Clamping Detail
Optional Roller Track AttachmentOptional Roller Track Attachment
Optional AttachmentOptional Attachment
Optional Tooling Attachment for BendingOptional Tooling Attachment for Bending
Optional Tooling Attachment for PunchingOptional Tooling Attachment for Punching
Optional Tooling Attachment for BendingOptional Tooling Attachment for Bending
Angle Shearing DetailAngle Shearing Detail
MODEL P-50 P-65 P-90 P-110 P-140
Throat Depth 130mm 200mm 250mm 300mm 300mm
Open Height 300mm 350mm 380mm 400mm 400mm
Closed Height 190mm 235mm 260mm 260mm 260mm
w/o Die Block
Stroke Length 101mm 108mm 123mm 133mm 133mm
Platen Table Size (D-W) 200 x 250mm 250 x 430mm 300 x 530mm 370 x 530mm 370 x 530mm
Punch 355kN 445kN 625kN 800kN 1070kN
Hole Size (Max. Material) 25mm (12mm) 21mm (19mm) 30mm (19mm) 28mm (25mm) 38mm (25mm)
Max. Hole Size (Material) 38mm (5mm) 127mm (3mm) 114mm (5mm) 127mm (5mm) 127mm (6mm)
Plate Shear 330mm Long 380mm Long 460mm Long 520mm Long 520mm Long
15 x 150mm 20 x 250mm 25 x 150mm 25 x 300mm 25 x 300mm
12 x 200mm 16 x 380mm 20 x 300mm 20 x 450mm 20 x 450mm
6 x 330mm 12 x 460mm 12 x 500mm 12 x 500mm
Angle Shear 90 x 90 125 x 125 x 10mm 127 x 127 150×150 150 x 150
**w/ special blade x 8mm 100 x 100 x 12mm x 13mm x16mm x 16mm
Bar Shear Optional
Round (min. to max.) 6 to 36mm 6 to 38mm 12 to 50mm 12 to 50mm 12 to 50mm
Square (min. to max.) 12 to 25mm 12 to 25mm 12 to 35mm 12 to 35mm 12 to 35mm
Coper-Notcher (Tons) 350kN 500kN 670kN 845kN 845kN
(Max.) 60 x 75 x 6mm 70 x 100 x 6mm 90 x 125 x 10mm 100 x 150 x 10mm 100 x 150 x10mm
Bending Attach. (std.) 150mm 200mm 300mm 300mm 300mm
(Optional Length) 300mm 300, 350, 600mm 600mm 600mm 600mm
Punch End
Strokes Per Minute 50 @ 12mm 60 @ 12mm 30 @ 19mm 40 @ 19mm 40 @ 19mm
Optional Speed-Up Kit N/A N/A N/A
Work Station Height 1067mm 1067mm 1067mm 1118mm 1118mm
(Approx.)
Hydraulics
Pump LPM 28 39 56 56 56
System R/V bar 138 179 179 183 241
Fluid Capacity (Liters) 45 75 94 94 94
Motor Std. 230/460 3 Ph.
1800 RPM 3kW 3 Ph. 7kW 3 Ph. 11kW 3 Ph. 11kW 3 Ph. 14kW 3 Ph.
Opt. Phase & Voltage
Available
Dimensions (Net) 610 x 1397 610 x 1676 787 x 2007 889 x 2286 889 x 2286
W-L-H Approx. x 1473mm x 1524mm x 1626mm x 1689mm x 1689mm
Weight (Net) 771 1179 1928 2630 2812
kg Approx.

Features

  • Punch Station

The urethane strippers keep the material flat to ensure  a better quality punch. The shorter stroke ensures faster productivity and with no adjustments required results in an efficient and easy to use production.

  • Shearing Station

The urethane hold-downs clamp and unclamp the material automatically with each stroke ensuring faster productivity. Unlike other conventional steelworkers the parts remain clamped during the entire shearing cycle to ensure a more accurate result. The complete clamping cycle promotes longer blade life making it much more cost effective.

  • Shearing Visibility

Much easier to line up a cut line to the shear blade as the operator has a direct line of sight.

  • Shear Blade

The low rake angle shear blade results in flatter parts being produced at a better quality. Piranha provide four shear edges on each blade to enhance cost efficiency and blade longevity.

  • Angle Shear

The floating upper blade seats in the centre of the angle eliminating distortion ensuring the cut piece does not deform.

  • Coper Notch

The low rake angle blade keeps the part flat and under control during notching process.

  • Bending Attachment

The open ended attachment allows the angle to bent easily.

  • Installing the Attachment

The dovetail slide makes the bending attachment easy to install.

  • Ease of Use

All attachments and stations are at the same height making it easier to use. No need to adjsut the feed table height between stations.



Options

  • Pipe/Tube Bending Attachment
  • Channel Die Block
  • Bending Attachments – Optional sizes range from 300 – 1120mm
  • 28XX Punch Attachment
  • Press Brake Tooling Holders
  • Quick set Gauging Tables – Fast set-up for punching multiple holes. Includes plate & angle-gauging guide bars. With left and right hand extensions available in 1.5m and 3m lengths.
  • Channel Shear
  • Bar Bender – Up to 65mm depending on available tonnage with adjustable die for different radii.
  • Mechanical Backgauges
  • Electrical Backgauges
  • 38mm Oversize Punch Attachment
  • Roller Feed Tables
