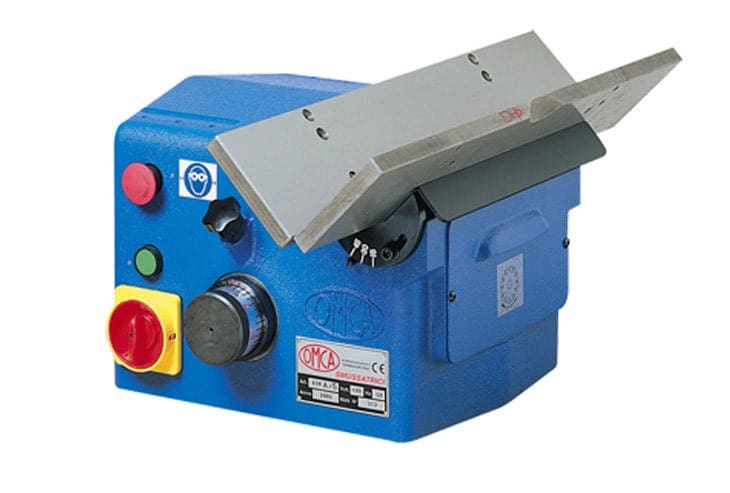

Omca ART 650A/S Beveller 415V

Description

The Omca ART 650A/S Beveller 415V specialist range of bevelling machines are manufactured in Italy to the highest standards of quality. These machines have proven both popular in the demanding welding and fabrication environment as well as for students at schools and colleges carrying out weld preparation tasks. The bench and portable models are supplied with large diameter milling cutters and can easily create a chamfer up to its maximum capacity in one pass.

Technical Spec

MODELART 650 A/S
Max Bevel Width at 45°mm10
Bevelling Angle Range°15 – 45
Table Lengthmm600
Motorkw0.56
Lengthmm600
Widthmm350
Heightmm500
Weightkg55

Options

  • Device for external bevelling of pipes. ART 790 – STOCK CODE 17304

Features

  • Powerful three phase motor.
  • 70mm diameter milling cutters with twelve inserts.
  • Fast bevelling of steel plates in one pass.
  • Micrometric bevel depth adjustment.
