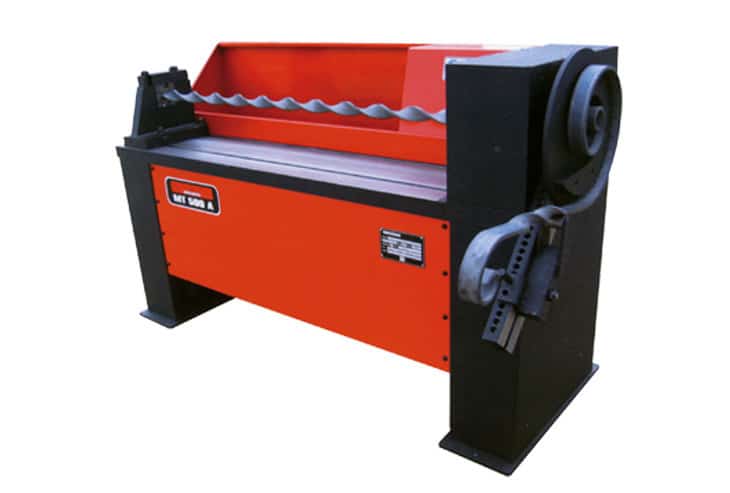

Nargesa MT500A Automatic Scrollmaker 415v

Description

The Nargesa twisting and bending machines have been designed to coldbend and twist components for the decorative and ornamental ironwork industry. A comprehensive tooling package to enable bar twisting, bar bending and rope braiding is standard with each machine. Optional attachments for tube bending and bow top fencing are available. The quick tool change system ensures minimum down time providing maximum efficiency. The programmable models ensure job repeat-ability for consistent bending and twisting requirements.

Technical Spec

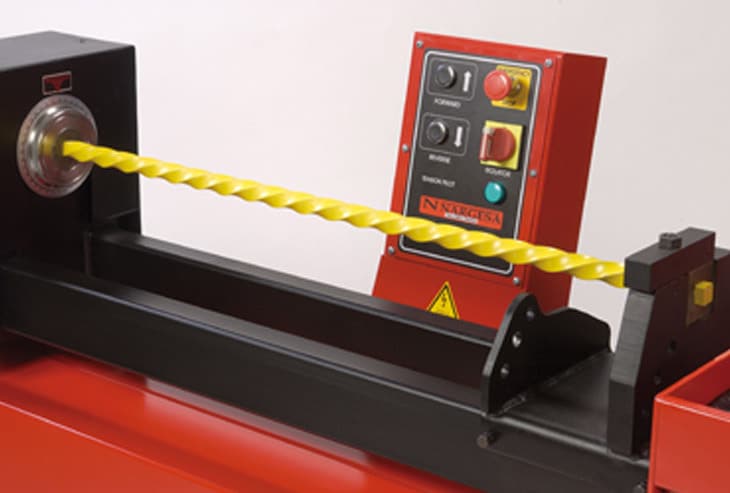

Twisting Bar – Rectangle:50 x 10mm
Twisting Bar – Square:40mm

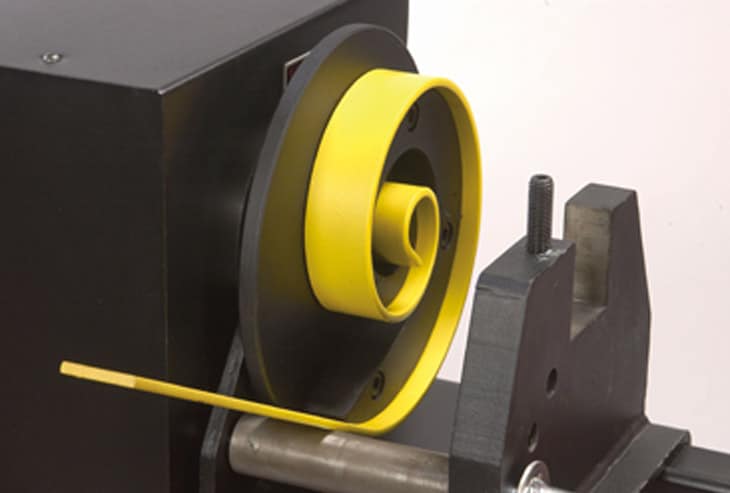

Scrolls – Rectangle40 x 10mm to 120 OD / 40 x 10mm to 220 OD / 50 x 10mm to 450 OD
Scrolls – Square:16mm to 220 OD / 25mm to 450 OD

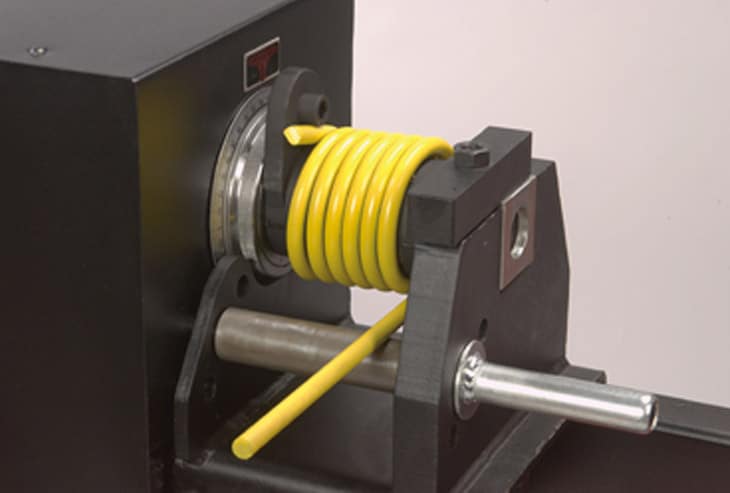

Circles – Square:20mm
Circles – Round:20mm
Bar Bending – Rectangle:50 x 10mm
Bar Bending – Square:20mm
Bar Bending – Round:20mm

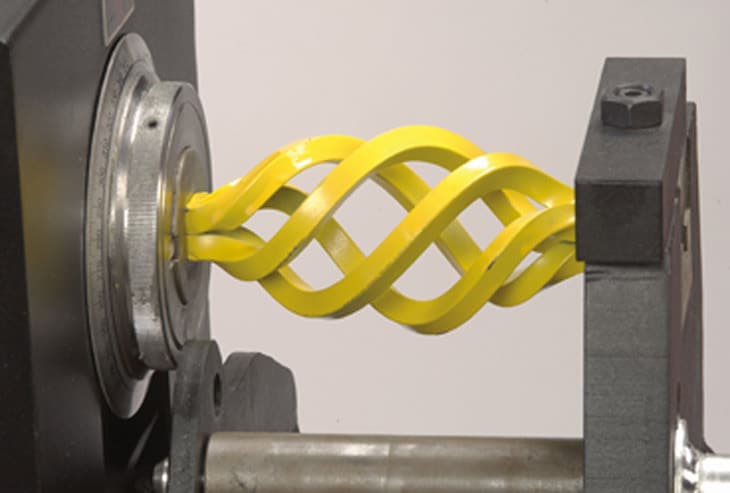

Rope Braiding – Square:4x 20mm
Rope Braiding – Round:4x 20mm
Operation:Automatic
Motor: Kw4.0 Kw
Length:2220mm
Width:980mm
Height:1280mm
Weight:1300 Kg

Features

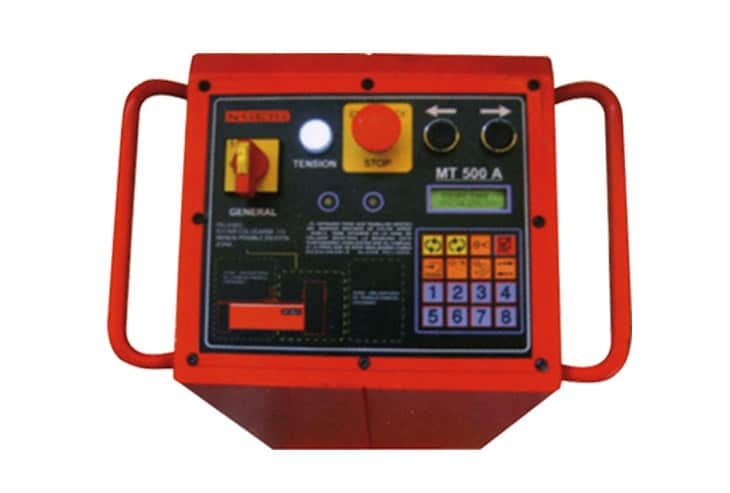

* Programmable control for job repeat-ability
* Heavy duty construction.
* Rapid cold-bending of round, square and flat bar.
* Quick change tooling.
