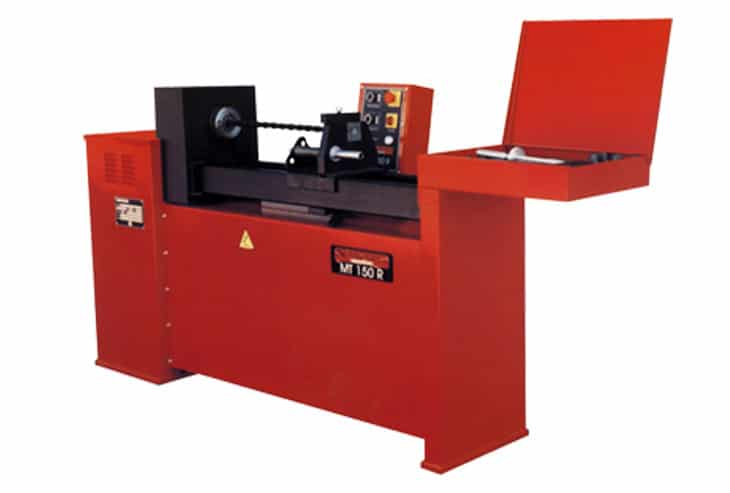

Nargesa MT150R Scrollmaker 415V

The Nargesa twisting and bending machines have been designed to coldbend and twist components for the decorative and ornamental ironwork industry. A comprehensive tooling package to enable bar twisting, bar bending and rope braiding is standard with each machine. Optional attachments for tube bending and bow top fencing are available. The quick tool change system ensures minimum down time providing maximum efficiency. The programmable models ensure job repeat-ability for consistent bending and twisting requirements.

Request a Quote





Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Nargesa Scrollmaker 415VNargesa Scrollmaker 415V
Nargesa Scrollmaker - TwistingNargesa Scrollmaker - Twisting
Nargesa Scrollmaker - ScrollsNargesa Scrollmaker - Scrolls
Nargesa Scrollmaker - CirclesNargesa Scrollmaker - Circles
Nargesa Scrollmaker - BendingNargesa Scrollmaker - Bending
Nargesa Scrollmaker - BraidingNargesa Scrollmaker - Braiding
Twisting Bar – Rectangle:35 x 8mm
Twisting Bar – Square:20mm
Scrolls – Rectangle40 x 10mm to 120 OD / 40 x 10mm to 220 OD
Scrolls – Square:16mm to 220 OD
Circles – Square:16mm
Circles – Round:16mm
Bar Bending – Rectangle:40 x 10mm
Bar Bending – Square:16mm
Bar Bending – Round:16mm
Rope Braiding – Square:4x 10mm
Rope Braiding – Round:4x 10mm
Operation:Manual
Motor: Kw0.37 Kw
Length:1740mm
Width:650mm
Height:1055mm
Weight:235 Kg

* Heavy duty construction.
* Rapid cold-bending of round, square and flat bar.
* Quick change tooling.
